Title: Biology 102


1

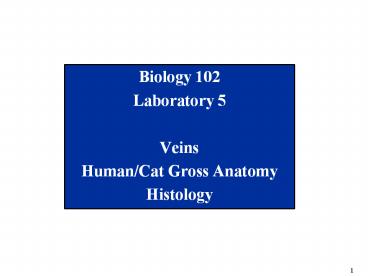

  • Biology 102
  • Laboratory 5
  • Veins
  • Human/Cat Gross Anatomy
  • Histology

2
Review of vessels
3
Review of vessels
4
Review of vessels
5
Review of vessels
6
Review of last labs vessels
7
Review of last labs vessels
8
Review of last labs vessels
9
Review of last labs vessels
10
Review of last labs vessels
11
Review of last labs vessels
12
Objectives for Lab 5
  • Identify the veins listed below in a human model
    or photograph of a human.
  • Identify the veins listed below on a dissected
    cat or photograph of a cat.
  • Describe the layers/tunics and histological
    characteristics of veins.
  • Trace the path of a drop of blood through the
    arteries AND veins, including the heart and
    pulmonary circulation.

13
Comparison of Walls of Arteries and Veins
Smooth muscle of the tunica media in both
arteries and veins is innervated by the
sympathetic nervous system.
Figure from Holes Human AP, 12th edition, 2010
14
Major Vessels of the Venous System
Figure from Holes Human AP, 12th edition, 2010
15
Major Veins of the Brain, Head, and Neck
External jugular v. drains blood from face,
scalp, and superficial neck regions





Figure from Holes Human AP, 12th edition, 2010
16
Major Veins of the Brain, Head, and Neck
Figure from Martini, Anatomy Physiology,
Prentice Hall, 2001
17
Location of Internal and External Jugular V.
Figure from Anatomy Physiology Revealed, 2010
External Jugular v.
Internal Jugular v.
SCM
18
Major Veins - Upper Limb and Shoulder




Median cubital vein is often used to draw blood
(venipuncture)

(deep)

(superficial)

(superficial)





Figure from Holes Human AP, 12th edition, 2010
19
Major Veins - Upper Limb and Shoulder
Note the deep veins (radial, ulnar, brachial) and
the superficial veins (cephalic, basilic, median
cubital) of the upper limb
Figure from Martini, Anatomy Physiology,
Prentice Hall, 2001
20
Veins That Drain the Abdominal Viscera








Figure from Martini, Anatomy Physiology,
Prentice Hall, 2001
21
Main Veins of the Lower Limb and Pelvis






Figure from Holes Human AP, 12th edition, 2010


22
Cat Blood Vessel Dissection Schedule
  • Blood vessel labs
  • Dissection 1(1st lab - arteries above diaphragm
    and upper limb)
  • Preparing the cat (see page 706 in Marieb)
  • Cardiovascular (pp. 733-741 in Marieb)
  • Dissection 2 (last lab - arteries below diaphragm
    and lower limbs)
  • Arteries below diaphragm (see Marieb)
  • Dissection 3 (today - all veins review arteries)
  • Veins (see Marieb)

23
Reminders for Cat Dissection
  • You must wear gloves and goggles for this lab!
  • ABSOLUTELY NO FOOD OR DRINK
  • Be EXTREMELY careful when using the scalpels
  • Keep your index finger on the top of the blade
  • Be careful not to inadvertently cut structures
  • Use a blunt probe, or your gloved fingers to
    dissect away tissue. Use the scalpel ONLY for
    initial cutting. Proceed S-L-O-W-L-Y.
  • Discard scraps/liquid into the appropriate
    container
  • Gloves, paper towels, plastic bags -gt regular
    trash

24
Continuing with Cat Dissection
  • Work in groups you formed for dissection of
    arteries
  • Get some paper towels and keep them at your lab
    table
  • Get your instruments and dissecting tray (large
    trays in the front of the lab) ready
  • Get a cat and cut open the sealed bag but dont
    discard the fluid youll be using this cat all
    semester and replacing the fluid each time.
  • Let the cat out of the bag - again! ?
  • You should be able to locate all the veins listed
    in your Lab Guide

25
Right external jugular vein
Left common carotid artery
Right common carotid artery
Right subclavian vein
Left external jugular vein
Left subclavian vein
Right brachiocephalic vein
Right subclavian artery
Left brachiocephalic vein
Left subclavian artery
Superior vena cava
Brachiocephalic artery
Aorta
Right atrium of heart
Left ventricle of heart
Right ventricle of heart
26
External jugular veins
Transverse jugular vein
27
Brachiocephalic artery
Left subclavian artery
Aortic arch
Ascending aorta
Pulmonary trunk
Right ventricle
Left atrium
Descending aorta
Left ventricle
Esophagus
Diaphragm
28
Hepatic portal vein
Gastrosplenic vein
Duodenum
Pancreas
Superior mesenteric vein
Spleen
Inferior mesenteric vein
29
Celiac trunk
Superior mesenteric artery
Left adrenolumbar artery
Descending aorta
Renal vein
Gonadal artery
Inferior vena cava
Inferior mesenteric artery
30
Celiac trunk
Inferior vena cava
Descending aorta
Superior mesenteric artery
Left renal vein
Colon
Left renal artery
Left gonadal (ovarian) vein
Kidney
Left ureter
Left gonadal (ovarian) artery
Inferior vena cava
Left ovary
Left iliolumbar artery
Left iliolumbar vein
Uterine horn
31
Inferior vena cava
Left adrenolumbar vein
Renal vein
Left gonadal vein
Right gonadal vein
Iliolumbar vein
Common iliac vein
Right femoral vein
32
Inferior vena cava
Left kidney
Right kidney
Renal vein
Descending aorta
Gonadal artery
Left gonadal vein
33
Inferior vena cava
Descending aorta
Internal iliac artery
Left femoral vein
External iliac artery
Left femoral artery
34
Inferior vena cava
Iliolumbar vein
Left common iliac vein
Right common iliac vein
Left internal iliac vein
Right internal iliac vein
Right external iliac vein
Left external iliac vein
Femoral vein
Great saphenous vein
Deep femoral vein
Median sacral vein
35
Things you should do in lab today
  • Examine the vein slide under the microscope
  • Name/identify the layers of the vein
  • Describe how each layer (tunic) is constructed
  • Refer to Mariebs Lab Manual Figure 32.2 right
    side
  • Perform cat dissection of veins listed for Lab 5.
    See Mariebs Lab manual pp. 737-741 for
    instructions.
  • Review human veins listed for Lab 5
  • Complete Lab 5 Assignment on a separate sheet of
    paper, put your name on it, and hand it in today.
  • Use figures 32.8 32.15 as a guide

36
Next Lab
  • Blood Pressure
  • Read ahead Exercise 33 in Mariebs Lab Manual
  • Review the handout (available online)
  • ECG (EKG)
  • Read ahead Exercise 31 in Mariebs Lab Manual
  • Review the handout (available online same one
    as for BP)
  • Wear comfortable clothes/shoes since youll be
    exercising!
