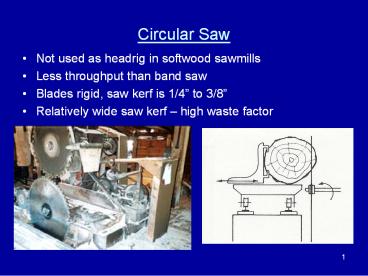

Circular Saw

1
Circular Saw

• Not used as headrig in softwood sawmills
• Less throughput than band saw
• Blades rigid, saw kerf is 1/4 to 3/8
• Relatively wide saw kerf high waste factor

2
Circular saw
3
Circular saw video
4
Waste Factor Comparison
Band Saw
Circular saw
5
Sawmill generic overview
Log yard
Bucking
Debarker
Headrig
Cants
Side boards
Gang Saw
Trimmer
Edger
Sorter, Stacker
6
Gang Sawing
cant
gang saw blades
7
Gang saws

• Fixed, oscillating blades
• Little flexibility
• Intermediate kerf
• Single pass
• High throughput

8
Gang saws
9
Log breakdown patterns
1. live sawing 2. cant
sawing 3. sawing for grade
4 5. sawing for edge grain
6. dimension lumber
10
(No Transcript)
11
Optimization software
12
Scanning of the log to optimize the yield
Bottom profile
Mid-length profile
1x4 14 2
Top profile
2x4 16 2
2x4 16 2
Product mix selected
2x4 16 2
2x4 16 2
2x4 16 2
1x4 16 2
13
Sawmill optimization
(Halco Software Systems)
14
Sawmill generic overview
Log yard
Bucking
Debarker
Headrig
Cants
Side boards
Gang Saw
Trimmer
Edger
Sorter, Stacker
15
Wane
http//www.wdscapps.caf.wvu.edu/lumberrtk/
http//www.decks.com/article197.aspx
16
6. Edger

• The edger will rip the rough sawn board to width
  and remove the wane and other defects. Uses
  circular saws.

wane
wane
saw cuts
17
Edger optimizer
18
7. Lumber Grading - Trimming
19
Lumber Grading

• Different grades systems for hardwoods and
  softwoods
• Different grades depend mainly on
• natural defects
• size, number and location of knots
• size, location and type of stain or rot
• amount of wane
• machine defects
• skip
• snipe

20
Lumber Grading
21
Trimming

• The trim saw is used to cut the boards to length

Lumber is trimmed to lengths of 2 foot
multiples. Uses circular saws.
22
Trimming
23
Multi-saw trimmer
24
Sawmill generic overview
Log yard
Bucking
Debarker
Headrig
Cants
Side boards
Gang Saw
Trimmer
Edger
Sorter, Stacker
25
The Green Chain
26
Descrambler
27
J-bar sorting

• The lumber is scanned and sorted into bins
  depending on
• species, grade, dimensions

28
Multiple sort bins
29
Stacking
30
Drying kilns
31
Reasons for drying lumber

• Increase strength of lumber
• Reduces later dimensional changes
• Increases decay/insect resistance
• Decreases weight of lumber

32
Drying
Sticker
Lumber

• Drying factors
• Temperature
• Relative humidity
• Air circulation

33
Planermill
Planermill
Kilns
Sawmill
Logyard
34
Planer
35
Planer
36
Planer
4 knifes per planer head
24 knifes per planer head
37
Waste Management

• Trim ends
• Chips
• Sawdust
• Planer shavings
• Bark
• Hog fuel
