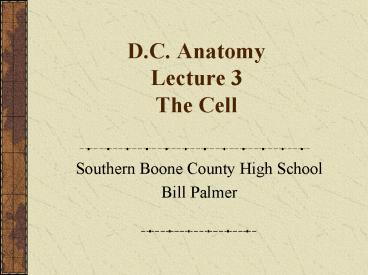

D.C. Anatomy Lecture 3 The Cell

1
D.C. Anatomy Lecture 3The Cell

• Southern Boone County High School
• Bill Palmer

2
The Basics

• Human has 75 Trillion Cells
• At least 200 types of cells
• Cells form the basis of organization for the
  human body

3
(No Transcript)
4
The Basics of Cells

• All cells have these common characteristics
• Respire and grow
• Eliminate waste
• Maintain a shape
• Undergo cell division
• Perform a specific function

5
The Basics of Cells

• The study of cells is called Cytology

6
The Basics of CellsFunctions

• Covering-Epithelial Cells
• Lining-Epithelial Cells
• Storage-Fat Cells
• Movement-Muscle Cells
• Connection-Ligaments

7
The Basics of CellsFunctions

• Defense-White Blood Cells
• Communication-Nerve Cells
• Reproduction-sperm and oocytes

8
100 m
blue whale
10 m
human
1 m
10 cm
chicken egg
1 cm
1 mm
frog egg
100 µm
plant and animal cells
10 µm
cell nucleus
most bacteria
mitochondria
1 µm
smallest bacteria
100 nm
largest virus
10 nm
proteins
1 nm
lipids
atoms
0.1 nm
9
Main Regions
nucleus
cytosol
cytoskeleton
other organelles
Cell membrane
Eukaryotic cell
10
CONTROL CENTER (nucleus)
ASSEMBLY LINE (endoplasmic reticulum)
STRUCTURE (cytoskeleton)
WORK BENCHES (ribosomes)
DISTRIBUTION CENTER (Golgi complex)
POWERHOUSES (mitochondria)
CLEANING CREW (lysosomes)
SECURITY GATE (cell membrane)
11
(No Transcript)
12
The Nucleus(Control center)

• Contains most of the genes that control the
  eukaryotic cell (DNA)
• Generally the most conspicuous organelle

13
Ribosomes (work benches)

• Site where cells make proteins
• 2 types (different kinds perform different tasks)
• Free Ribosomes (within cytosol)
• Bound Ribosomes (Rough Endoplasmic Reticulum)

14
Ribosomes and the Rough Endoplasmic Reticulum
15
Endoplasmic Reticulum(assembly line)

• Interconnected membranes that form channels and
  canals within the cytoplasm
• Move substances from one part of the cell to
  another

16
Endoplasmic Reticulum(assembly line)

• 2 types
• Interconnected membranes that form channels and
  canals within the cytoplasm
• Smooth ER (site of lipid synthesis and
  detoxification)
• Rough ER

17
(No Transcript)
18
Golgi Complex(Distribution Center)

• modifies, sorts, and ships proteins

19
Perixosomes

• Specific enzymes that break down harmful
  substances
• Convert H2O2 to H2O

20
from RER
cisternae
cisternal spaces
Golgi complex
vesicle
to plasma membrane
to cytosol
for export out of cell
P
P
1. Side chains are edited. 2. Vesicles formed
for protein transport.
21
(No Transcript)
22
Cell membrane(security gate)

• Fluid (moving) mosaic (made of multiple proteins)
  model

23
Cell membrane(security gate)

• Major Functions
• Keeps stuff in
• Keeps stuff out
• Transport
• Communication

24
Lysosomes(Cleaning Crew)

• Digestive compartments used to hydrolyze
  proteins, polysaccharides, fats and nucleic acids.

25
Mitochondria(Powerhouse)

• Use Oxygen to convert food energy (from sugars,
  fats, and other fuels) to ATP (used for our
  bodys energy needs)

26
(No Transcript)
27
The Cytoskeleton( Internal Scaffolding)

• Protein fibers
• give cells shape
• anchor organelles
• allow movement

28
Functions of Microtubules

• Movement
• Cilia
• Flagella

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
Clinical View

• From time to time, we will discuss some of the
  diseases and conditions and how they are related
  to anatomy.
• Some of these can be disturbing.

33
Clinical View-Tay-Sachs

• Tay-Sachs Disease
• Caused by missing genes in Lysosome
• Lipid (fat) accumulates within cell
• Infants appear normal
• Paralysis, blindness, deafness, appear by 2
• Death by 4
• No cure

34
Clinical View-Tay-Sachs
35
Clinical View-ALD

• Adrenoleukodystrophy (ALD)
• Caused by missing membrane in peroxisome
• Peroxisome cannot break down long chain fatty
  acid
• Affects nerve cells so they can not transmit
  impulses

36
Clinical View-ALD

• Several forms-affects boys 4-10
• First signslethargy, weakness, dizziness, low
  blood sugar, dark skin
• Later signsslow heart rate, paralysis,
  blindness, loss of reflex, paralysis, death
• No cure, but no fat diet can help.
• Movie- Lorenzos Oil based on this disease
• Lorenzos Oil is oleic acid/rapeseed reduces long
  fatty acid molecules

37
Clinical View-ALD
38
Clinical View-MELAS

• Mitochondrial myopathy (weak muscles)
• Encephalopathy (brain disorder)
• Lactic Acidosis (lactic acid in muscles)
• Stroke-(impaired circulation in brain)
• Genetic problem in mitochondria
• Mitochondria cannot help make protein
• First presents with a stroke (4-15 yrs old)
• No cure, drugs only slightly effective

39
Clinical View-MELAS
40
Clinical View-Terms

• Anaplasia -loss of cell function
• Carcinogen -substance that causes cancer
• Dysplasia -cells and tissue that are not normal
• Hyperplasia -excessive cells
• Hypertrophy -increase in size of an organ

41
Clinical View-Terms

• Malignant tumor -abnormal cell growth that
  invades surrounding tissue
• Metaplasia -transformation of one cell type into
  another
• Metastasis -movement of malignant cells into
  another part of the body
• Mutagen -something that causes a change in
  genes-may cause cancer

42
Clinical View-Terms

• This scar is abnormally large.
• What are some terms that might be used to
  describe the scar?

43
Clinical View-Terms

• This scar is abnormally large.
• What are some terms that might be used to
  describe the scar?
• Dysplasia
• Hyperplasia

44
Clinical View-Terms

• These photos are from a 28 year old Nepalese man.

• What terms might be used to describe the
  condition?

45
Clinical View-Terms

• These photos are from a 28 year old Nepalese man.

• What terms might be used to describe the
  condition?
• Hypertrophy

46
Clinical View-Terms

• These lesions show abnormal cell growth that has
  invaded surrounding tissue.
• What terms might be used to describe the
  condition?

47
Clinical View-Terms

• These lesions show abnormal cell growth that has
  invaded surrounding tissue.
• What terms might be used to describe the
  condition?
• Malignant tumor
• Metaplasia
• Metastasis

48
Clinical View-Terms

• What terms might be used to describe the
  cigarette? What if it affected your genes?

49
Clinical View-Terms

• What terms might be used to describe the
  cigarette? What if it affected your genes?
• Carcinogen
• Mutagen

50
Wrap up

• Draw a eukaryotic animal cell similar to page 77
  and label all parts. Cell should be in color, on
  white paper, and 3-D.
• Know three diseases that are caused by organelles
  not functioning properly. (p88)
• Make a chart showing the organelles and their
  function
