PowerPoint Presentation - The Birth of a Unique Spirit Yacht

1

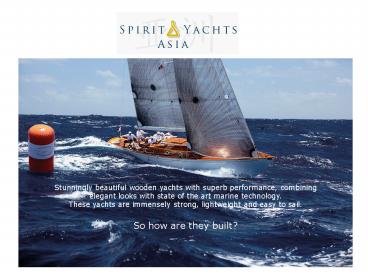

Stunningly beautiful wooden yachts with superb
performance, combining elegant looks with state
of the art marine technology. These yachts are
immensely strong, lightweight and easy to
sail. So how are they built?
2
The Birth of a Unique Spirit Yacht
3
Hull frames are set onto a floor jig
4
Bow, stern posts and bulkheads are positioned
5
Planking is laid over the frames to form the hull
6
The wood planks are glued and sealed with epoxy
resin
7
A further diagonal layer is epoxy laminated to
give immense strength
8
The wood-epoxy hull is light, solid, and strong
9
The hull is sanded and shaped
10
The hull is faired to produce a perfectly uniform
hull shape
11
The hull is turned over for the next stage
12
Light and strong hull, ready for internal work
and decking
13
The hull is moved back in the workshop
14
Deck frames and hatches are then installed
15
Inside woodwork is fitted to the owners layout
16
Electrical, power and plumbing systems are fitted
17
The cockpit is installed
18
Rubbing strakes and gunwales added
19
Teak decks are laid
20
Carpentry tailor-made to fit clients designs
21
Deck hardware is installed
22
The hull is prepared for painting
