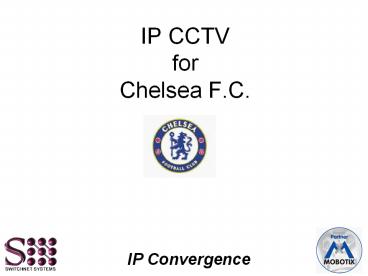

IP CCTV for Chelsea F.C.

1
IP CCTVforChelsea F.C.
2
The Presentation Team

• Dave Hancock MD Switchnet Systems
• Gregg Pike Director Switchnet Systems
• Mark Eley - Technical Manager Switchnet
  Systems
• Mike Lewis UK Ireland Business Dev.
  Manager Mobotix
• Martin Morris - Sales Manager Mayflex Ltd.

3
The Tendering Group

• Switchnet Systems Ltd
• Management / Design / Implementation /
  Commissioning
• First/ Second Line Support
• Mayflex Ltd
• Distribution (largest and Recently Named Best
  Mobotix Distributor in World)
• Third Line Support
• Mobotix
• Market Leaders in IP CCTV
• Manufacturer of cameras/ software
• Codestuff

4
Switchnet Systems Ltd

• Founded in 1996 Private Company
• Total IP Solutions Network Integrator
• Full Accreditation for all Products sold
• Company Ethos-
• Large enough to cope Small enough to care
• Associated with Chelsea F.C. since 1997

5
Products/Services Offered

• 1- All forms of cabling systems
• 2- IP based Switches/Routers/Gateways Wireless
  devices
• 3- Voice Over IP (VoIP)
• 4 - IP CCTV Security

1 2 - Already deployed extensively for Chelsea
FC.
3 -Already discussed for possible future
deployment
4 - Ready to go!!
6
Track Record

• 11 years designing/implementing/supporting/ CFC
  networks
• Consistently delivered small and large deployment
  projects on time, within budget.
• Majority of staff have extensive knowledge of CFC
  stadium, staff and processes
• Fast reactions during emergency situations
• Constantly reviewing/advising on new technology

7
System Solution
8
MOBOTIX SOLUTION
9
MOBOTIX

• MOBOTIX founded in 1999 by Dr. Ralf Hinkel.
• Private company.
• Floated on Germany stock market 10/2007
• Based in Kaiserslautern, Germany
• 130 employees.
• 06/07 23.6 Million Euro Turnover
• Approx. 52 growth compared to the previous
  fiscal.
• Distributors and partners in more than 70
  countries.

100,000 MOBOTIX cameras at work around the
world.
10
The Difference
11
Resolution comparisons
12
Multi Mega Pixel

• 3 MP images less cameras
• Cropping within camera reduces file storage size
  and bandwidth

13
MXCC Site Map
14
Rapid Video Wall
15
Rapid Video Wall

• Is a software based product which runs on a
  standard pc
• Ability to display IP streams from various
  manufacturers.
• Rapid Videowall offers the ability to display
  MPEG 4, MJPEG, MXPEG and JPEG 2000 compressed
  streams at the same time with supreme CPU
  utilisation.
• Each license supports 25 streams of video that
  can be displayed from 1 to 4 screens.
• Managed Via Web Services
• Operates as a Standalone Solution
• Easily Integrated to Third Party Management
  Suite

16
(No Transcript)
17
(No Transcript)
18
PC Specification

• Rapid VideoWall extracts maximum performance from
  PC. Choose PCs optimized for high performance
  video display tasks.
• Typical Rapid Videowall PC
• Quad Head DVI/VGA output
• Intel Core2 Duo processor
• 4GB DDR2 RAM
• 250GB SATA hard drive
• Dual 1Gb/100/10 Ethernet NIC
• XP Pro SP2 operating system
• .Net Framework 2.0
• Direct-X 9.0 3D rendering

19
Main Storage Solution
20
Storage Solution

• Large amounts of storage required approx 60
  TB!
• Existing Chelsea Storage Netapp
• Propose to bolt-on additional storage
• All installation/commissioning to be carried out
  by Netapp .
• New hardware to be seamlessly integrated into
  existing infrastructure and support contract.

21
Police Matchday Monitoring Recording
22
Police Matchday Monitoring
23
Police Recording

• Police control monitor screen output is recorded
  to Hard Disc
• Content of Hard Disk then written to DVD
• DVD taken for off-site storage

24
UPS Solution
25
UPS Solution

• CCTV system to remain operational for 3 hour IF
  power failure occurs
• All cameras use PoE (power over ethernet)
• APC Smart UPS 2200VA units to be installed in all
  comms racks cameras connect back to.
• APC Smart UPS 3000VA units to be installed in
  Police Cabin for matchday hardware.

26
System Deployment Support Options
27
System Deployment

• Project Manager Gregg Pike
• Installation team Assign Supervisor/ Engineers
• Liaise Discuss final locations of Cameras with
  Chelsea Security Team
• Install / Configure / Test pilot scheme
• Install / Configure Commission total system
• Install Commission MX Control Centre and video
  wall.
• Project duration is estimated at 24 weeks
  (Subject to all cabling being in place)

28
System Support

• Help Desk 24 x 7 support UK Based
• Onsite Engineer 1 Day / week
• Onsite Engineer Matchday if required
• Remote access and diagnostics
• All hardware covered by minimum 1 year
  Manufacturers warranty
• Mobotix Cameras 2 Year next business day
  advance replacement
• APC UPS 2 Year repair or replace
• Dell Machines Monitors - 3 Year next business
  day advance replacement or repair
• Main Storage Netapp to confirm
• Epiphan Recorders 1 year manufacturer warranty

29
Support Options

• Silver Business hours telephone and email
  support
• On-Line ticketing support
• Next business day advance replacement
• Gold All of the above
• Next business day engineering response
  (Upgradeable to same day 4hr under the PLUS
  scheme)
• Platinum All of the above
• 24x7 Telephone and e-mail support
• Dedicated On-Line ticketing system
  (ChelseaSecurity_at_Switchnetsys.com)
• Dedicated emergency response number - (07770
  231 800)
• 8 hour engineering response (Upgradable to 4 hour
  under the PLUS scheme)
• Or any combination of above!

30
Chelsea Staff Training

• Mobotix to provide Initial 1 day training of MX
  CC free of charge
• Course to be held at Stamford Bridge
• Other Mobotix courses available in the UK
• All presented by Mobotix qualified trainer

31
Reference Sites

Parc des Princes stadium
Birds-Eye Foods
Coventry City Airport
32
Future Possibilities

• Cobham Training ground
• Dual surveillance local / Stamford Bridge
• Players Houses / Gated Communities
• Controlled from Stamford bridge
• Access Control integration
• VoIP - SIP

33
(No Transcript)
34
In Summary

• Mobotix Market leaders in IP CCTV

• Switchnet systems Ltd Proven level of service

• The Solution
• Simple
• Scalable
• Flexible

Right for Chelsea F.C.!
35
