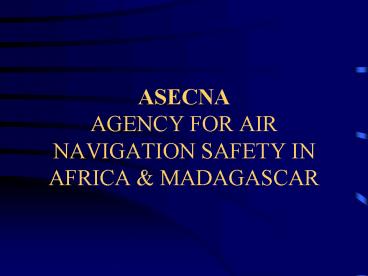

ASECNA AGENCY FOR AIR NAVIGATION SAFETY IN AFRICA

1
ASECNAAGENCY FOR AIR NAVIGATION SAFETY IN AFRICA
MADAGASCAR
2
AGENCY FOR AIR NAVIGATION SAFETY IN
AFRICA MADAGASCAR (ASECNA)

• France
• GABON
• MADAGASCAR
• MALI
• MAURITANIA
• NIGER
• SENEGAL
• TOGO

• BENIN
• BURKINA-FASO
• CAMEROON
• CENTRAL AFR REP
• CHAD
• CONGO BRAZZA
• COTE D IVOIRE
• EQUAT. GUINEA

3
ORGANIZATION
4
16 millions sq.km 6 FIRs /5 FIC
ASECNA
FIR NIAMEY
FIR NDJAMENA
FIR DAKAR
FIR BRAZZAVILLE
FIR DAKAR OCEANIC
Agence pour la Sécurité de la Navigation Aérienne
en Afrique et à Madagascar Siège Social  32-38
Av. Jean Jaurès DAKAR B.P. 3144 Tél. 23.10.40 -
Fax 23.46.54 Bénin-Burkina-Cameroun-Centrafrique-
Congo-CôtedIvoire-France-Gabon-Guinée
Equatoriale-Madagascar-Mali-Mauritanie-Niger-Sénég
al-Tchad-Togo
FIR ANTANANARIVO
5
SERVICES

• ATS
• COMMUNICATIONS (FIXE/MOBILE)
• FLIGHT INSPECTION
• FIRE FIGHTING
• ENGINEERING

6
RESSOURCES

• AERONAUTICAL FEES (LANDING EN ROUTE)
• MEMBER STATES CONTRIBUTIONS ON THEIR NAT L
  ACTIVITIES ENTRUST TO ASECNA
• LOANS

7
COMMUNICATIONS

• VHF NETWORK EXTENSION FOR MORE CONTROLLED
  AIRSPACE
• SATCOM FOR AIR TRAFFIC CONTROL
• AERONAUTICAL TELECOM NETWORK (ATN)
• HF / DL - SATELLITE BACK UP

8
NAVIGATION

• GROUND BASED EQUIPMENTS IN CONTRIBUTION TO LOCAL
  OR WIDE AREA AUGMENTATION SYSTEMS

9
SURVEILLANCE

• SSR /NDJAMENA/BRAZZAVILLE
• AUTOMATIQUE DEPENDANTE SURVEILLANCE (SITA / AIR
  AFRIQUE / COLLINS/ANAM)
• AIR SITUATION DISPLAY FOR NON ADS FLIGHT
• ADS/SSR
• ADS-B
• SURFACE MVT GUIDANCE

10
ATM 1/2

• AUTOMATIC FLIGHT DATA PROCESSING
• CONFLICT DETECTION AND CLEAR
• FLEXIBLE AIR ROUTES (CONTINENTAL/OCEANIC
  ATL-INDIAN)
• DARPs
• CPDLC
• D-FIS

11
ATM 2/2

• REDUCED UPPER AIRSPACE
• AREA TRAFFIC FLOW MANAGEMENT
• HARMONIZATION OF TERMINAL AREA (TMAs) LIMITS
• SUB REGIONAL ATM SYSTEMS INTEGRATION

12
AVIONICS

• AFI / LOW DENSITY TRAFFIC
• FULL AUTONOMOUS AVIONICS ON BOARD OVERSEAS INTL
  AIRLINES
• LACK OF EQUIPMENT ON MAJOR DOMESTIC OR REGIONAL
  OPERATORS
• B-RNAV
• FAIR COST CNS/ATM SYSTEMS (DL/ADS/GNSS) VDL MODE
• MODULAR BASIS

13
ASECNAS CNS/ATM IMPLEMENTATION COST

• ACQUISITION/INSTALLATION/OPERATION (2000/2010)
• COMMUNICATION 50 millions US
• NAVIGATION 33
• SURVEILLANCE 42
• ATM 68
• TRAINING 16
• INFRASTRUCTURE 66
• TOTAL 276

14
COST/BENEFITS ANALYSIS
15
FINANCING ASECNAS CASE STUDY

• DEVELOPMENTS/DEMONSTRATIONS TRIALS
• STOCK FUNDS
• OPERATIONS INFRASTRUCTURE
• TRADITIONAL EUROPEAN AFRICAN FINANCIAL
  INSTITUTIONS

16
EXISTING INFRASTRUCTURE

• AFTN MODERNIZATION
• INTERCONNECTION OF COMMUNICATIONS NETWORK
• VHF COVERAGE /DATA LINK X 25 PROTOCOL
• SADIS IMPLEMENTATION

17
EXISTING INFRASTRUCTURE

• LADGPS TRIALS IN DAKAR
• GPS /PRIMARY/SUP. MEAN
• WGS 84
• GNSS IMPLEMENTATION IN AFI
• STUDY FOR EGNOS TEST BED
• EGNOS/WAAS INTER OPERABILITY TESTS

18
EXISTING INFRASTRUCTURE

• ADS IN AFI WITH RKA / COLLINS /SITA
• ENHANCEMENT TO FANS- /1/A

19
EXISTING INFRASTRUCTURE

• ATM INTEGRATION AND HARMONIZATION / 40 YEARS

20
TRAINING

• 15 SEMINARS OF SENSIBILIZATION
• TRAINAIR PROGRAMM

21
