Virtual Reality in Chemistry

1

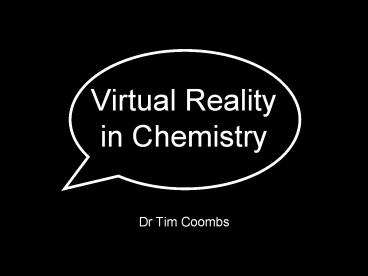

Virtual Reality in Chemistry

• Dr Tim Coombs

2
A short science lesson(you lucky people!)
3
Mystery Object
4
(No Transcript)
5
Any better?
6
In place of pencil and paper, the main working
tools were a set of molecular models resembling
the toys of preschool children. - James Watson,
The Double Helix
7
Crick and Watson
8
So, why use VR?
9
80 µm
10
Science Space

• Joint venture between George Mason University,
  University of Houston and NASA.
• 3 VR worlds set up to teach and explore different
  areas of science.
• Newton World (kinetics and dynamics).
• Maxwell World (electrostatics)
• Pauling World (chemistry)
• http//www.virtual.gmu.edu/

11
Pauling World
12
Evaluation - VR vs. 2D

• Maxwell World evaluated against EMF.
• Students tested post-lesson and 5 months later

• Results -Concepts - higher in VR post lesson,
  similar 5 months later.2-D understanding -
  similar for VR and EMF in both instances.3-D
  understanding - higher for VR in both instances.

13
Exploring using CAVE

• CAVE Cave Automatic Virtual Environment.
• Allows scientist to explore how molecules
  interact.
• Simulation can be stopped at any point for
  further exploration.
• Gives new perspective and appreciation of
  molecules.

CAVE at Argonne National Laboratory
14
New drug treatments

• Used to develop new treatments for Chagas
  disease.
• Current drugs kill parasites but are toxic to
  humans.
• Using CAVE researchers modified existing drugs
  and looked at the effects.

15
Modelling Proteins
16
Examining HIV
17
Sculpt

• Run using standard computer hardware.
• Much more accessible than CAVE based simulations.
• Users pull molecules about to see how they
  interact.
• The whole molecule is continually reshaped to
  lowest energy configuration.

18
Conclusions

• Virtual reality is a useful tool for modelling
  things that are too small to be seen.
• Scientists can use VR to get more of a feel of
  how molecules interact.
• Useful as a teaching tool.
• Ultimately VR can be used to advance scientific
  knowledge that would be able to improve our lives
  and hence augment reality.
• Limitation - Quantum Mechanics!!

19
