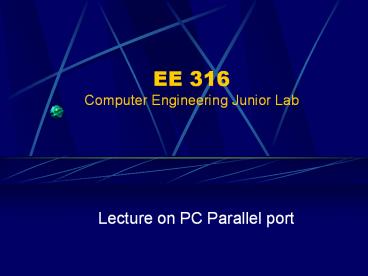

EE 316Computer Engineering Junior Lab

• Lecture on PC Parallel port

2
The IEEE 1284 parallel interface standard

• Parallel ports are used for connecting a
  computer (host) to a printer or certain other
  peripheral devices over a parallel (eight bits of
  data at a time) physical and electrical
  interface.
• Parallel ports conform to the specifications
  of document of the Institute of Electrical and
  Electronic Engineers (IEEE) called IEEE Std
  1284-1994 Standard Signaling Method for a
  Bi-directional Parallel Peripheral Interface for
  Personal Computers, or IEEE 1284 for short.

http//whatis.techtarget.com/definition/0,,sid9_gc
i213469,00.html http//www.lavalink.com/fileadmin/
white_papers/ieee1284_parallel_ports.pdf
3
Modes of operation (The IEEE 1284 standard)

• Compatibility mode (Default Forward mode)
• Nibble mode (4-bit reverse mode)
• Byte mode (8-bit reverse mode)
• EPP mode (Enhanced Parallel Port mode)
• ECP mode (Enhanced Capability Port mode)

Forward Host to Peripheral Reverse Peripheral
to Host
Source http//www.lvr.com/files/ppc1.pdf
4
25 Pin D-sub or IEEE 1284-A connectors
http//www.lavalink.com/fileadmin/white_papers/iee
e1284_parallel_ports.pdf
5
36 Pin Centronics or IEEE 1284-B connectors
http//www.lavalink.com/fileadmin/white_papers/iee
e1284_parallel_ports.pdf
6
IEEE-1284 compliant Parallel Printer
CablesConnector Types
IEEE-1284 Printer Type A Connector (DB25)
This is the connector most commonly used as the
computers parallel port output. IEEE-1284
Printer Type B Connector (CN36) This is the
most commonly used connector for the end of the
cable that goes to the printer. IEEE-1284
Printer Type C Connector (HPCN36) This is a new
connector for the printer end of the cable.
http//www.ramelectronics.net/html/ieee-1284_print
er_cables.html
7
DB-25 Female D-type Connector (on the computer)

• 8 output pins accessed via the DATA Port
  (bidirectional)
• 5 input pins (one inverted) accessed via the
  STATUS Port (peripheral to HOST)
• 4 output pins (three inverted) accessed via the
  CONTROL Port (output only)
• The remaining 8 pins are grounded

http//www.doc.ic.ac.uk/ih/doc/par/index.htmlind
ex
8
(No Transcript)
9
Addressing

• Standard parallel port uses three contiguous
  addresses
• 3BCh, 3BDh, 3BEh (LPT1)
• 378h, 379h, 37Ah (LPT1, LPT2)
• 278h, 279h, 27Ah (LPT1, LPT2, LPT3))

• First Address -- Port base address (data
  registers)
• Second Address -- (base1) Ports status
  registers
• Third Address (base2) Ports Control Registers
• In our lab we have a PCI parallel card that uses
  the
• Following address
• DF18h, DF19h, DF1Ah

10
Parallel port output drive capabilities
The outputs of the data registers are filtered
through A 27 Ohm resistor and a 2.2 nF capacitors.
The numbers can vary substantially between
different port types. For fast transitions and
more drive currents it is best to use
Schmitt-trigger buffers/inverters at the
receiving end.
http//www.hut.fi/Misc/Electronics/circuits/lptpow
er.html
11
References
http//www.lvr.com/files/ppc1.pdf http//whatis.t
echtarget.com/definition/0,,sid9_gci213469,00.html
http//www.lavalink.com/fileadmin/white_papers/i
eee1284_parallel_ports.pdf http//www.doc.ic.ac.u
k/ih/doc/par/index.htmlindex http//www.epanora
ma.net/circuits/parallel_output.html http//www.h
ut.fi/Misc/Electronics/circuits/lptpower.html
