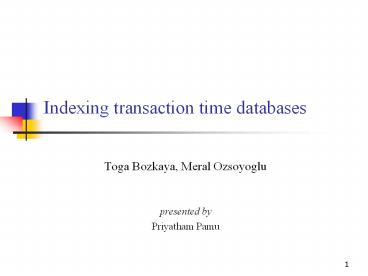

Indexing transaction time databases

1
Indexing transaction time databases

• Toga Bozkaya, Meral Ozsoyoglu
• presented by
• Priyatham Pamu

2
Overview

• The problem addressed
• Indexing time intervals of temporal objects
  assuming a record based storage model with
  object-versioning.
• Object-versioning
• Different versions of the same time-varying
  entity are kept linked to each other (by means of
  time-invariant key attributes in relational
  model, by using pointers in object-oriented data
  model).

3
Overview

• We consider a transaction time database with two
  states
• The past state contains the temporal data that
  has once been valid, but is not valid any more
  (i.e. historical data).
• We suggest to use IB-tree, AD tree, R trees
  depending on the application requirement.
• The current state contains only the data that is
  valid at the current time.
• We suggest to use a version of B-tree structure
  called Modified B-tree for indexing the current
  state.
• We can also use IB-tree structure indexing valid
  time intervals in an effective way.

4
Existing Temporal index structures

• Time-index
• AP-tree (Append-only tree)
• TP-index (Time polygon index)
• SR-tree (Segment R-tree)
• Snapshot Index
• windows indexing scheme

5
Temporal data model

• A temporal data model can support two types of
  time
• Transaction time data
• Bounded by the current time pt and the time when
  the database was initiated.
• Data is never deleted from a transaction time
  database, and the new data arrives in an
  append-only fashion.
• Valid time data
• Validity of some temporal entity may span into
  future - No upper bound
• Valid time databases are not append-only
  databases.

6
A Temporal Indexing Scheme

• Assumptions
• We assume a discrete time model in our scheme.
• The time points are mapped to natural numbers
  starting from 0 (time when database is initiated)
  to current time point denoted by the variable
  now.
• In a transaction database, all object versions
  with their transaction time intervals of the form
  a,now (altnow) belong to the current state of
  the database as they are currently valid.
• All other versions that have transaction time
  intervals of the form a,b (altb and bltnow)
  belong to the past state of the database as their
  validity had ceased at some point in the past.
• Transaction time databases are append-only
  databases where random deletions or insertions do
  not take place.

7
Temporal Indexing Scheme contd

• We denote a temporal object version as a 2-tuple,
  (I,V), where I is the transaction time interval
  of the object version V.
• Operations defined on a transaction time
  databases are
• Deletion If the current version v of an object o
  is to be deleted (ts,now,v) is deleted from
  the database and (ts,td,v) is inserted to the
  past state where td is the time of deletion.
• Insertion For insertions, all we do is create
  the initial version v of an object o and insert
  to the current state. (ts,now,v) is inserted to
  the current state where ts is the time of
  insertion.
• Updates In case of updates, we have to create a
  new most recent version (tu,now,v) of the
  object o. This new version is inserted into the
  current state and the old version (ts,tu-1,v)
  is migrated to the past state.

8
Figure for current state and past state.
9
Indexing the current state

• Features
• Unlike past-index, there are deletions as well as
  insertions to the current-index.
• Deletions are done when object versions migrate
  from the current state to the past state of the
  database.
• Insertions are done when new object versions are
  inserted into the database.
• For current-index, starting points of the
  transaction time intervals have to be indexed,
  because the finish points of all such intervals
  are the same (i.e. now). Hence we only need a 1-D
  index structure for indexing the current state.

10
Indexing the current state..

• Properties specific to the current-state.
• Insertions come ordered in starting time, and
  deletions are arbitrary.
• We exploit the above property to come up with a
  B like structure (i.e.MB -tree) that supposedly
  has a higher storage utilization which also
  directly affects the height of the structure and
  hence the search efficiency.

11
MB -tree

• MB-tree is simply a modified version of B-tree.
• MB-tree
• Insertions are done from the right end, and can
  handle deletions from anywhere in the tree.
• The nodes along the rightmost path of the tree
  can have as few as one child, and the rightmost
  leaf can have as few as one key.
• The deletion algorithm is same as it is in B
  tree.
• Depending on the distribution of the duration of
  the transaction time intervals, this structure
  may provide considerable improvement over the
  regular B-tree in both efficiency and storage.

12
MB-tree
13
Indexing the past state

• Three different indexing tree structures are
  proposed.
• Interval B-trees
• ADtrees
• One and two-dimensional R-trees.
• These index structures meet different
  requirements for different applications.
• In past state, we dont have any dynamic
  deletions other than vacuuming. It is an
  append-only database.
• Since IB -trees are similar to Interval trees,
  we discuss Interval trees first.

14
Interval-trees

• Interval-tree is a binary tree (AVL or Red-black
  tree...) that is augmented to support operations
  on a dynamic set of intervals.
• A node x of an Interval-tree contains an interval
  (intx), and the key of x is the starting point
  of that interval.
• An inorder tree walk of the data structure lists
  the intervals in sorted order by their starting
  points. In addition, each node contains the
  maximum finish point of the intervals stored in
  the subtree rooted at that node.
• Insertions and Deletions can be done in O(log2n).

15
A balanced interval tree figure
16
INTERVAL-SEARCH

• INTERVAL-SEARCH(T,I)
• (For a given interval Iis,if, find an
  interval that intersects with I in the
  interval-tree T.) (leftx and rightx stand for
  the left and right child of a node x)
• (1)xroot(T),
• (2) while x!NIL and I does not intersect the
  interval intx do
• (2.1) if leftx ! NIL and maxleftx gtis,
  then xleftx
• (2.2) else xrightx
• (3) Return x if it is not NIL.

17
Interval B-tree structure

• IB-tree is a direct generalization of the
  Interval-tree to a multi-way B-tree structure.
  It is basically a B-tree on the starting points
  of intervals where each node is augmented with
  the same kind of information as binary
  Interval-trees.
• Unlike in Interval-trees, internal nodes of
  IB-trees do not keep data intervals. All data
  intervals are kept in the leaf nodes.
• Number of children is equal to the number of
  keys.
• Refer to the figure for internal node structure.

18
Internal IB node structure figure.
19
INTERVAL-SEARCH for IB-tree

• INTERVAL-SEARCH (N,I)
• (For a given search interval Iis,if, find an
  interval that intersects with I in the Interval
  B-tree T. Here, N is node of the Interval
  B-tree and the initial call is
  INTERVAL-SEARCH(root(T),I).)
• INTERVAL-SEARCH(root(T),I)
• (We assume that N has k children (if an internal
  node), or k data items (if a leaf node))
• (1) If N is a leaf node then check if there is an
  intersection interval with I among the intervals
  in N.
• (2)else if N is an internal node then
• (2.1) i1
• (2.2) if I intersects ai,mi then
  INTERVAL-SEARCH(ci,I)
• else if iltk then ii1, goto 2.2.

20
INTERVAL-SEARCH

• Note that INTERVAL-SEARCH algorithm returns one
  interval (if there exists atleast one) that
  intersects with the given search interval.
• To obtain all the intersecting intervals
• we have to use the links between the leaf nodes
  for a sequential search from that point on. Since
  the intervals in the leaf nodes are sorted as per
  their starting points, so it is efficient.
• Or we can follow all the child pointers that
  satisfy condition in step2.2 of the algorithm.

21
Insertions and Deletions in IBtree

• Insertion and deletion operations for IBtree are
  similar to those for Btrees with the only
  exception of a little overhead to maintain the
  augmented information.
• For every merge operation done during insertion
  or deletion, the maximum fields for all the nodes
  along the ancestral path have to be updated
  accordingly.
• Complexity of insertion and deletion operations
  for IBtrees is still O(logkn) (the same as
  B-trees), where n is the number of leaf nodes
  and k is the average fanout of a node in the
  tree.

22
IB-tree figure.
23
Storage Utilization of IB-tree

• Storage utilization of IB tree is similar to
  Btree.
• Let size of a node (leaf or internal) be Mbytes
• Let each pointer take p bytes while a key value
  is taken as k bytes.
• Max number of entries in leaf node is P1M/(2kp)
  where the tuple identifier is p bytes.
• Max number of entries in internal node is
  PiM/(2kp) which same as P1.
• If there are N intervals to index, there will be
  (N/P1 ln2) leaf nodes as each node is shown to
  be ln2 full on the average.
• Number of internal nodes (N/P1 ln2) (1/(P1 ln2)
  1/(P1 ln2)2..(h-1) terms
• N/(P1 ln2 1) approximately.

24
Comparison with a regular B tree.

• A regular B tree with no augmentation
  information will take less little number of pages
  (for internal nodes) as Pi would be (Mk)/(kp)
  (children is one more than keys). As fanout
  increases, the difference between a IB and B is
  very insignificant.
• Height comparison
• hIB-tree/hB-tree (ln Pi(B-tree) ln ln2)/(ln
  Pi(IBtree) ln ln2)
• Which is very close to 1. For p8, k4, M2048,
  Pi(IBtree) is 128, and Pi(B-tree) becomes 171.
  In this case, the height ratio becomes 1.06 app.
• Observation The height of B-tree and IB-tree
  structure built on the same set of interval data
  will most likely be the same.

25
AD-trees AD-trees

• We propose a one-dimensional AD-tree structure
  for indexing transaction time intervals with
  respect to their finish points.
• AD tree structure is simply an augmented
  AD-tree.
• AD-tree is built on finish points of the data
  intervals and is augmented with minimum starting
  point information to obtain AD structure.
• Since AD and AD-trees are similar, we just
  discuss the features of AD-tree.
• Since the finish points of the insertions are
  ordered, we do the insertion at the right most
  node.

26
AD-tree properties
27
AD-tree with k4 after an insertion and a deletion
28
(No Transcript)
29
Deletion in AD-trees figure.
30
AD-tree vs MB-tree

• Lemma1 The minimum number of keys in an AD-tree
  of height h with order k (maximum fanout) is
  (k-1)kh-2 2, where k,hgt2.
• Lemma 2 The minimum number of keys in an
  MB-tree of height h with order k (maximum
  fanout) is (floor(k/2)kh-2) 2, where k,hgt2
• Theorem The worst case density of an AD-tree of
  height h with order k is more than that of an
  MB-tree of the same height and the same order,
  (kgt3).
• Experimental results have shown that the height
  of AD-tree increases slower than the MB-tree
  when we assume they index the same set of keys
  and have the same parameters.

31
R-trees

• 1D R-tree
• Each internal node entry contains a minimum
  bounding interval (MBI) and a child pointer.
• The deletion, insertion, and search algorithms of
  the general R-trees are not changed.
• 2D R-trees, each interval is mapped to a point in
  a 2D-space where the dimensions are the starting
  pt. and the finish pt.
• In each internal nodes, each entry contains a
  child pointer and a MBR that encloses the 2D
  points indexed below in the corresponding
  subtree.
• R-tree does not assume, no consider any ordering
  among the data intervals as in IB tree.
• 2D R-trees require more storage and perform worse
  for common intersection queries.

32
Temporal relationships between intervals
33
Querying the past state

• Queries on intervals employ different temporal
  operators.
• Depending on the querying requirement, different
  operators can be applied.
• Operators after, met by, right overlaps, left
  covered by, right covered by, right covers,
  equals, covered by are well supported by
  IB-tree.
• Operators before, meets, left overlaps, left
  covers, right-covered by, equals, covered by,
  left covered by are well supported by AD-tree.
• All the operators either invoke an intersection
  or an inclusion search in 1-D R-tree structure.
  All the operators are uniformly supported by
  R-trees
• For 2D R-trees, each of the operators corresponds
  to a 2D query region as shown in fig.

34
Temporal relationships in 2D space.
35
Experimental results. AD-trees
36
Experimental results .

• Fig a.
• MB-tree performs better than Btree when its
  height is smaller than the height of Btree. When
  they have the same height, Btree performs better
  than MBtree.
• Fig b.
• B outperforms MBtree when they have same
  height.
• AD-tree outperforms both the structures.
• In terms of insertion performance, AD-tree and
  MBtree are almost same, but Btree performs
  worse than the other two.
• When deletions are not strictly from the left
  hand MB-tree performs better than B-tree in all
  categories.

37
Experimental results IB R-trees
38
Experimental results IB R-trees

• Insertion and deletion in IBtrees are simpler
  and less costly compared to R-trees.
• In Fig a.
• For 2D R-trees, this operation is a window query
  so it is not very efficient.
• For IB trees, this is related to the fact that
  the starting points of all qualifying intervals
  fall in the query interval. Thus it performs
  best.
• In fig b.
• For 1D R-trees, all nodes whose MBIs include the
  finish point of the query interval have to be
  retrieved. This becomes costly as MBI size
  increases.
• Similarly with 2d R-trees.

39
Experimental results IB R-trees
40
Experimental results IB R-trees

• In Fig a.
• 1D R-tree performed the best with 30-40 edge
  over IB-tree and 30 over 2D R-trees.
• Sequential search method and the range search
  method of IB-tree performed very close each
  other with the sequential search method slightly
  better than range search method.
• In Fig b.
• 1D R-tree performed the best.
• Exponential distribution affects the way the
  augmented information in an IB-tree is utilized.
• IB-tree range search performed better than the
  sequential search method.

41
Indexing valid time databases

• For valid time data, we need to use indexing
  structures that support dynamic insertions and
  deletions.
• IB-trees can also support indexing on valid time
  intervals, including the intervals that span into
  the current time and into future.
• We make the following assumptions
• Valid time intervals should have an absolute
  (fixed) starting time point, and the finish
  points of the valid time intervals can either be
  an absolute time point or the current time
  variable now.

42
Indexing valid-time intervals
