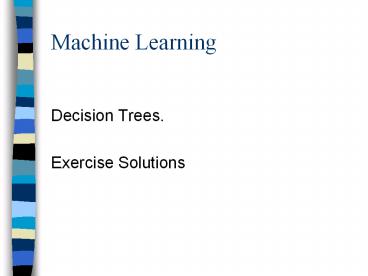

Machine Learning

• Decision Trees.
• Exercise Solutions

2
Exercise 1

• a) Machine learning methods are often categorised
  in three main types supervised, unsupervised and
  reinforcement learning methods. Explain these in
  not more than a sentence each and explain in
  which category does Decision Tree Learning fall
  and why?

3
Answer

• Supervised learning is learning with a teacher,
  i.e. input-output examples are given to the
  system in the training phase. After training the
  system is asked to predict the output from new
  inputs. E.g. classification
• Unsupervised learning is in fact learning for
  structure discovery with no teacher. Only input
  data are seen in both the training and the
  testing phase. E.g. ICA, clustering.
• Reinforcement learning is learning with no
  teacher but with feedback from the environment.
  The feedback consists of rewards, which are
  typically delayed. E.g. Q-learning.
• ?Decision Trees are supervised learning
  methods.They do classification based on given
  examples.

4

• c) For the sunbathers example given in the
  lecture, calculate the Disorder function for the
  attribute height at the root node.

5
Disorder of height

6
Disorder of height (contd)
Alex Annie Katie
Sarah Emily John
7
Exercise 2

• For the sunbathers example given in the lecture,
  calculate the Disorder function associated with
  the possible branches of the decision tree once
  the root node (hair colour) has been chosen.

8
Answer 1st branch
is_sunburned
Hair colour
Sarah AnnieDana Katie
Blonde
Height
Weight
Lotion used
Short
Tall
Average
Average
Light
Yes
No
Sarah Annie
Dana Katie
Sarah
Annie Katie
Dana
Sarah Katie
AnnieDana
0.5
0
1.0
9

• So in this branch (1st branch) we found the
  Lotion Used is the next attribute to split on
• We also found that by doing that this branch is
  done.
• The method of computation for the other 2
  branches (red and brown) is exactly the same.

10
Exercise 3

• Using the decision tree learning algorithm,
  calculate the decision tree for the following
  data set

11
Data for Exercise 3
12
Ex 3 Search for Root. Candidate Hair Colour
is_sunburned
Hair colour
Brown
Blonde
Sarah AnnieDana Julie Ruth
Alex Pete John
Av Disorder (5/8) 0.971 0.6069
13
Ex 3 Search for Root. Candidate Height
is_sunburned
Height
Short
Tall
Average
Alex Annie
Sarah Julie John Ruth
Dana Pete
Av Disorder ¼ 1/2 0.8113 0 0.655
14
Ex 3 Search for Root. Candidate Weight
is_sunburned
Weight
Light
Heavy
Average
Sarah Julie Ruth
Pete John
Dana Alex Annie
Av Disorder 2(3/8)0.9183 0.6887
15
Ex 3 Search for Root. Candidate Lotion
is_sunburned
Lotion used
Sarah Annie Julie Pete John Ruth
No
Yes
Dana Alex
Av Disorder (3/4)0.9183 0.6887
16
Ex 3 Next
Dana
17
Ex 3 Next
is_sunburned
Hair colour
Blonde
Brown
Height
No
Short
Tall
Av
No
Yes
Sarah Julie Ruth
No further split will improve the classification
accuracy on the training data. We can assign a
decision to this leaf node based on the majority.
That gives a No.
