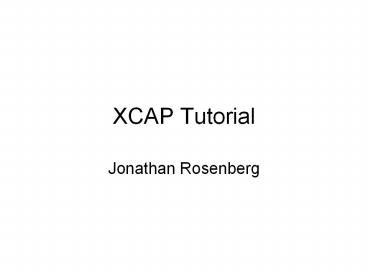

XCAP Tutorial

1
XCAP Tutorial

• Jonathan Rosenberg

2
Ground Rules

• This is a session for level setting
• People are at different points
• We will start from the beginning
• NO QUESTION IS TOO STUPID
• Disrespect will not be tolerated
• Please interrupt and ask
• PLEASE!

3
Agenda

• Understanding XML
• Basic XML Concepts
• Namespaces
• Schema
• XPath in Brief
• HTTP Concepts of Note
• Etags
• XCAP Problem Definition

• XCAP Basics

4
XML Basics

• XML is a mechanism for representing structured
  data
• Data is represented by a tree
• Each node in the tree is an element
• Elements have attributes
• Attributes qualify the data
• Leaf Elements can contain text content

lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
5
XML Basics

• XML Comments
• Elements can be empty
• ltel-name/gt shorthand
• XML Declaration
• Version
• Encoding
• IETF uses UTF-8

lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
6
XML Terms

• Well-formed
• Meets basic constraints for all XML documents
• Each open tag has a matching close
• Unique attribute names
• Valid
• Meets the constraints defined by a schema or DTD

7
XML Namespaces

• Problem
• Want to combine content from different systems
  into one document
• What if both sources define the same name?
• Example
• Add information to address book on whether data
  is synced with PC
• ltstategtsynchronizedlt/stategt
• Which state is it?

lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
8
XML Namespaces
lt?xml version"1.0" encoding"UTF-8"?
xmlnsposthttp//www.post.com
xmlnssynchttp//www.sync.comgt
ltpostaddress-bookgt lt!This guy is a bozo --
ltpostentrygt ltpostnamegtJonathan
Rosenberglt/postnamegt ltpostemailgtjdrosen_at_d
ynamicsoft.comlt/postemailgt ltpostpostalgt
ltpoststreet pavedtruegt600 Lanidex
Pllt/poststreetgt ltpostcitygtParsippanylt
/postcitygt ltpoststategtNJlt/poststategt
ltpostcountrygtUSAlt/postcountrygt
lt/postpostalgt ltpostietf-participant/gt
ltsyncstategtsynchronizedlt/syncstategt
lt/entrygt lt/address-bookgt

• Solution XML Namespace
• Elements and attributes are bound to a namespace
  when defined
• Namespace is identified with a unique URI
• A prefix is bound to that URI through a
  declaration in the document
• Each element is named with its qualified name
• The prefix, followed by a colon, followed by the
  local-name

9
Importance of Namespaces

• Namespaces are like option tags in SIP
• Group a bunch of things together and give it a
  name
• Are useful for talking about extensibility
• Are useful for negotiating extensibility
• Provide a generic grouping facility

10
XML Schema

• Need a way to define the constraints on an XML
  document
• Analagous to a database schema
• Similar to a grammar
• W3C has specified two ways
• DTD
• Original method
• Not an XML document
• Limited expressiveness
• Schema
• Newer
• XML-based
• Much more expressive
• Much more complex
• Works well with namespaces
• Trend is towards schema

11
Schema Example
lt?xml version"1.0" encoding"UTF-8"?gt ltxsschema
targetNamespace"http//www.post.com"
xmlnsxs"http//www.w3.org/2001/XMLSchema"
xmlns"http//www.post.com" elementFormDefault"q
ualified" attributeFormDefault"unqualified"gt
ltxselement name"address-book"gt
ltxscomplexTypegt ltxssequencegt ltxselement
name"entry" minOccurs"0" maxOccurs"unbounded"gt
ltxscomplexTypegt ltxssequencegt
ltxselement name"name" type"xsstring"/gt
ltxselement name"email" type"xsstring"/gt
ltxselement name"postal"gt
ltxscomplexTypegt ltxssequencegt
ltxselement name"street" type"xsstring"/gt
ltxselement name"city" type"xsstring"/gt
ltxselement name"state"gt
ltxssimpleTypegt ltxsrestriction
base"xsstring"gt ltxsenumeration
value"NJ"/gt ltxsenumeration
value"NY"/gt lt/xsrestrictiongt
lt/xssimpleTypegt lt/xselementgt
ltxselement name"country"
type"xsstring"/gt lt/xssequencegt
lt/xscomplexTypegt lt/xselementgt
ltxselement name"ietf-participant"/gt
lt/xssequencegt lt/xscomplexTypegt
lt/xselementgt lt/xssequencegt
lt/xscomplexTypegt lt/xselementgt lt/xsschemagt
12
XPath

• XCAP selection is based on XPath
• Happens to be a subset
• Not a normative usage
• XPath problem statement
• How to point to specific pieces of an XML
  document
• Example The third element named entry
• Example All of the elements in a document that
  have the attribute paved equal to true.
• XPath XML Addressing

13
Basic Example
lt?xml version"1.0" encoding"UTF-8"?
xmlnsposthttp//www.post.com
xmlnssynchttp//www.sync.com
xmlnshttp//www.post.comgt ltaddress-bookgt
lt!This guy is a bozo -- ltentrygt
ltnamegtJonathan Rltnamegt ltemailgtjr_at_dsoft.comlt
/emailgt ltpostalgt ltstreet
pavedtruegt600 Lx Pllt/streetgt
ltcitygtParsippanylt/citygt
ltstategtNJlt/stategt ltcountrygtUSAlt/country
gt lt/postalgt ltietf-participant/gt
ltsyncstategtsynchronizedlt/syncstategt
lt/entrygt lt/address-bookgt

• Want to point to the email element
• XPath expressionaddress-book/entry/email
• Just like a unix filesystem path
• Each directory identifies an element name

14
Positional Selectors

• What if there are multiple elements with that
  name?
• Can supply predicates which select one of the
  matching ones
• Predicates appear in square brackets
• One such predicate is position
• Indicates which one by its place in the ordered
  sequence of matching elements
• Select second barfoo/bar2
• Select first barfoo/bar1

ltfoogt ltbargtHellolt/bargt ltbargtTherelt/bargt lt/foogt
15
Select by Attribute Name

• You can select elements that have attributes with
  specific valueselement_at_namevalue
• foo/bar_at_attr1
• foo/bar_at_attr2
• foo/bar_at_stuffLOTR

ltfoogt ltbar attr1gtHilt/bargt ltbar
attr2gtHowlt/bargt ltbar stuffLOTRgtArelt/bargt lt
/foogt
16
Selecting Elements

• The result of selecting an element includes
• The element
• Its children
• Its attributes
• Everything between open bracket of open element
  to close bracket of close element

• XPath allows selecting multiple elements
• XCAP does not use this feature

17
Selecting Attributes

• An attribute is selected by prefixing its name
  with an _at_
• foo/bar1/_at_attr
• foo/bar_at_attr2/_at_bool
• foo/movie/_at_stuff
• The selected object is JUST the value
• Different from elements
• Name would be redundant

ltfoogt ltbar attr1gtHilt/bargt ltbar attr2
boolygtHowlt/bargt ltmovie stuffLOTRgtArelt/bargt
lt/foogt
18
XCAP Problem Space

• Motivating use cases
• Buddy Lists
• Authorization Policies
• Hard state presence data

19
Buddy List Use Case
Subscribe List

• Client wants to subscribe to a list of users
• Send SUBSCRIBE to server using SIP event list
  extension
• Server retrieves list associated with buddylist
  URI
• Generates SUBSCRIBEs to them
• Client can manage that list
• Add, remove, modify entries

Subscribe Joe
Subscribe Bob
Subscribe Mary
Read List
Write List
Data Manipulation Server
Standard Ifaces
Client
20
Authorization Use Case
Subscribe Petri

• User Hiroshi subscribes to Petri
• No auth policy in place, generates a winfo NOTIFY
  to Petri
• Petri needs to be able to set authorization
  decision for Hiroshi
• Want to be able to set such policies outside of a
  subscription as well

Read List
Write List
Data Manipulation Server
winfo
Standard Ifaces
Client
21
Hard State Presence Management
Subscribe Petri

• Hiroshi subscribes to Petri
• Petri has been offline for weeks
• Server sends NOTIFY with current presence state
• Petri wants to control default state when offline
• Set it to ltactivitygtvacationlt/activitygt

Notify
Read PIDF
Write PIDF
Data Manipulation Server
Standard Ifaces
Client
22
Functional Requirements

• Create resource list/auth policies/default
  presence doc
• Associate resource list/auth policies/default
  presence doc with URI
• Have client define URI
• Have server assign URI
• Modify contents of resource list/auth
  policies/default presence doc
• Extend resource list/auth policies/default
  presence doc in hierarchical way
• Delete a piece of resource list/auth
  policies/default presence doc
• Fetch current resource list/auth policies/default
  presence doc
• Allow multiple clients to access and modify a
  shared resource list/auth policies/default
  presence doc

23
Performance Requirements

• Protocol will be used on wireless air interfaces
• Means that it is
• unacceptable to push the entire resource
  list/auth policies/default presence doc when a
  change is needed
• Unacceptable to get the entire resource list/auth
  policies/default presence doc when the client
  needs to look at it
• Implies local cache
• Pushing and pulling partial pieces of the data is
  essential
• Invalidation of cached data
• Synchronization of data

24
Key Observations

• Clearly a general problem here
• Allowing a user to managed provisioned data that
  is accessed by a network application
• Apply some basic design principles
• Separate protocol machinery from data schema
• Dont box yourself into a corner with the data
  schema
• Bandwidth efficiency important
• Lower the deployment bar
• This is a well-trod space
• LDAP, ACAP, SNMP, relational DB cover related
  spaces, none successfully deployed to broad end
  client bases

25
XCAP Architecture
Network App

• Same as previous pictures
• Scope limited to client to XCAP server
• Access from Network App could be XCAP
• Acts as a client
• There may be no network app
• XCAP server is repository for client data

Not Standardized
Not Standardized
XCAP Server
XCAP
Client
26
The Big Aha

• XCAP is about clients getting, deleting and
  putting pieces of hierarchically organized data
• Ideally XCAP should leverage technologies widely
  found in phones, PCs and other client devices
• XCAP can just BE HTTP, by defining the URI
  hierarchy to extend into web documents
• HTTP URIs can represent any resource
• Dont need to exist on a disk
• Interpretation is up to the server
• XCAP defines that interpretation

27
HTTP in Brief

• Clients invoke methods on server
• GET retrieve content
• PUT place content
• POST pass data to a process
• HEAD get meta-data, not content
• OPTIONS query server for capabilities
• DELETE remove a resource from a server
• Requests and responses contain bodies

28
Fetch a document
GET http//server.com/dir/foo HTTP/1.1
ltfoogt ltbar attr1gtHilt/bargt ltbar attr2
boolygtHowlt/bargt ltmovie stuffLOTRgtArelt/bargt
lt/foogt
HTTP/1.1 200 OK Content-Type application/xml Cont
ent-Length ltfoogt ltbar attr1gtHilt/bargt
ltbar attr2 boolygtHowlt/bargt ltmovie
stuffLOTRgtArelt/bargt lt/foogt
29
XCAP Scope

• Application Usages
• Details how you use XCAP for a new app (i.e.,
  CPCP)
• Server assigned data
• Naming convention for URIs
• Document selector picks the XML Document
  based on a defined document hierarchy
• Component selector picks an element or
  attribute within the document
• Using GET, PUT and DELETE for management of
  elements and attributes
• Error content
• Extensibility of data
• Etag advice

30
Application Usage

• Defines what an application needs to do to be
  used with XCAP
• Define an Application Unique ID
• Define the XML Schema for the data
• Define data semantics
• Specify naming conventions binding between
  application and XCAP
• Data interdependencies (aka server computed data)
• Authorization policies

31
AUID

• Unique Identifier for each application
• Two sub-namespaces
• IETF tree tokens in RFC documents
• IANA Registry
• Vendor tree proprietary data
• Start with reverse DNS name of enterprise
• Examples
• IETF Tree
• resource-lists draft-ietf-simple-xcap-list-usage

• pidf-manipulation draft-isomaki-simple-xcap-pidf
  -manipulation-usage-00
• rules draft-rosenberg-simple-rules
• Vendor Tree
• com.example.customer-list

32
AUID Grammar
AUID global-auid / vendor-auid global-auid
auid auid alphanum / mark vendor-auid
rev-hostname "." auid rev-hostname toplabel (
"." domainlabel ) domainlabel alphanum /
alphanum ( alphanum / "-" ) alphanum toplabel
ALPHA / ALPHA ( alphanum / "-" ) alphanum
33
Naming Conventions

• An app will have hooks into XCAP
• Points of operation of application when XCAP is
  used
• Need to define how that is done
• Example Presence List
• Fetch document whose uri attribute of
  ltresource-listgt is equal to request URI of
  SUBSCRIBE
• Example Authorization
• Fetch authorization policy documents underneath
  http//server.com/rules/users/ltusernamegt where
  username identifies the presentity

34
Data Interdependencies

• In many cases a user defines all of their own
  data
• PIDF manipulation usage
• Authorization policies
• In some cases a few pieces of it are filled in
  by the server
• Resource list URIs for lists need to be unique,
  can be server assigned
• Client can also define them
• Application usage specifies what pieces server
  fills in, and how

35
Modeling Server Computed Data

• Think of the application usage as a client of
  XCAP
• Handset puts a new resource list, URI not present
  (1)
• Application learns of change (4)
• Acting as a client, application modifies data,
  setting URI (5)
• This is a model, not an implementation
  requirement
• Impacts Etag usage (later)

36
Authorization Policies

• Who is allowed to access (R/W) XCAP data?
• Application specific
• Policies are specified by application usage
• XCAP defines a default
• A user can read and write their own data
• A user can only access their own data
• Global data is readable by everyone, writeable by
  no one except privileged users

37
Definition Example

• Basic address book from before
• Would author an RFC structured as follows

38
Document Contents

• AUID
• Want this to be global
• Pick an appropriate AUID
• address-book
• Add an IANA Considerations section registering
  the AUID
• XML Schema
• Include it
• IANA registry for schema and namespace

• Naming Conventions
• No server app
• No naming conventions
• No data interdependencies
• Default authorization policy

39
Semantics

• An address book is a series of ltentrygt elements
• Each ltentrygt is information about an entry in the
  address book
• It has a ltnamegt, which is the use persons first
  and last name
• It has an ltemailgt element, which contains the
  email address of the person
• It has a ltpostalgt element that has the postal
  address

40
The Document Hierarchy

• XCAP defines URIs as two parts
• Document selector chooses the XML document
• Node selector chooses the XML component
  (element, attribute)
• XPath subset discussed previously
• XML documents organized into a mandatory
  hierarchy
• Borrows from ACAP concepts

41
Hierarchy Structure

• Top is the Root Services URI
• Identifies start of XCAP tree
• http//server.example.com/xcap-root
• http//www.example.com/docs/xml/ietf/xcap/root
• Next is the AUID
• Next is users or global
• users are for per-user documents
• global are for data that is not user specific
  for reading by all users of the app
• Within users, next is username
• Underneath username is anything
• Eventually leads to document

42
The Hierarchy
Root services
AUID 1
AUID 2
users
global
petri
hiroshi
doc1
dir1
43
Example 1

• http//xcap.example.com/address-book/users/petri/a
  dbook1/address-book/entry/name

adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
44
Client Operations

• Retrieving
• Document
• Element
• Attribute
• Deleting
• Document
• Element
• Attribute

• Modifying
• Document
• Element
• Attribute
• Adding
• Document
• Element
• Attribute

KEY CONSTRAINTCan only affect one element,
attributeor document at a time
45
Fetching a Document
GET http//xcap.example.com/address-book/users/pet
ri/adbook1 HTTP/1.1
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK Content-Type application/adbookx
ml Content-Length lt?xml version"1.0"
encoding"UTF-8"?gt ltaddress-bookgt lt!This
guy is a bozo -- ltentrygt
ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt
lt/address-bookgt
46
Fetching an Element
GET http//xcap.example.com/address-book/users/pet
ri/adbook1/ address-book/entry/name HTTP/1.1
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK Content-Type application/xml-frag
ment-body Content-Length ltnamegtJonathan
Rosenberglt/namegt
47
Fetching an Attribute
GET http//xcap.example.com/address-book/users/pet
ri/adbook1/ address-book/entry/street/_at_paved
HTTP/1.1
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK Content-Type application/xml-attr
ibute-value Content-Length true
48
Delete a Document
DELETE http//xcap.example.com/address-book/users/
petri/adbook1 HTTP/1.1
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK
NULL
49
Deleting an Element
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
DELETE http//xcap.example.com/address-book/users/
petri/adbook1/ address-book/entry/name/email
HTTP/1.1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK
50
Deleting an Attribute
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
DELETE http//xcap.example.com/address-book/users/
petri/adbook1/ address-book/entry/name/postal/stre
et/_at_paved HTTP/1.1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltpostalgt ltstreetgt600 Lanidex
Pllt/streetgt ltcitygtParsippanylt/citygt
ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK
51
Modify vs. Add

• Modify and Add look the same
• PUT Request
• Body contains content
• Behavior depends on URI
• Server checks if resource exist
• URI resolves to an existing doc, element in a
  doc, or attribute in an element
• If not, the operation is add
• New content is added such that
• URI now resolves to the content in the body
• Schema constraints are obeyed
• Otherwise inserted after all siblings
• If so, the operation is modify
• New content replaces the content selected by the
  URI

52
Insert an Element
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
PUT http//xcap.example.com/address-book/users/pet
ri/adbook1/ address-book/entry/phone
HTTP/1.1Content-Type application/xml-fragment-bo
dy ltphonegt19739525000lt/phonegt
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltphonegt19739525000lt/phonegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK
53
Modify an Element
adbook1
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltietf-participant/gt lt/entrygt lt/address-bookgt
PUT http//xcap.example.com/address-book/users/pet
ri/adbook1/ address-book/entry/name
HTTP/1.1Content-Type application/xml-fragment-bo
dy ltnamegtJonathan D. Rosenberglt/namegt
lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-bookgt lt!This guy is a bozo --
ltentrygt ltnamegtJonathan D.
Rosenberglt/namegt ltemailgtjdrosen_at_dynamicsoft
.comlt/emailgt ltpostalgt ltstreet
pavedtruegt600 Lanidex Pllt/streetgt
ltcitygtParsippanylt/citygt
ltstategtNJlt/stategt ltcountrygtUSAlt/country
gt lt/postalgt ltietf-participant/gt
lt/entrygt lt/address-bookgt
HTTP/1.1 200 OK
54
Server Error Handling

• Server error handling is specified in HTTP
  specification
• Most XCAP-specific cases are details within 404
  or 409
• 409 (Conflict) The request could not be completed
  due to a conflict with the current state of the
  resource.
• 404 (Not Found) The server has not found anything
  matching the Request-URI.
• XCAP Specific error cases
• Result of operation results an a document that is
  not well-formed or valid (409)
• Resource identified in a request corresponds to
  multiple elements or attributes (409)
• Application usage not understood (409)
• Document, element or attribute does not exist
  (404)
• Client provided data that violates a uniqueness
  requirement (409)
• Request did not contain valid xml-frag-body
  (409?)

55
Conveying Conflict Details

• HTTP recommends including a 409 body detailing
  problem so client can retry
• XCAP defines an XML body format for response
• application/xcap-errorxml MIME type
• Root element ltxcap-errorgt
• Child is specific to the error
• Detailed error information can be dependent on
  the error
• Defined errors match ones on previous slide

56
URI Exists Error

• Client attempts to set a URI with a uniqueness
  constraint, and the value exists already
• Happens in resource lists
• Server error response indicates
• URI(s) which had this problem
• Optional suggested alternates

lt?xml version"1.0" encoding"UTF-8"?gt ltxcap-error
xmlns"urnietfparamsxmlnsxcap-error"gt
lturi-existsgt ltexists uri"sipfriends_at_example.c
om"gt ltalt-urigtsipfriends2_at_example.comlt/alt-ur
igt lt/existsgt lt/uri-existsgt lt/xcap-errorgt
57
Handling Multiple Writers

• Synchronization problems occur when multiple
  clients can manipulate the same document
• Especially true when a client needs to do
  multiple HTTP operations to affect a change
• XCAP provides no lock
• But we want to detect this condition and recover
• Common problem

58
Solution Etags

• ETag from HTTP
• Entity tags are used for comparing two or more
  entities from the same requested resource.
• An entity tag MUST be unique across all versions
  of all entities associated with a particular
  resource.

• What does this mean?
• ETag is a version identifier for a resource
• Server assigns the etag
• It changes every time the resource changes

59
How are they used?

• HTTP defines several conditional headers
• If-Match only process this request if the entity
  tag matches that held by the server
• If-None-Match only process this request if the
  entity tag does not match
• If-Range asks for the byte range that has
  changed
• Server returns 412 if condition fails

60
Example Revisited

• User A has version ABC
• Adds buddy, adds If-Match ABC
• Buddy added, new version DEF
• User B also has version ABC
• Tries to modify it, but it fails
• B can now fetch it and make its diff against the
  current version

61
Data Extensibility

• XCAP servers MUST understand the application
  usages they manage
• They dont need to understand any namespaces but
  the root ones
• Document extensions dont need to be understood
• Sometimes, an extension requires the server to
  understand
• Setting a URI
• Guaranteeing Uniqueness

62
Current Solution

• Defines a mandatory-ns element
• This attribute is present as a child of the root
  element in any document
• Indicates what namespaces are mandatory

lt?xml version"1.0" encoding"UTF-8"?gt
ltaddress-book xmlnsconfurnietf2233gt
ltmandatory-nsgt ltnsgturnietf2233lt/nsgt
lt/mandatory-nsgt lt!This guy is a bozo --gt
ltentrygt ltnamegtJonathan Rosenberglt/namegt
ltemailgtjdrosen_at_dynamicsoft.comlt/emailgt
ltpostalgt ltstreet pavedtruegt600
Lanidex Pllt/streetgt ltcitygtParsippanylt/c
itygt ltstategtNJlt/stategt
ltcountrygtUSAlt/countrygt lt/postalgt
ltconference-uri/gt ltietf-participant/gt
lt/entrygt lt/address-bookgt
63
Presence Authorization

• Specified as a ruleset
• Each ruleset is a series of rules
• Each rule has three parts
• Condition does this rule apply?
• Action what do you do if it does?
• Transformation how do you restrict the data
  seen by a requestor?

64
Permission Model

• Each action or transformation is called a
  permission
• A permission is a positive grant of information
• There can never be negative grants, i.e., dont
  send information X
• If there is no permission for something, you get
  nothing
• Implication is that the system is privacy safe

65
Privacy Safe

• If a server doesnt understand a permission, less
  information is sent than desired, never more
• If a server cannot obtain a rule from a remote
  source, less information is sent than desired,
  never more
• No network failures or other transient problems
  can result in more information being sent than is
  desired

66
Common Policy

• draft-ietf-geopriv-common-policy
• Defines framework
• Defines common elements in all systems
• ltidentitygt - condition matching based on user
  identity
• ltspheregt - condition based on your presence
  status
• ltvaliditygt - time range

67
Current Presence Authorization Elements

• Extends the set defined in common-policy with
  presence-specific data
• New conditions
• ltanonymousgt - is the subscription anonymous
• Actions
• ltaccept-subscriptiongt - accept the presence
  subscription
• ltprovide-presencegt - polite blocking or not
• Transformations
• ltshow-namespacegt - provide elements from a
  specific namespace
• ltshow-tuplegt - provide elements from specified
  tuples
• ltshow-elementgt - provide elements with a specific
  name

68
lt?xml version"1.0" encoding"UTF-8"?gt
ltcrruleset xmlns"urnietfparamsxmlnspres-rul
es" xmlnscr"urnietfparamsxmlnscommon-pol
icy" xmlnsrpid"urnietfparamsxmlnsrpid"
xmlnsxsi"http//www.w3.org/2001/XMLSchema-inst
ance"gt ltcrrule id"1"gt ltcrconditionsgt
ltcridentitygt ltcrurigtuser_at_example.com
lt/crurigt lt/cridentitygt
lt/crconditionsgt ltcractionsgt
ltaccept-subscriptiongttruelt/accept-subscriptiongt
ltprovide-presencegttruelt/provide-presencegt
lt/cractionsgt ltcrtransformationsgt
ltshow-namespacegt ltnsgturnietfparamsxmln
srpidlt/nsgt lt/show-namespacegt
ltshow-elementgt ltbasic-elements/gt
ltelgtrpidplacetypelt/elgt lt/show-elementgt
lt/crtransformationsgt lt/crrulegt
lt/crrulesetgt
