Title: Atmosphere


1

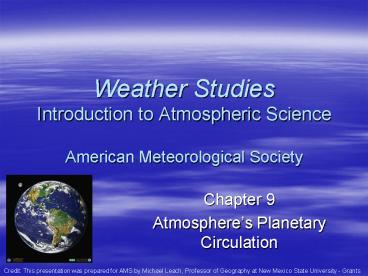

Weather Studies Introduction to Atmospheric
ScienceAmerican Meteorological Society
  • Chapter 9
  • Atmospheres Planetary Circulation

Credit This presentation was prepared for AMS by
Michael Leach, Professor of Geography at New
Mexico State University - Grants
2
Case-in-Point
  • 1983 was a year of wild weather
  • There were 2000 weatherrelated deaths
  • 13 billion in weather-related property damage
  • There were floods, droughts, and fires worldwide
  • Just prior to these weather extremes, the ocean
    circulation off the northwest coast of South
    America changed drastically
  • Off the coast of Ecuador, the quantity of
    plankton decreased 20-fold
  • This reduced the number of anchovy
  • Fish that fed on anchovy declined markedly
  • Commercial fisheries off the coast of Ecuador and
    Peru collapsed
  • On Christmas Island, where 17 million seabirds
    normally nest, most adult birds abandoned their
    nesting grounds for sites with more food, leaving
    their young to starve
  • All of this was driven by large-scale
    atmosphere/ocean circulation changes attributed
    to El Niño

3
Driving Question
  • What are the principal features of the
    planetary-scale atmospheric circulation, and how
    does the circulation affect weather and climate?
  • This chapter describes planetary-scale
  • Pressure systems
  • Wind belts
  • Circulation patterns of middle latitude
    westerlies
  • Anomalous variations in the circulation regime
    that result in El Niño and La Niña

4
Idealized Circulation Pattern
  • To start with, assume a non-rotating Earth
  • Also assume a uniform solid surface
  • Sun heats the equatorial regions more intensely
    than the poles a temperature gradient develops
  • Convection cell forms when cold, dense air sinks
    at the poles and flows at the surface toward the
    equator, where it forces warm, less dense air to
    rise. Aloft, equatorial air flows toward the
    poles.

5
Idealized Circulation Pattern
  • If the idealized planet starts to rotate from
    west to east, the Coriolis Effect comes into play
  • Northern Hemisphere surface winds are diverted to
    the right and blow toward the southwest
  • Southern Hemisphere surface winds are diverted to
    the left and blow toward the northwest
  • Winds blow counter to planets direction of
    rotation

6
Idealized Circulation Pattern
  • Circulation is maintained in the atmosphere of
    our idealized Earth because the planetary-scale
    winds split into 3 belts in each hemisphere
  • 3 belts are
  • 0 to 30
  • 30 to 60
  • 60 to 90
  • Now some winds blow with and some blow against
    the planets rotation

7
Idealized Circulation Pattern
  • Surface winds converge along the equator and
    along 60 latitude circles
  • Convergence leads to rising air, expansional
    cooling, cloud development and precipitation
  • Convergence zones are belts of relatively low
    surface air pressure
  • Surface winds diverge at the poles and along the
    30 latitude circles
  • Air descends, is compressed and warms, and
    weather is generally fair
  • Divergence zones are belts of relatively high
    surface air pressure

8
Features of the Planetary-Scale Circulation
  • Adding continents and ocean basins complicates
    the picture
  • Some pressure belts break into separate cells
  • Important pressure contrasts develop over land
    versus sea
  • Maps show mean sea-level air pressure during
    January (top) and July (bottom) these are
    semi-permanent features

9
Features of the Planetary-Scale Circulation
  • Schematic representation of the planetary-scale
    surface circulation of the atmosphere

10
Features of the Planetary-Scale Circulation
  • Pressure Systems and Wind Belts
  • Subtropical anticyclones
  • Form near 30 N and S latitude over oceans
  • Extend from the ocean surface to the tropopause
    and exert a major influence on weather and
    climate over vast areas of the ocean and
    continents
  • Subsiding air extends outward from the eastern
    sides
  • Compressional warming, low relative humidity, and
    fair skies are common
  • Major deserts are located on eastern flanks
  • The far western portions are characterized by
    less subsidence, less stable air, and frequent
    episodes of cloudy, stormy weather

11
Features of the Planetary-Scale Circulation
  • Pressure Systems and Wind Belts, cont.
  • Subtropical anticyclones
  • Common is a weak horizontal pressure gradient
    over a large area
  • Winds are weak and
  • Horse latitudes (30 to 35 degrees N and S) result
  • Surface winds poleward of the horse latitudes are
    the midlatitude westerlies
  • Winds blowing out of the high pressure cells
    toward the equatorial lows are called the trade
    winds
  • Trade winds from the two hemispheres converge
    into a broad east-west equatorial belt of light
    and variable winds called the doldrums. In that
    belt, ascending air induces cloudiness and
    rainfall and the most active weather develops
    along the intertropical convergence zone (ITCZ).

12
Features of the Planetary-Scale Circulation
  • Pressure Systems and Wind Belts, cont.
  • Poleward of subtropical anticyclones
  • Surface westerlies flow into regions of low
    pressure
  • These are the Aleutian low and the Icelandic low
    in the Northern Hemisphere
  • In the Southern Hemisphere, this is a nearly
    continuous belt of low pressure surrounding
    Antarctica
  • Surface westerlies meet and override the polar
    easterlies along the polar front
  • In places where the polar front is well-defined,
    it is a potential site for development of
    extra-tropical cyclones
  • Polar highs are shallow, cold anticyclones that
    develop at high latitudes

13
Features of the Planetary-Scale Circulation
  • Winds Aloft
  • Aloft, winds in the middle and upper troposphere
    blow away from the ITCZ
  • These feed into the subtropical highs
  • Resulting convection cells are called Hadley cells

14
Features of the Planetary-Scale Circulation
  • Winds Aloft, continued
  • Aloft in middle latitudes, winds blow from west
    to east in a wavelike pattern of ridges and
    troughs
  • These winds are responsible for the movement of
    the synoptic-scale weather systems
  • Their north/south components contribute to
    poleward heat transport

15
Vertical Cross Section of Prevailing Winds in the
Troposphere
The altitude of the tropopause is directly
related to the mean air temperature of the
troposphere. The tropopause is found in three
segments, occurring at highest altitudes in the
tropics and lowest altitudes in the polar regions.
16
Features of the Planetary-Scale Circulation
  • Trade Wind Inversion
  • A persistent and climatically significant feature
    of the planetary-scale circulation over the
    eastern portions of tropical ocean basins
  • Key to formation is the descending branch of the
    Hadley cell
  • Descending air is warmed by compression and its
    relative humidity decreases
  • This air encounters the marine air layer
    overlying the ocean surface
  • Where SST are low, layer is cool, humid, and
    stable
  • Where SST are high, layer is warm, more humid,
    less stable, and well mixed by convection
  • The trade wind inversion is formed at the
    altitude where air subsiding from above meets the
    top of the marine layer, trapping the cool marine
    layer near the surface
  • Develops to the east and southeast of the center
    of a subtropical high
  • Acts as a cap on the vertical development of
    clouds and rain

17
Features of the Planetary-Scale Circulation
  • Seasonal Shifts
  • Pressure systems, the polar front, the planetary
    wind belts, and the ITCZ follow the sun, shifting
    toward the poles in spring and toward the equator
    in autumn
  • Planetary-scale systems in both hemispheres move
    north and south in tandem
  • Subtropical anticyclones exert higher surface
    pressure in summer
  • Icelandic low deepens in winter and weakens in
    summer
  • The Aleutian low disappears in summer
  • Seasonal reversals of pressure occur over the
    continents due to the contrast in solar heating
    of sea versus land
  • Continents at middle and high latitudes are
    dominated by relatively high pressure in winter
    and low pressure in summer
  • Northward migration of the ITCZ triggers summer
    monsoon rains in Central America, North Africa,
    India, and Southeast Asia

18
Features of the Planetary-Scale Circulation
  • ITCZ follows the sun
  • It reaches farthest north in July
  • It retreats to its most southerly latitudes in
    January

19
Features of the Planetary-Scale Circulation
  • Same latitude, different climates
  • In summer, San Diego is under the eastern edge of
    the Hawaiian subtropical high and has a distinct
    dry season
  • In summer, Charleston is on the humid, unstable
    side of the Bermuda high

20
Features of the Planetary-Scale Circulation
Long-term average pattern of wind-driven
ocean-surface currents. Gyres in the ocean basin
are driven by the planetary-scale atmospheric
circulation.
21
Monsoon Circulation
  • Seasonal reversal of prevailing winds
  • Results in wet summers and relatively dry winters
  • Vigorous monsoon over portions of Africa and
    Asia, where rains are essential for drinking
    water and agriculture
  • Over much of India, monsoon rains account for
    over 80 of the annual precipitation
  • Depends on seasonal shifting of global
    circulation patterns
  • Also depend on seasonal contrasts in heating and
    cooling of water and land
  • Ocean has greater thermal inertia than the land

22
Monsoon Circulation
  • In spring, there is relatively cool air over the
    ocean and relatively warm air over land
  • Horizontal pressure gradient is directed from sea
    to land
  • Produces an onshore flow of humid air
  • Over land, intense solar heating generates
    convection
  • Expansional cooling causes condensation, clouds,
    and rain
  • Release of latent heat increases buoyancy and
    contributes to uplift and instability, triggering
    even more cloud development and rainfall
  • Aloft, the air spreads seaward and subsides over
    the relatively cool ocean surface

23
Monsoon Circulation
  • In Autumn, radiational cooling chills the land
    more than the adjacent ocean surface
  • Horizontal pressure gradient is directed from
    land to sea
  • Produces an offshore flow of air
  • Over land, air subsides, and dry surface winds
    sweep seaward
  • Air rises over the relatively warm ocean surface,
    completing the monsoon circulation

24
Monsoon Circulation
  • Topography complicates the monsoon circulation
    and the geographical distribution of rainfall
  • Monsoon rainfall is neither uniform nor continual
  • Rainy season consists of active and dormant
    phases
  • The planetary circulation (e.g., ITCZ shifts) and
    the strength and distribution of convective
    activity vary from one year to the next
  • Variation affects the intensity and duration of
    monsoon rains
  • The southwest monsoon affects the American
    Southwest and brings a dramatic increase in
    rainfall during July and August

25
Waves in the Westerlies
  • Between 2 and 5 waves generally encircle the
    hemisphere at any one time
  • These long waves are called Rossby waves, and
    characterize the westerlies above the 500-mb
    level
  • They are measured by
  • Wavelength
  • Distance between successive troughs or ridges
  • Amplitude
  • North-south extent
  • Number of waves
  • In winter, waves strengthen
  • Fewer waves
  • Longer wavelength
  • Greater amplitude
  • Seasonal changes stem from variations in the
    north-south air pressure gradient, which is
    steeper in winter because of the greater
    temperature gradient

26
Waves in the Westerlies
  • Zonal and Meridional Flow Patterns
  • Westerlies have 2 components
  • North-south airflow is the meridional component
  • West-to-east airflow is the zonal component
  • If north-south component is weak, the result is a
    zonal flow pattern
  • North-south exchange of air masses is minimal
  • If flow is in a pattern of deep troughs and sharp
    ridges, the result is a meridional flow pattern
  • Greater temperature contrasts develop across the
    U.S. and southern Canada
  • Stage is set for development of extra-tropical
    cyclones
  • If northern westerlies have a wave configuration
    differing from the southern westerlies, a
    complicated split flow pattern may exist

27
Waves in the Westerlies
  • Zonal and Meridional Flow
  • These two images illustrate extremes of zonal and
    meridional flow
  • Westerlies generally shift back and forth between
    zonal and meridional flow
  • There is no regularity to this shift
  • The affects long-range weather forecasting
    accuracy

28
Waves in the Westerlies
  • Blocking Systems and Weather Extremes
  • North American weather is more dramatic when the
    westerlies are strongly meridional
  • Undulations may become so dramatic that masses of
    air separate from the flow
  • Cutoff highs and lows result
  • These prevent normal west-to-east circulation,
    and are called blocking systems
  • Extremes in weather such as drought or flooding
    rains or excessive heat or cold can result

29
Waves in the Westerlies
  • Blocking Systems and Weather Extremes, cont.
  • (A) Prevailing circulation pattern in the mid to
    upper troposphere during the summer of 1988. The
    blocking warm anticyclone over the central U.S.
    contributed to severe drought
  • (B) The long-term average circulation pattern

30
Waves in the Westerlies
  • Blocking Systems and Weather Extremes, cont.
  • The map illustrates principal features of the
    prevailing atmospheric circulation pattern during
    the summer of 1993
  • A blocking circulation pattern was responsible
    for record flooding in the Midwest and drought
    over the Southeast

31
Waves in the Westerlies
  • Blocking Systems and Weather Extremes, cont.
  • The top map illustrates the total rainfall for
    the period June-August 1993, expressed as a
    percentage of the long-term average
  • The bottom picture shows a sign marking the crest
    of floodwaters at Missouri City, MO
  • Heavy rains falling on the drainage basins of the
    Missouri and Upper Mississippi River valleys
    saturated soils and triggered excessive runoff,
    all-time record river crests, and severe
    flooding. Property damage totaled about 26.7
    billion (2002 dollars).

32
Waves in the Westerlies
  • Short Waves
  • Ripples superimposed on Rossby long waves
  • Propogate rapidly through the Rossby waves
  • 12 or more waves are generally found in a
    hemisphere at any one time
  • Westerlies accelerate in ridges and slow in
    troughs, inducing horizontal speed convergence
    aloft ahead of ridges and horizontal speed
    divergence aloft ahead of troughs

33
Waves in the Westerlies
  • Short Waves, cont.
  • The figure is a schematic representation of the
    relationship between waves in the westerlies and
    a surface high and low

34
Jet Streams
  • Narrow corridors of very strong wind
  • In middle latitudes, the most prominent jet
    stream (polar front jet stream) is located above
    the polar front in the upper troposphere between
    the midlatitude tropopause and the polar
    tropopause
  • Follows the path of the planetary westerly waves
  • Winds may top 160 km per hr (100 mph)
  • Eastbound aircraft seek it as a tail wind

35
Jet Streams
  • The polar front is a narrow transition zone
    between relatively cold and warm air masses
  • Cold air is denser than warm air, so pressure
    drops more rapidly in a column of cold air than
    warm air
  • Even if air pressure is the same at the surface,
    there is a horizontal pressure gradient aloft
    (directed from warm to cold air) that increases
    with increasing altitude

36
Jet Streams
  • Coriolis Effect balances the horizontal pressure
    gradient force
  • Winds blow parallel to the polar front with cold
    air to the left of the direction of motion in the
    Northern Hemisphere
  • Due to a strengthening horizontal pressure
    gradient with increasing altitude, wind speed
    increases with altitude in the troposphere and is
    highest near the tropopause
  • Where the polar front is well defined, jet stream
    winds are stronger and jet streaks may develop
  • Strongest jet streaks develop in winter along the
    east coasts of North America and Asia
  • Great temperature contrast between snow-covered
    land and ice-free sea surface
  • Jet streaks may have wind speeds as high as 350
    km per hr (217 mph)

37
Jet Streams
  • The figure below is a map view of a jet streak
    with associated regions of horizontal divergence
    and convergence aloft. The contour lines are
    isotachs, lines of equal wind speed (in km per
    hr). In a straight jet streak, the strongest
    horizontal divergence is in the left-front
    quadrant, supplying upper-air support for
    extra-tropical cyclone development.

38
Jet Streams
  • Undergoes important seasonal shifts
  • Strengthens in winter and weakens in summer
  • Map shows long-term average seasonal locations
  • When polar front jet stream is south of your
    location, weather is relatively cold. When it is
    north, the weather is relatively warm

39
Jet Streams
  • Subtropical Jet stream
  • Found on the poleward side of Hadley cells near
    the break in the tropopause between tropical and
    middle latitudes
  • Strongest in winter
  • Less variable with latitude than the polar front
    jet stream
  • Other jet streams
  • Tropical easterly jet
  • Feature of the summer circulation at about 15
    degrees N over North Africa and south of India
    and Southeast Asia
  • Low-level jet stream
  • Several hundred meters above Earths surface
  • Surges up Mississippi River valley
  • Contributes to the development of nocturnal
    thunderstorms

40
El Niño and La Niña
  • In El Niño,
  • Trade winds weaken
  • SST rise well above long-term averages over the
    central and eastern tropical Pacific
  • Areas of heavy rainfall shift from the western
    into the central tropical Pacific
  • La Niña is a period of exceptionally strong trade
    winds across the tropical Pacific with lower than
    usual SST in the central and eastern tropical
    Pacific
  • El Niño is the warm phase and La Niña is the cold
    phase of the tropical atmosphere/ocean
    interaction
  • El Niño and La Niña influence the prevailing
    circulation of the atmosphere in middle
    latitudes, especially in winter
  • Weather extremes that may accompany El Niño are
    opposite those associated with La Niña

41
El Niño and La Niña
  • Historical Perspective
  • Originally was the name given by fisherman to the
    seasonal occurrence of an unusually warm
    southward flowing ocean current and poor fishing
    off the coast of Peru and Ecuador during the
    Christmas season
  • Warm weather episodes are relatively brief (1-2
    months) and then SST and fisheries return to
    normal levels
  • Now, scientists reserve the term El Niño for
    long-lasting atmosphere/ocean anomalies
  • Occurs every 3-7 years
  • Persists for 12-18 months or longer
  • Accompanied by significant Pacific SST changes,
    major changes in atmosphere and ocean circulation
    patterns, and collapse of important South
    American fisheries

42
El Niño and La Niña
  • Historical Perspective
  • An important step in understanding El Niño was
    the discovery of the southern oscillation in 1924
    by Sir Gilbert Walker
  • Seesaw variation in air pressure across the
    tropical Indian and Pacific Oceans
  • Influences monsoon rains in India
  • In 1966, Jacob Bjerknes demonstrated a
    relationship between El Niño and the southern
    oscillation (ENSO)
  • An El Niño episode begins when the air pressure
    gradient across the tropical Pacific begins to
    weaken, heralding the slackening of the trade
    winds
  • Intense El Niño of 1982-83 brought attention to
    weather impacts worldwide

43
El Niño and La Niña
  • Historical Perspective, cont.
  • Today, the southern oscillation index is computed
    by subtracting the Darwin pressure from the
    Tahiti pressure divided by the standard deviation
    of that quantity
  • Strong positive values indicate La Niña
    conditions
  • Strong negative values indicate El Niño conditions

44
El Niño and La Niña
  • Neutral Conditions in the Tropical Pacific
  • If Earth did not rotate, frictional coupling
    between the wind and the ocean surface would push
    a thin layer of water in the same direction of
    the wind, and the surface layer would drag the
    layer beneath it
  • Because Earth rotates, the shallow layer of
    surface water set in motion by the wind is
    deflected to the right of the wind direction in
    the Northern Hemisphere and to the left in the
    Southern Hemisphere
  • Except at the equator, each layer of water put
    into motion by the layer above shifts direction
    because of the Coriolis Effect
  • The model to plot the direction and speed of
    water layers is known as the Ekman spiral
  • The net water movement of 90 to the wind
    direction due to the coupling between wind and
    surface water is known as Ekman transport

45
Ekman Spiral and Ekman Transport
In the Northern Hemisphere, the surface layer of
water moves at 45 degrees to the right of the
wind direction. The net transport of water
through the wind driven column is 90 degrees to
the right of the wind.
46
El Niño and La Niña
  • Typically, southerly or southwesterly winds
    blowing along the west coast of South America
    drive warm surface waters to the left (westward)
    via Ekman transport, away from the coast
  • In the process known as upwelling,
    cold-nutrient-rich waters move upward from depths
    of 200 to 1000 m (650 to 3300 ft)
  • Abundance of nutrients brought to sunlit surface
    waters spurs an explosive growth of
    phytoplankton, which supports a highly productive
    fishery

47
El Niño and La Niña
  • Neutral Conditions in the Tropical Pacific, cont.
  • Walker Circulation (large convective-type
    circulation)
  • High SST in the western tropical Pacific lowers
    surface air pressure and low SST in the eastern
    tropical Pacific raises air pressure
  • During neutral conditions, the east-west SST
    gradient reinforces the trade winds by
    strengthening the east-west pressure gradient
  • Trades become warmer and more humid as they flow
    over the ocean surface
  • In the western tropical Pacific warm humid air
    rises, expands, and cools, leading to
    thunderstorm formation
  • Aloft, air flows eastward and sinks over the
    cooler water of the eastern tropical Pacific

48
Neutral Conditions Compared with El Niño
Conditions
  • (A) Neutral (long-term average) conditions
    featuring relatively strong easterlies
  • (B) El Nino conditions with weaker easterlies

49
El Niño and La Niña
  • The Warm Phase El Niño
  • Air pressure falls over the eastern tropical
    Pacific and rises over the western Pacific
  • Pressure gradient weakens winds slacken and may
    reverse direction west of 180 longitude
  • A thick layer of warm surface water drifts slowly
    eastward over the tropical Pacific
  • In the western tropical Pacific, SST drops,
    sea-level falls, thermocline rises
  • In the eastern Pacific, SST rises, sea-level
    rises, thermocline deepens, upwelling is blocked,
    fish harvest plummets, coral bleeching occurs
  • El Niño has a ripple effect on the weather and
    climate throughout the world. A linkage between
    atmospheric circulation changes in widely
    separated regions of the globe is known as a
    teleconnection.
  • The 1997-98 El Niño rivaled its 1982-83
    predecessor as the most intense of the 20th
    century

50
El Niño and La Niña
Principal features of the winter atmospheric
circulation over North America during a typical
El Niño.
51
El Niño and La Niña
  • The Cold Phase - La Niña
  • A period of unusually strong trade winds and
    exceptionally vigorous upwelling in the eastern
    tropical Pacific
  • SST anomalies opposite those of El Niño, although
    the magnitude of anomalies are not as great
    (typically 2 to 3 Celsius degrees below the
    long-term average)
  • Brings opposite weather extremes than El Niño

52
El Niño and La Niña
  • Prediction and Monitoring
  • Some empirical and dynamical numerical models
    have been developed
  • Overall results have been mixed
  • Dynamical models performed well in detecting the
    onset of the 1997-98 El Niño due to the
    increasing amount of ocean/atmosphere
    observational data from the tropical Pacific
  • ENSO Observing System
  • Consists of an array of moored and drifting
    buoys, island and coastal tide gauges, ship-based
    measurements, and satellites
  • One component is the TAO/TRITON instrument array
    consisting of 70 deep-sea moorings
  • TOPEX/Poseiden and TRMM satellites also essential
    to monitoring conditions

53
Components of ENSO Observing System
54
Evolution of the 1997-98 El Niño
Evolution of the 1997-98 El Nino derived from
changes in ocean surface height (compared to
long-term averages) as measured by the
TOPEX/Poseiden satellite.
55
Evolution of the 1997-98 El Niño
56
Evolution of the 1997-98 El Niño
57
El Niño and La Niña
Average rainfall in millimeters per day across
the tropics for the period January 1998
December 2003. Data was obtained from the TRMM
Microwave Imager and IR sensors supplemented by
conventional rain gauge measurements.
58
El Niño and La Niña
  • Frequency of El Niño and La Niña
  • By April 2005, 26 nations adopted a common index
    for defining El Niño and La Niña in the region
    bounded by 120 W and 170 W and 5 N and 5 S
  • El Niño positive SST departure from normal
    0.5 Celsius degree, averaged over 3 consecutive
    months
  • La Niña negative SST departure from normal 0.5
    Celsius degree, averaged over 3 consecutive months
Write a Comment
User Comments (0)
About PowerShow.com
