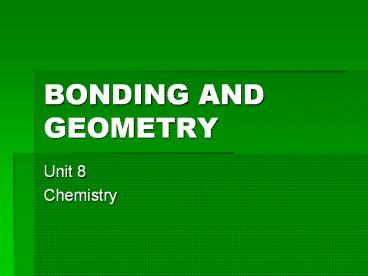

BONDING AND GEOMETRY

1
BONDING AND GEOMETRY

• Unit 8
• Chemistry

2
ATOMS AND IONS REVIEW

• Atoms are neutral
• They have the same number of protons and
  electrons
• Number of positives number of negatives
• Example Na? 11 protons, 11 electrons ? 11 11
  0
• Ions have a charge
• They have a different number of protons and
  electrons
• Example Na1?11 protons, 10 electrons? 11 10
  1
• If an atom GAINS an electron ? becomes negatively
  charged ? ANION
• If an atom LOSES an electron ? becomes positively
  charged ? CATION

3
TYPES OF BONDS

• Bonding occurs because every element is either
  trying to get to 0 electrons in the valence or 8
  electrons in the valence (zero and 8 are both
  stable)
• Valence is the outer electron shellplace where
  bonding occurs
• Ionic Bonding between a metal and a nonmetal
• Metallic Bonding between two metals
• Covalent Bonding between two nonmetals

4
IONIC BONDING

• Very stable and strong
• Strongest possible bond
• Requires a large amount of energy to break an
  ionic bond
• Forms compounds known as ionic compounds
• All ionic compounds will dissolve in water and
  carry a current (electrolyte)
• Generally have high melting and boiling points
• Compounds are generally hard and brittle

5
METALLIC BONDING

• Metal atoms are pieces of metal that consist of
  closely packed cations (positively ions)
• Cations are surrounded by mobile valence
  electrons that are free to drift from one part of
  the metal to another
• Metal atoms are arranged in very compact and
  orderly (crystalline) patterns
• Metallic bonding is the electrostatic attraction
  between conduction electrons, and the metallic
  ions within the metals, because it involves the
  sharing of free electrons among a lattice of
  positively-charged metal ions
• Occurs between 2 or more metals
• Result of the attraction of free floating valence
  electrons for the positive ion
• These bonds hold metals together

6
COVALENT BONDING

• Covalent
• Covalent bonds are when atoms SHARE VALENCE
  electrons
• A covalent compound is called a molecule
• Covalent bond ALWAYS occurs between 2 nonmetals

7
TYPES OF COVALENT BONDS

• Single Bond
• Covalent bond where one pair of electrons (2
  electrons total) are shared between 2 atoms
• Atoms share electrons so that each has a full
  octet (8 valence)
• Electrons that are shared count as valence
  electrons for both atoms
• Examples
• Cl2

8
COVALENT BONDING

• Double Bonds
• Bond in which two pairs of electrons (4 electrons
  total) are shared between 2 atoms
• Examples
• O2
• Triple Bonds
• Bond in which 3 pairs of electrons (6 total
  electrons) are shared between atoms
• Examples
• N2

9
COVALENT BONDING

• Electron Pairs
• Electron pairs involved in the actual bond are
  called BONDING PAIR or SHARED PAIR electrons
• Electrons not involved in the actual bond, those
  surrounding the rest of each element are called
  LONE PAIR electrons

10
POLAR BONDS AND MOLECULES

• Covalent bonds are formed by sharing electrons
  between two atoms
• The bonding pair of electrons is shared between
  both elements, but each atom is tugging on the
  bonding pair
• When atoms in a molecule are the same (diatomic)
  the bonding pair is shared equally?this bond is
  called non polar covalent
• When atoms in a molecule are different, the
  bonding pair of electrons are not shared
  equally?this is called a polar covalent bond

11
POLAR BONDS AND MOLECULES

• Why is the bonding pair not shared equally?
• The answer lies within electronegativity
• One of the elements is more electronegative than
  the other and therefore has a greater desire for
  the shared pair
• The MORE electronegative element tends to pull
  the electrons closer and thus has a slightly
  negative charge
• The LESS electronegative element has a slightly
  positive charge since the shared pair is being
  pulled away

12
POLAR BONDS AND MOLECULES

• Polar Molecules
• Molecule in which one end of the molecule is
  slightly negative and the other end is slightly
  positive
• Just because a molecule contains a polar bond
  DOES NOT mean the entire molecule is polar
• The effect of polar bonds on the polarity of an
  entire molecule depends on the shape of the
  molecule and the orientation of the polar bonds

13
POLAR BONDS AND MOLECULES

• Example CO2 O C O
• Carbon and Oxygen lie along the same axis.
• Bond polarities are going to cancel out because
  they are in opposite directions
• Carbon dioxide is a nonpolar molecule even though
  there are two polar bonds present
• Would cancel out if the polarities moved towards
  each other as well
• When polarities cancel out, the molecule is
  non-polar

14
POLAR BONDS AND MOLECULES

• Example H2O

15
INTRAMOLECULAR FORCES

• Intramolecular forces- (attraction is within the
  molecule)
• Types of forces covalent, Ionic, metallic

16
INTERMOLECULAR FORCES

• Intermolecular Forces- (attraction is between
  molecules)
• Hydrogen bonding
• Dipole-Dipole Bonding
• Dispersion (London/van der Waals)

17
INTRA/INTERMOLECULAR FORCES

• Which is a greater force Intermolecular or
  intramolecular?
• Rank the strength of each kind of inter and intra
  molecular force.

18
FORCES IN A MOLECULE

• Dipole-Dipole Forces
• Dipoles are created when equal but opposite
  charges are separated by a short distance
• Have to have a positive and a negative end so
  that one of the elements is pulling on the
  electron
• Only happens in polar molecules
• Dipole forces are extremely strong and lead to
  high melting and boiling points

19
FORCES IN A MOLECULE

• Hydrogen Bonding
• Very strong type of dipole force
• Only occurs when hydrogen is covalently bonded to
  a highly electronegative atom
• Always involves hydrogen
• Example HF, H2O, NH3

20
FORCES IN A MOLECULE

• H bonding and boiling point
•
•
• Why does boiling point increase as you go down a
  group?
• The increase in boiling point happens because the
  molecules are getting larger with more electrons,
  and so dispersion forces become greater

21
FORCES IN A MOLECULE

• London Dispersion Forces
• Electrons are in constant motion around a nucleus
• At any given time there might be more electrons
  on one side of an atom than on the other
• For a split second, the side with more electrons
  is negative, and the side with less electrons is
  positive

22
FORCES IN A MOLECULE

• London Dispersion Forces
• Recall that Noble Gases have a full outer shell
  and you have been told they are unreactive BUT
  due to London Dispersion Forces, they COULD bond
  for an instant
• Example Ar2
• London Forces are very weak
• The smaller the mass of the atom, the smaller the
  London Force

23
BOND DETAILS

• Terminology
• Bond strength-energy required to break a bond
• Bond axis-imaginary line joining two bonded atoms
  (example C-C)
• Bond length-the distance between two bonded atoms
  at their minimum potential enery the average
  distance between two bonded atoms
• Bond energy-energy required to break a chemical
  bond and form neutral isolated atoms
• Chemical compound tend to form so that each atom,
  by gaining, losing, or sharing electrons, has an
  octet of electrons in its highest occupied energy
  level

24
BOND DETAILS

• Comparison of Bond Length/Strength for Covalent
  Bond Types
• Longer bond less bond strength
• Rating 1-3 (with 3 as the largest and 1 as the
  smallest)

Bond Length Strength
Single 3 1
Double 2 2
Triple 1 3
25
BOND DETAILS

• Coordinate Covalent Bonds
• Very rare
• Tend to form harmful molecules
• Occurs when both of the bonding pair of electrons
  in a covalent bond come from only ONE of the
  atoms
• Example CO

26
BOND DETAILS

• Resonance
• Occurs when there are more than one possible
  structures for a molecule
• Refers to bonding in molecules or ions that
  cannot be correctly represented by a single Lewis
  structure
• Example CO2
• To indicate resonance, a double-headed arrow is
  placed between a molecules resonance structures
• Even though all of the structures are different,
  the number of bonding pair of electrons and lone
  pair of electrons stay the same in each structure

27
VSEPR THEORY

• Valence Shell Electron Pair Repulsion Theory
• Allows us to picture molecules in 3 dimensions
• Centers around the fact that electrons have
  negative charges and repel one another
• So electron pairs within a structure try to
  arrange themselves to be as far away from other
  pairs as possible

28
VSEPR THEORY

• Tetrahedral
• Central atom bonds to 4 atoms and has zero lone
  pairs
• CH4

29
VSEPR THEORY

• Pyramidal
• The central atom bonds to 3 atoms and has 1 lone
  pair of electons
• NH3

30
VSEPR THEORY

• Trigonal Planar
• The central atom bonds to 3 atoms and has zero
  lone pairs
• BF3

31
VSEPR THEORY

• Bent Triatomic
• The central atom bonds to 2 atoms and has 2 lone
  pair of electrons
• H2O

32
VSEPR THEORY

• Linear Triatomic
• The central atom bonds to 2 atoms and has zero
  lone pair of electrons
• CO2

33
VSEPR THEORY

• Linear
• One bond between 2 atoms
• HCl
