KnowItNow: Fast, Scalable Information Extraction from the Web

1

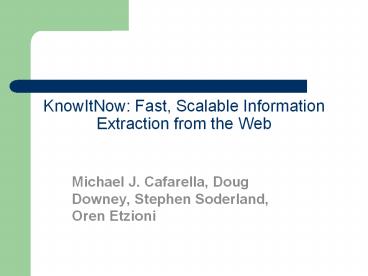

KnowItNow Fast, Scalable Information Extraction
from the Web

• Michael J. Cafarella, Doug Downey, Stephen
  Soderland, Oren Etzioni

2
The Problem

• Numerous NLP applications rely on search-engine
  queries to
• Extract information from the web.
• Compute statistics over the Web corpus.
• Search engines are extremely helpful for several
  linguistic tasks such as
• Computing usage statistics.
• Finding a subset of web documents to analyze in
  depth.

3
Problem With Search Engines

• Search engines were not designed as building
  blocks for NLP applications. As a result
• An NLP application is forced to issue literally
  millions of queries to search engines increasing
  processing time and limiting scalability.
• Fetching web documents is also time-consuming.
• Search engines are limiting the use of
  programmatic queries to their engines
• Google has placed hard quotas on the number of
  daily queries a program can issue.
• Other engines force applications to introduce
  courtesy waits between queries.

4
Example of the Problem KnowItAll

• KnowItAll works in a generate-and-test
  architecture extracting Information in 2 stages
• First, it Utilizes a small set of domain
  independent extraction patterns to generate
  candidate facts.
• Second, it automatically tests the plausibility
  of the candidate facts it extracts using
  pointwise mutual information (PMI) statistics
  computed from search-engine hit counts.

5
1st Stage in KnowItAll

• Take the generic pattern NP1 such as NPList2.
• This indicates that the head of each simple noun
  phrase (NP) in NPList2 is a member of the class
  named in NP1.
• Take as example the pattern for class City, and
  the sentence We provide tours to cities such as
  Paris, London, and Berlin.
• KNOWITALL extracts three candidate cities from
  the sentence Paris, London, Berlin.

6
2nd Stage in KnowItAll

• KnowItAll needs to assess the likelihood of the
  information it found.
• Verify that Paris is actually a city.
• It does that by computing the PMI between Paris
  and a set of k discriminator phrases that tend to
  have high mutual information with city names.
  (Paris is a city)
• This requires at least k search-engine queries
  for every candidate extraction!

7
The Solution

• A novel architecture for Information Extraction
  which does not depend on Web search-engine
  queries KnowItNow.
• Works over 2 stages like KnowItAll
• Uses a specialized search engine called the
  Binding Engine (or BE) which efficiently returns
  bindings in response to variabilized queries.
• Uses URNS, a combinatorial model, which estimates
  the probability that each extraction is correct
  without using any additional search engine queries

8
The Binding Engine vs. The Traditional Engine
9
The Traditional Engine

• Take the search query (Cities such as
  ltNounPhrasegt).
• Perform a traditional search engine query.
• For each such URL
• obtain the document contents.
• find the searched-for terms in the document text.
• Run the noun phrase recognizer to determine if
  text found satisfies the linguistic type
  requirement
• If it does, return the string.

10
Problems With Traditional Engine

• The search itself doesnt take a long time. Even
  if there are multiple search queries
• The second stage fetches a large number of
  documents, each fetch likely resulting in a
  random disk seek this stage executes slowly.
• this disk access is slow regardless of whether it
  happens on a locally-cached copy or on a remote
  document server.

11
The Binding Engine

• Why not use a table to store a list of terms and
  documents containing them?!
• The Binding Engine supports these queries
• Typed variables (such as NounPhrase)
• String-processing functions (such as head(X) or
  ProperNoun(X)).
• Standard query terms.
• It processes a variable by returning every
  possible string in the corpus that has a matching
  type, and that can be substituted for the
  variable and still satisfy the user's query.

12
How the Binding Engine Works?

• It uses a novel approach called the neighborhood
  index
• The neighborhood index is an augmented inverted
  index structure.
• For each term in the corpus, the index keeps a
  list of documents in which the term appears and a
  list of positions where the term occurs.
• The index also keeps a list of left-hand and
  right-hand neighbors at each position. (Adjacent
  text strings that satisfy a recognizer, e.g.
  NounPhrase)

13
How is The Binding Engine Better?

• K is the number of concrete terms in the query.
• B is the number of variable bindings found in the
  corpus.
• N is the number of documents in the corpus.
• Expensive processing such as part-of-speech
  tagging or shallow syntactic parsing is performed
  only once, while building the index, and is not
  needed at query time.

14
How is The Binding Engine Better?

• Average time to return the relevant bindings
• in response to a set of queries.
• 0.06 CPU minutes for BE.
• 8.16 CPU minutes for Nutch (Private search
  engine)

15
Disadvantages of The Binding Engine

• It consumes a large amount of disk space, as
  parts of the corpus text are folded into the
  index several times.
• The neighborhood index increased disk space four
  times that of a standard inverted index

16
The URNS Model

• We need a way to test that the extractions from
  the Binding Engine are correct
• KnowItAll issues queries to search engines and
  uses the PMI model to verify extractions.
• PMI is very efficient but it is also very slow.

17
How URNS works?

• URNS is a probabilistic model
• It takes the form of a classic balls-and-urns
  model from combinatorics.
• Each extraction is modeled as a labeled ball in
  an urn.
• A label represents either an instance of the
  target class or relation, or represents an error

18
How URNS works?

• C - the set of unique target labels C is the
  number of unique target labels in the urn.
• E - the set of unique error labels E is the
  number of unique error labels in the urn.
• num(b) - the function giving the number of balls
  labeled by b where b is a subset of C U E.
• num(B) is the multi-set giving the number of
  balls for each label b, where b is a subset of B.

19
How URNS works?

• The goal of an IE system is to discern which of
  the labels it extracts are in fact elements of C.
• Given that a particular label x was extracted k
  times in a set of n draws from the urn, what is
  the probability that x is a subset of C?

20
Alternative to URNS

• Items that were extracted more often are more
  likely to be true.
• i.e. Extractions with higher frequencies are
  true.

21
Experiments

• Recall how many distinct extractions does each
  system return at high precision?
• Time how long did each system take to produce
  and rank its extractions?
• Extraction Rate how many distinct high quality
  extractions does the system return per minute?
  The extraction rate is simply recall divided by
  time.

22
KnowItNow vs. KnowItAllTested on relation
Country
23
KnowItNow vs. KnowItAllTested on relation
CapitalOf
24
KnowItNow vs. KnowItAllTested on relation Corp
25
KnowItNow vs. KnowItAllTested on relation CeoOf
26
KnowItNow vs. KnowItAll
27
Contributions

• A novel architecture for Information Extraction
  which does not depend on Web search-engine
  queries.
• Extract tens of thousands of facts from the Web
  in minutes instead of days.
• KnowItNow's extraction rate is two to three
  orders of magnitude greater than KnowItAll's.
