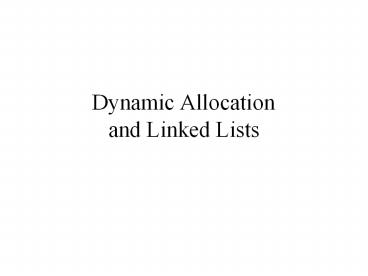

Dynamic Allocation and Linked Lists

1
Dynamic Allocation and Linked Lists
2
Dynamic memory allocation in C

• C uses the functions malloc() and free() to
  implement dynamic allocation.
• malloc is defined in stdlib.h and malloc.h header
  files.
• malloc returns a void pointer.
• the pointer returned from malloc requires a type
  cast to make it usable.

3
Type Casting

• To make one data type appear like another you can
  use a type cast.
• int I
• int a (int)sqrt((float) I )
• To make the void pointer returned by malloc look
  like your struct you must typecast it to a
  pointer to a struct.

4
Example

• struct rec
• char LastName41
• char FirstName41
• struct rec r
• r (struct rec) malloc( sizeof(struct rec))

5
Freeing Memory

• Memory allocated with malloc must be released
  after you are done with them.
• this memory is released by calling the function
  free().
• Since free expects as an argument the pointer
  returned by malloc it expects a void pointer.
• free( r )

6
Linked List

• A linked list is a basic data structure.
• For easier understanding divide the linked list
  into two parts.
• Nodes make up linked lists.
• Nodes are structures made up of data and a
  pointer to another node.
• Usually the pointer is called next.

7
Nodes

• struct node
• struct rec r
• struct node next

8
LIST

• The list will contain a pointer to the start of
  the list.
• For our purposes all data will be added to the
  start of the list.
• Initialize the start pointer to NULL.

9
Creating a New Node

• Allocate space for a new node.
• Set the next pointer to the value of NULL
• Set the data value for the node.

10
Adding Nodes to the List

• If the start node is null then the start node
  becomes the new node.
• If start is not null then start becomes the new
  nodes next and the start becomes the new node.

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
