Hydrogen

1

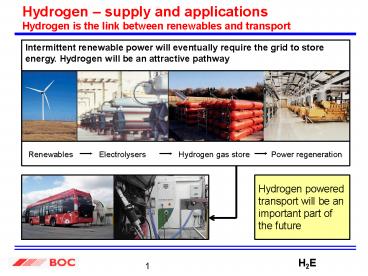

Hydrogen supply and applicationsHydrogen is
the link between renewables and transport
Intermittent renewable power will eventually
require the grid to store energy. Hydrogen will
be an attractive pathway
Renewables
Electrolysers
Hydrogen gas store
Power regeneration
Hydrogen powered transport will be an important
part of the future
2
SupplyBrown hydrogen will help build the case
for green hydrogen

• Presently, hydrogen is used as a chemical and is
  commonly produced in large quantities
• Highly efficient and cost effective process
• Relatively simple process
• Relatively inflexible
• In the future, hydrogen produced by electrolysis
  is a way of capturing energy from excess
  renewables

Finally when the energy is released the only
bi-product is water
CH4 H2O CO 3H2
3
The gas is generally transported in
cylindersHydrogen infrastructure is not a
barrier to start the process
7m3
2500m3
100m3
1000m3
Trailers
Single Cylinders
Cylinder packs
Onsite cylinders
29,000m3
Liquid hydrogen tanker
43,000m3 per hour
4
Improving how the public perceive the risks of
hydrogen is our top issue

• Hydrogen is a safe gas when engineered correctly
• Its properties are
• Defuses readily
• Extremely flammable
• Gas at atmospheric temperature and pressure
• Colourless
• Odourless
• Tasteless
• Smallest molecule
• Lightest specific density (14 times lighter than
  air)
• Non-toxic, simple asphyxiant
• Non-corrosive
• Metallurgical hydrogen embrittlement
• Normal boiling point -253 C

The composition of town gas Carbon Dioxide
19.5 Carbon Monoxide 3 Methane 28.5
Hydrogen 49
We lived with hydrogen all around us before
5
ApplicationsExamples of projects that socialise
the use of hydrogen
The best projects combine good PR with knowledge
advancement
