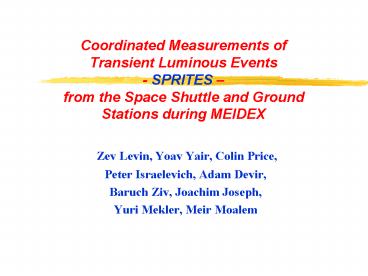

Coordinated Measurements of Transient
Luminous Events - SPRITES from the Space
Shuttle and Ground Stations during MEIDEX

• Zev Levin, Yoav Yair, Colin Price,
• Peter Israelevich, Adam Devir,
• Baruch Ziv, Joachim Joseph,
• Yuri Mekler, Meir Moalem

2
The Global Circuit 1
Ionosphere
Precipitation
Earth
Fair weather field
250kV

• The atmosphere is like a spherical capacitor with
  the outside charged positively and the inside
  (ground) charge negatively.
• The potential difference between these two
  electrodes is about 250,000 Volts. Its average
  value remains fairly constant with time.

3
The Global Circuit 2

• Although the atmosphere is a poor conductor an
  electrical current is continuously discharging
  the capacitor.
• The electric field starts at about 120 V/M near
  the ground and decreases exponentially with
  height. At heights above clouds it is normally as
  low as 1 mV/m.
• Lightning flashes are the generators that
  maintain the atmospheric electric field.

4
The Charge Distribution in Thunderclouds
5
Global Lightning Distribution for June 1999
6
Lightning

• Lightning are much more common over land than
  over the sea.
• Most lightning strokes are inter cloud. They
  simply discharge the charge centers that have
  been developed.
• About 40 of all flashes are cloud to ground and
  most of these are negative bringing negative
  charge to ground.
• About 10-20 of the flashes to ground are
  positive positive charge to ground.
• The reason for these positive flashes is not yet
  known, but its frequency of occurrence is
  related to either the tilt of the clouds
  and/or to the size of the storms (large mesoscale
  convective systems).

7
The ratio N PGF/NGF varies during the lifetime
of the storm. Sometimes N gt 1.
N0.3
Early part of the storm
8
N0.52
Mature part of the storm
9
N6.25
Decaying part of the storm
10
SPRITES

• About 10 years ago, the Transient Luminous
  Emissions were first discovered and were given
  the names of Sprites (most common), Blue Jets and
  Elves.

11
Sprites etc.
12
Transient Luminous Events
13
Red Sprites

• Usually associated with very strong PGFs (peak
  current gt 130kA, 77 probability).
• Stratiform region of MCS
• Initiate at 70-75 km, moves both up and down.
• Terminal height 85-90 km. Lifetime few msec.
  500 kR.
• Speed 107 m/sec.
• Illuminated Volume gt 104 km3.

14
Blue Jets

• Not associated with PGFs, but occur in T-storms
  with intense NGF hail strong updrafts
• Terminal altitude 32-43 km, Speed 11224 km/sec.
  Ionized N2
• Not so rare, but hard to observe from the ground.
  10 MR

15
Sprites from Space
17 events from payload-Bay cameras during the MLE
(Boeck et al, 1995) STS 34 (1989), STS 32
(1990), STS 31 (1990), STS 41 (1990)STS 43
(1991), STS 48 (1991), STS 46 (1991)
16
Sprites observations with the MEIDEX cameras

• Primarily with the 665nm filter for Red Sprites
  and Elves and with the 380 and 470nm filters to
  record Blue Jets.
• Continuous recording of the Earths limb from the
  direction of the dusk terminator towards the
  night side, preferably before midnight local time
  at the observed area.
• The Astronaut will use the SEKAI LL-Video color
  camera to look for major thunderstorm centers.

17
On-Orbit Operations and Ground Stations for
Sprite Measurements
Chile
18
Configuration for Viewing Sprites
19
Forecast of Sprites --forecast of regions of
strong convection and cloud top temp. of around
70C
20
MEIDEX-Sprite ROIs
21
The atmosphere as a wave guide
22
Ground Observations Israel

• During the 16-day flight, two field sites in the
  Negev Desert in Israel will be used to collect
  ELF (SR) and VLF data related to sprite activity.
• Both are operated by TAU.

23
Global Ground Observations

• Optical measurements Japan (Osaka, Sendai),
  Taiwan (Taipei), USA YRFS, Stanford (?)
• ELF measurements Long Island, Hungary,
  Antarctica
• VLF network Germany, S.Africa, Chile,
  California, New-Zealand, Japan USA (Duke)
• Lightning Location Systems Japan, Brazil, NLDN

24
Summary

• Unique opportunity for global coverage
• Multi-sensor measurements
• The first ever spectral Calibrated measurements
  from space
