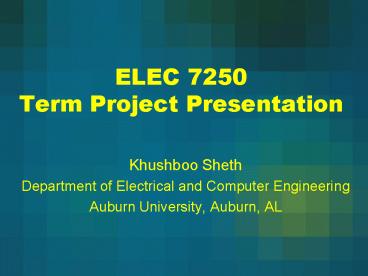

ELEC 7250 Term Project Presentation

1
ELEC 7250Term Project Presentation

• Khushboo Sheth
• Department of Electrical and Computer Engineering
• Auburn University, Auburn, AL

2
Problem 1

• Problem statement Develop a compiler for the
  hierarchical format with 2 options for the user
  Default option and Hierarchical option
• Algorithm used
• User is asked for the circuit and the option
• Hierarchical Option
• Hierarchical file read line by line and HierSim
  file having the Hierarchical simulation table is
  given to the user.
• Default Option
• The different Hierarchical blocks are stored as
  an element in the block array and as the
  hierarchical netlist is read the blocks are
  flattened and stored in the Object file having
  the flat netlist.
• This Object file is then read to create the Flat
  simulation table in FlatSim file.

3
Problem 2

• Problem Statement Develop a logic Simulator for
  combinational circuits consisting of zero-delay
  Boolean gates with hierarchical bench format
  netlist input and fully specified input vectors
  and expected responses.
• Algorithm used
• Firstly, given circuit is fed to the levelizer
  where the unlevelized circuit is levelized.
• Levelized circuit simulated by reading the given
  netlist line by line and performing the specified
  operations.

4
Problem 3

• Problem Statement Introduce a design error in
  the netlist and have the simulator list the
  failing vectors and POs where errors are
  observed.
• Algorithm used
• The circuit netlist and the fully specified input
  vectors and the expected responses is taken from
  the user.
• Simulator reads the input vectors from the given
  input file and operates with those vectors, the
  calculated responses are then compared with the
  expected responses.
• If the circuit is faulty the list of failing
  vectors and POs where the errors are observed is
  then given to the user.

5
Problem 4

• Problem Statement Attempt to diagnose the design
  error.
• Algorithm used
• Once again, the circuit netlist and fully
  specified input vectors and the expected
  responses is taken from the user.
• The circuit is levelized by the levelizer
• The circuit is then diagnosed for faults
• The simulator compares the calculated responses
  of the given vectors with the expected responses.

• The comparison with the true circuit and the back
  trace from the primary failing output is used for
  the diagnosis.

6
Results of the Simulation of 4-bit adder circuit
7
Results of the Simulation ofISCAS85 circuits
8
Conclusion

• Execution time increases with the number of gates
  and number of input vectors
• Diagnosis Algorithm can be improved for better
  results.

9
Thank You !!!
