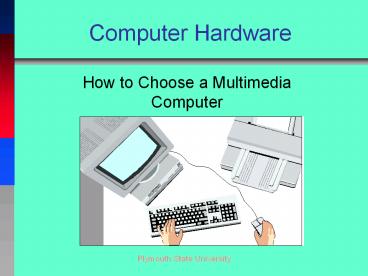

Computer Hardware

• How to Choose a Multimedia Computer

2
ENIAC - The FirstElectronic Digital Computer
3
The Four Functions of a Computer
DATA
INPUT
PROCESSING
OUTPUT
INFORMATION
STORAGE
4
The System Unit
Power Supply
Hard Drives or CD-ROM Drives
System Board
Floppy Drive
Expansion Card
5
Directions of Computer Development

• Miniaturization
• Transistors
• Integrated circuits
• Solid state
• Semiconductor
• Chip

6
Integrated Circuit

• IC, or "chip"
• Made from Silicon
• Includes Transistors, Resistors Capacitors

7
Steps in Manufacture of a Microchip

• Make large drawing. Reduce drawing hundreds of
  times to microscopic size.
• Duplicate reduced photo many times on sheet.

8
Etched Silicon Wafer
9
Future Developments in Processing Storage

• Moores Law
• Gordon Moore predicted the number of transistors
  on a silicon chip will double every 18 months
• It has held up since the 1960s!

10
The System Unit The Basics

• The CPU
• Older CPUs processing speeds are in MegaHertz
• 1 MHz 1 Million ticks per second
• Current CPUs processing speeds are in GigaHertz
• 1 GHz 1 Billion ticks per second
• The faster a CPU runs, the more power it
  consumes, and the more heat it generates

11
Secondary Storage, Primary Storage and the CPU
Secondary Storage (Disk)
CPU
Load
Main Memory (RAM)
Execute
12
How Memory Works RAM, ROM, Flash

• Types of memory chips
• RAM - Random Access Memory, used to temporarily
  hold software instructions and data
• ROM
• Flash

13
How Memory Works RAM, ROM, Flash

• Types of memory chips
• RAM
• ROM - Read-Only Memory, which cannot be written
  on or erased by the computer user. Contains
  fixed start-up instructions
• Flash

14
How Memory Works RAM, ROM, CMOS, Flash

• Types of memory chips
• RAM
• ROM
• Flash - can be erased and reprogrammed more than
  once

15
Bits Bytes

• Kilobyte
• Megabyte
• Gigabyte
• Terabyte
• Petabyte

16
Binary Coding Schemes

• ASCII
• EBCDIC
• Unicode

17
Microchips

• Microprocessors
• Memory
• Logic
• Communications
• Graphics

18
Central Processing Unit

• Control Unit
• Arithmetic/Logic Unit
• Registers

19
CU
CPU

• ALU

Registers
20
Control Unit

• Controls step-by-step operation of computer

21
Arithmetic/Logic Unit

• Arithmetic
• 2 4 6
• 10 - 6 4
• Logic
• 9 gt 6
• 3 lt 7
• 5 5

22
Registers

• Temporary storage locations within the CPU

23
CPU Operation

• Machine Cycle
• Time it takes to process one machine instruction
• Two parts
• Fetch Cycle - Get instruction, decode it, set up
• Execution Cycle - Carry out the instruction

24
TOTAL 13 12
CPU

• CU

ALU
Registers
25
TOTAL 13 12
CPU
ADD

• CU

ALU
26
TOTAL 13 12
CPU
ADD

• CU

ALU
13
27
TOTAL 13 12
CPU
ADD

• CU

ALU
13
12
28
TOTAL 13 12
CPU
ADD

• CU

ALU
13
12
25
29
TOTAL 13 12
CPU
ALU

• CU

STORE
13
12
25
30
Two Types of Storage

• PRIMARY Storage - Main memory or RAM
• SECONDARY Storage - Auxiliary Storage (disks,
  Flash etc.)

31
Disk Drives
Drive A Floppy DRIVE
Drive C Hard Drive (Internal)
32
Secondary Storage DevicesHard Disks

• Nonremovable disks
• Known as a fixed disk
• Capacity up to 1 terabyte
• Consists of 4 - 3.5 inch metallic platters

33
Hard Disk Drive
34
Magnetic Disk Uses Direct Access
1 5 6 3 2
4 7
35
Magnetic Disk Storage
Rotational Delay
Seek Time
36
Disk Heads
Read/Write Head
Hair
Dust
Magnetic Disk Surface
37
Head Crash
Read/Write Head
Disk Surface
38
Compact Disk (CD)
39
Secondary Storage DevicesOptical Disks

• CD compact disk
• about 700 megabytes
• CD-ROM
• CD-R
• CD-RW

40
Secondary Storage DevicesOptical Disks

• DVD digital video disk
• 4.7 17 gigabytes
• DVD-ROM read-only
• DVD-R rewritable one time
• Reusable types
• DVD-RW
• DVD-RAM

41
Flash Memory

• Flash memory is nonvolatile

42
Input and Output

• INPUT - We provide the DATA to be processed
• OUTPUT - We use the INFORMATION produced

43
Input Output Hardware

• Input hardware
• Translates words, numbers, sounds, and pictures
  into numbers
• Output hardware
• Translates numbers back into words, numbers,
  sounds, and pictures

44
Some Input Devices

• Keyboards
• Pointing devices
• Mouse
• Trackball
• Touch screen
• Pen input
• Source data-entry devices
• Scanner
• Text (OCR)
• Voice
• Video
• MICR
• FAX

45
Input Hardware

• Keyboards convert letters, numbers, and
  characters into electrical signals
• English keyboards differ from foreign language
  keyboards

German Keyboard
46
Input HardwareWebcams and Video-input Cards

• Webcams
• Video cameras attached to a computer to record
  live moving images then post them to a website in
  real time
• Require special software, usually included with
  the camera

47
Input HardwareCamera Phones

• Digital cameras are now on cell phones
• Convenience of being able to take photos, then
  instantly email or message them to someone else

48
Touch Screen
49
Input HardwareSource Data-Entry Devices

• Scanning devices imaging systems
• Scanning devices bar code readers
• Magnetic-ink character recognition (MICR)
• Optical-mark recognition (OMR)
• Optical character recognition (OCR)
• Scanning devices fax machines

50
Check Processing
9999999 12345687
51
Source Data-Entry Device
52
Bar Code
53
Smart Cards
Similar to credit cards Contain a microprocessor
54
Digital Camera
55
GPS
56
Biometrics

• Fingerprints
• Retina Scanning
• Face Recognition

57
Output Hardware

• Softcopy
• Data that is shown on a display screen or is in
  audio or voice form exists electronically
• Output that is ephemeral in nature
• Hardcopy
• Printed and film output
• Output that is more permanent in nature

58
Display Screens
59
Resolution

• Resolution

..................................
Resolution TOTAL PIXELS
dots across by dots down Example 1024 X 768
60
Types of Terminals

• Dumb Terminals
• Intelligent Terminals

61
Specialized Terminals

• ATMs
• POSs

62
MIDI Music
63
Output HardwareHardcopy Devices

• Impact printers
• Dot-matrix
• Nonimpact printers
• Laser
• Ink-jet

64
Other Types of Output

• Projectors
• COM
• Machine Control
• Voice
• House Control Center

65
Machine Control
66
Health Matters

• Repetitive stress injuries
• Carpal tunnel syndrome
• Eyestrain headaches
• Back neck pains
• Electromagnetic fields
• Noise

67
Ergonomics

• Fitting the job environment to the worker
• Purpose make working conditions and equipment
  safer and more efficient

68
Ergonomic Considerations

• Chair
• Keyboard Height
• Wrist Rest
• Monitor Height
• Lighting
• Noise

69
Ergonomic Keyboard
70
Ergonomics

• Eye strain
• Radiation
• Glare

71
Ethics

• Theft
• Counterfeiting

72
