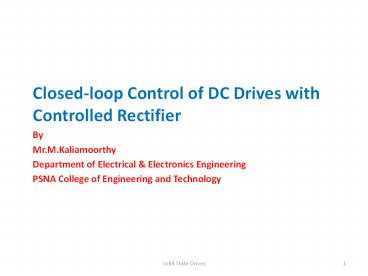

Closed-loop Control of DC Drives with Controlled Rectifier

1

• Closed-loop Control of DC Drives with Controlled
  Rectifier
• By
• Mr.M.Kaliamoorthy
• Department of Electrical Electronics
  Engineering
• PSNA College of Engineering and Technology

2
Outline

• Closed Loop Control of DC Drives
• Closed-loop Control with Controlled Rectifier
• Two-quadrant
• Transfer Functions of Subsystems
• Design of Controllers
• Closed-loop Control with Field Weakening
• Two-quadrant
• Closed-loop Control with Controlled Rectifier
• Four-quadrant
• References

3
Closed Loop Control of DC Drives

• Closed loop control is when the firing angle is
  varied automatically by a controller to achieve a
  reference speed or torque
• This requires the use of sensors to feed back the
  actual motor speed and torque to be compared with
  the reference values

Output signal
Referencesignal
Plant
Controller

?
Sensor
4
Closed Loop Control of DC Drives

• Feedback loops may be provided to satisfy one or
  more of the following
• Protection
• Enhancement of response fast response with
  small overshoot
• Improve steady-state accuracy
• Variables to be controlled in drives
• Torque achieved by controlling current
• Speed
• Position

5
Closed Loop Control of DC Drives

• Cascade control structure
• Flexible outer loops can be added/removed
  depending on control requirements.
• Control variable of inner loop (eg speed,
  torque) can be limited by limiting its reference
  value
• Torque loop is fastest, speed loop slower and
  position loop - slowest

6
Closed Loop Control of DC Drives

• Cascade control structure
• Inner Torque (Current) Control Loop
• Current control loop is used to control torque
  via armature current (ia) and maintains current
  within a safe limit
• Accelerates and decelerates the drive at maximum
  permissible current and torque during transient
  operations

Torque (Current) Control Loop
7
Closed Loop Control of DC Drives

• Cascade control structure
• Speed Control Loop
• Ensures that the actual speed is always equal to
  reference speed ?
• Provides fast response to changes in ?, TL and
  supply voltage (i.e. any transients are overcome
  within the shortest feasible time) without
  exceeding motor and converter capability

Speed Control Loop
8
Closed Loop Control with Controlled Rectifiers
Two-quadrant
Current Control Loop

• Two-quadrant Three-phase Controlled Rectifier DC
  Motor Drives

Speed Control Loop
9
Closed Loop Control with Controlled Rectifiers
Two-quadrant

• Actual motor speed ?m measured using the
  tachogenerator (Tach) is filtered to produce
  feedback signal ?mr
• The reference speed ?r is compared to ?mr to
  obtain a speed error signal
• The speed (PI) controller processes the speed
  error and produces the torque command Te
• Te is limited by the limiter to keep within the
  safe current limits and the armature current
  command ia is produced
• ia is compared to actual current ia to obtain a
  current error signal
• The current (PI) controller processes the error
  to alter the control signal vc
• vc modifies the firing angle ? to be sent to the
  converter to obtained the motor armature voltage
  for the desired motor operation speed

10
Closed Loop Control with Controlled Rectifiers
Two-quadrant

• Design of speed and current controller (gain and
  time constants) is crucial in meeting the dynamic
  specifications of the drive system
• Controller design procedure
• Obtain the transfer function of all drive
  subsystems
• DC Motor Load
• Current feedback loop sensor
• Speed feedback loop sensor
• Design current (torque) control loop first
• Then design the speed control loop

11
Transfer Function of Subsystems DC Motor and
Load

• Assume load is proportional to speed
• DC motor has inner loop due to induced emf
  magnetic coupling, which is not physically seen
• This creates complexity in current control loop
  design

12
Transfer Function of Subsystems DC Motor and
Load

• Need to split the DC motor transfer function
  between ?m and Va
• (1)
• where
• (2)
• (3)
• This is achieved through redrawing of the DC
  motor and load block diagram.

Back
13
Transfer Function of Subsystems DC Motor and
Load

• In (2),
• - mechanical motor time constant (4)
• - motor and load friction coefficient (5)
• In (3),
• (6)
• (7)
• Note J motor inertia, B1 motor friction
  coefficient, BL load friction coefficient

Back
14
Transfer Function of Subsystems Three-phase
Converter

• Need to obtain linear relationship between
  control signal vc and delay angle ? (i.e. using
  cosine wave crossing method)
• (8)
• where vc control signal (output of current
  controller)
• Vcm maximum value of the
  control voltage
• Thus, dc output voltage of the three-phase
  converter
• (9)

15
Transfer Function of Subsystems Three-phase
Converter

• Gain of the converter
• (10)
• where V rms line-to-line voltage of
  3-phase supply
• Converter also has a delay
• (11)
• where fs supply voltage frequency
• Hence, the converter transfer function
• (12)

Back
16
Transfer Function of Subsystems Current and
Speed Feedback

• Current Feedback
• Transfer function
• No filtering is required in most cases
• If filtering is required, a low pass-filter can
  be included (time constant lt 1ms).
• Speed Feedback
• Transfer function
• (13)
• where K? gain, T? time constant
• Most high performance systems use dc tacho
  generator and low-pass filter
• Filter time constant lt 10 ms

17
Design of Controllers Block Diagram of Motor
Drive
Current Control Loop
Speed Control Loop

• Control loop design starts from inner (fastest)
  loop to outer(slowest) loop
• Only have to solve for one controller at a time
• Not all drive applications require speed control
  (outer loop)
• Performance of outer loop depends on inner loop

18
Design of Controllers Current Controller
DC Motor Load
Controller
Converter

• PI type current controller
  (14)
• Open loop gain function
• (15)
• From the open loop gain, the system is of 4th
  order (due to 4 poles of system)

19
Design of Controllers Current Controller

• If designing without computers, simplification
  is needed.
• Simplification 1 Tm is in order of 1 second.
  Hence,
• (16)
• Hence, the open loop gain function becomes
• i.e. system zero cancels the controller pole
  at origin.

(17)
20
Design of Controllers Current Controller

• Relationship between the denominator time
  constants in (17)
• Simplification 2 Make controller time constant
  equal to T2
• (18)
• Hence, the open loop gain function becomes
• i.e. controller zero cancels one of the system
  poles.

21
Design of Controllers Current Controller

• After simplification, the final open loop gain
  function
• (19)
• where
  (20)
• The system is now of 2nd order.
• From the closed loop transfer function
  ,
• the closed loop characteristic equation is
• or when expanded becomes
  (21)

22
Design of Controllers Current Controller

• Design the controller by comparing system
  characteristic equation (eq. 21) with the
  standard 2nd order system equation
• Hence,
• So, for good dynamic performance ?0.707
• Hence equating the damping ratio to 0.707 in (23)
  we get

23
Squaring the equation on both sides
24
Which leads to
An approximation K gtgt 1
Equating above expression with (20) we get the
gain of current controller
Back
25
Design of Controllers Current loop 1st order
approximation

• To design the speed loop, the 2nd order model of
  current loop must be replaced with an approximate
  1st order model
• Why?
• To reduce the order of the overall speed loop
  gain function

2nd order current loop model
26
Design of Controllers Current loop 1st order
approximation

• Approximated by adding Tr to T1 ?
• Hence, current model transfer function is given
  by
• (24)

1st order approximation of current loop
Full derivation available here.
27
Design of Controllers Current Controller

• After simplification, the final open loop gain
  function

• Where

• Since

• and since

• Therefore

28
Design of Controllers Current loop 1st order
approximation

• where

  (26)
• (27)
• (28)
• 1st order approximation of current loop used in
  speed loop design.
• If more accurate speed controller design is
  required, values of Ki and Ti should be obtained
  experimentally.

29
Design of Controllers Speed Controller
DC Motor Load

• PI type speed controller
  (29)
• Assume there is unity speed feedback
• (30)

1st order approximation of current loop
30
Design of Controllers Speed Controller
DC Motor Load

• Open loop gain function
• (31)
• From the loop gain, the system is of 3rd order.
• If designing without computers, simplification
  is needed.

1st order approximation of current loop
31
Design of Controllers Speed Controller

• Relationship between the denominator time
  constants in (31)
• (32)
• Hence, design the speed controller such that
• (33)
• The open loop gain function becomes
• i.e. controller zero cancels one of the system
  poles.

32
Design of Controllers Speed Controller

• After simplification, loop gain function
• (34)
• where
  (35)
• The controller is now of 2nd order.
• From the closed loop transfer function
  ,
• the closed loop characteristic equation is
• or when expanded becomes (36)

33
Design of Controllers Speed Controller

• Design the controller by comparing system
  characteristic equation with the standard
  equation
• Hence
• (37)
• (38)
• So, for a given value of ?
• use (37) to calculate ?n
• Then use (38) to calculate the controller gain KS


34
Closed Loop Control with Field Weakening
Two-quadrant

• Motor operation above base speed requires field
  weakening
• Field weakening obtained by varying field winding
  voltage using controlled rectifier in
• single-phase or
• three-phase
• Field current has no ripple due to large Lf
• Converter time lag negligible compared to field
  time constant
• Consists of two additional control loops on field
  circuit
• Field current control loop (inner)
• Induced emf control loop (outer)

35
Closed Loop Control with Field Weakening
Two-quadrant
Field weakening
36
Closed Loop Control with Field Weakening
Two-quadrant
Field weakening
Field current controller (PI-type)
Estimated machine -induced emf
Induced emf controller (PI-type with limiter)
Field current reference
Induced emf reference
37
Closed Loop Control with Field Weakening
Two-quadrant

• The estimated machine-induced emf is obtained
  from
• (the estimated emf is machine-parameter
  sensitive and must be adaptive)
• The reference induced emf e is compared to e to
  obtain the induced emf error signal (for speed
  above base speed, e kept constant at rated emf
  value so that ? ? 1/?)
• The induced emf (PI) controller processes the
  error and produces the field current reference
  if
• if is limited by the limiter to keep within the
  safe field current limits
• if is compared to actual field current if to
  obtain a current error signal
• The field current (PI) controller processes the
  error to alter the control signal vcf (similar to
  armature current ia control loop)
• vcf modifies the firing angle ?f to be sent to
  the converter to obtained the motor field voltage
  for the desired motor field flux

38
Closed Loop Control with Controlled Rectifiers
Four-quadrant

• Four-quadrant Three-phase Controlled Rectifier DC
  Motor Drives

39
Closed Loop Control with Controlled Rectifiers
Four-quadrant

• Control very similar to the two-quadrant dc motor
  drive.
• Each converter must be energized depending on
  quadrant of operation
• Converter 1 for forward direction / rotation
• Converter 2 for reverse direction / rotation
• Changeover between Converters 1 2 handled by
  monitoring
• Speed
• Current-command
• Zero-crossing current signals
• Selector block determines which converter has
  to operate by assigning pulse-control signals
• Speed and current loops shared by both converters
• Converters switched only when current in outgoing
  converter is zero (i.e. does not allow
  circulating current. One converter is on at a
  time.)

40
References

• Krishnan, R., Electric Motor Drives Modeling,
  Analysis and Control, Prentice-Hall, New Jersey,
  2001.
• Rashid, M.H, Power Electronics Circuit, Devices
  and Applictions, 3rd ed., Pearson, New-Jersey,
  2004.
• Nik Idris, N. R., Short Course Notes on
  Electrical Drives, UNITEN/UTM, 2008.

41
DC Motor and Load Transfer Function - Decoupling
of Induced EMF Loop

• Step 1
• Step 2

42
DC Motor and Load Transfer Function - Decoupling
of Induced EMF Loop

• Step 3
• Step 4

Back
43
Cosine-wave Crossing Control for Controlled
Rectifiers
Vm
Input voltageto rectifier
Cosine wave compared with control voltage vc
Cosine voltage
Vcmcos(?) vc
Results of comparison trigger SCRs
Output voltageof rectifier
Back
44
Design of Controllers Current loop 1st order
approximation
Back
45
Go to
46
Go to
47
Go to
Go to
48
(No Transcript)
49
(No Transcript)
