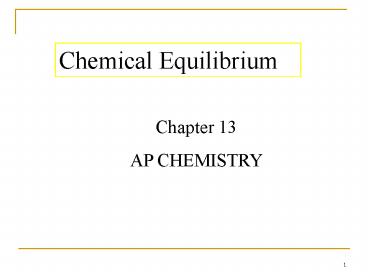

Chemical Equilibrium
Chapter 13 AP CHEMISTRY
2
Chemical Equilibrium

• The state where the concentrations of all
  reactants and products remain constant with time.
• On the molecular level, there is frantic
  activity. Equilibrium is not static, but is a
  highly dynamic situation.

3
The Concept of Equilibrium

• Chemical equilibrium occurs when a reaction and
  its reverse reaction proceed at the same rate.

4
The Concept of Equilibrium

• As the substance warms it begins to decompose
• N2O4(g) ? 2NO2(g)
• A mixture of N2O4 (initially present) and NO2
  (initially formed) appears brown.
• When enough NO2 is formed, it can react to form
  N2O4
• 2NO2(g) ? N2O4(g).
• At equilibrium, as much N2O4 reacts to form NO2
  as NO2 reacts to re-form N2O4

5
The Concept of Equilibrium

• As a system approaches equilibrium, both the
  forward and reverse reactions are occurring.
• At equilibrium, the forward and reverse reactions
  are proceeding at the same rate.

6
A System at Equilibrium

• Once equilibrium is achieved, the amount of each
  reactant and product remains constant.

7
Depicting Equilibrium

• Since, in a system at equilibrium, both the
  forward and reverse reactions are being carried
  out, we write its equation with a double arrow.

8
Notes on Equilibrium Expressions (EE)

• For a given equation jA kB ? lC mD
• K does not include any pure solids or liquids
• The expression shows products divided by
  reactants
• Like the rate constant, k, the units of K depend
  on the experiment being performed
• For the reverse reaction K 1/K (reactants
  and products switch)
• Sometimes you will see K written as Kc
• Law of mass action

9
Equilibrium Expression

• Write the equilibrium expression for
• 4NH3(g) 7O2(g) 4NO2(g) 6H2O(g)
• Complete sample problems 1-4. See sample
  problems 13.1 and 13.2 in your textbook for more
  worked examples.

Complete sample problems 1-4.
10
Significance of Equilibrium Expression

• The inherent tendency for a reaction is occur is
  indicated by the magnitude of K.
• A K value much larger than 1 means that at
  equilibrium the reaction system will consist of
  mainly product equilibrium lies to the right
• A very small K means that the system at
  equilibrium will consist mainly of reactants
  equilibrium position is far to the left
• The size of K and the time required to reach
  equilibrium are NOT directly related.

Complete sample problem 5.
11
Notes on Equilibrium Expressions (EE)

• For a reaction multiplied by an integer, n,
  Knew (Korig)n
• See sample exercise 13.2(c) on page 614.
• For a given reaction, K is dependent only on
  temperature

12
Heterogeneous Equilibria

• . . . are equilibria that involve more than one
  phase.
• CaCO3(s) CaO(s) CO2(g)
• K CO2
• The position of a heterogeneous equilibrium does
  not depend on the amounts of pure solids or
  liquids present.

13
Practice Problem

• Consider the reaction represented by the
  equation
• Fe3(aq) SCN-(aq) ? FeSCN2(aq)
• In trial 1, you start with 6.00 M Fe3(aq) and
  10.0 M SCN-(aq), and at equilibrium the
  concentration of FeSCN2(aq) is 4.00 M.
• What is the value of the equilibrium constant for
  this reaction?

Fe3(aq) SCN-(aq) ?
FeSCN2(aq) Initial
Change
Equilibrium
14
Practice Problem

• Fe3(aq) SCN-(aq) ?
  FeSCN2(aq)
• Equilibrium 2.00 6.00 4.00

Complete sample problems 6 7 for more practice
using ICE charts.
15
Equilibrium Constant in Terms of Pressure

• Equilibria involving gases can be described in
  terms of either pressure or concentrations.
• The relationship can be seen using the Ideal Gas
  Law, PVnRT.
• Rearranging this equation gives
• n/V represents concentration in M.

Complete sample problem 8 now.
16
K vs. Kp

• For any reaction
• Kp K(RT)Dn
• Dn sum of coefficients of gaseous products
  minus sum of coefficients of gaseous reactants.

Complete Sample Problem 9.
17
Reaction Quotient

• After the equilibrium constant (K) is known, we
  can use it to determine if a reaction is at
  equilibrium.
• The reaction quotient, Q, has the same form as
  the equilibrium constant expression EXCEPT
  initial concentrations are used instead of
  equilibrium concentrations.

• H2(g) F2(g) 2HF(g)

18
Predicting the Direction of a Reaction Using
Reaction Quotient

• If Q gt K then the reverse reaction must occur to
  reach equilibrium (i.e., products are consumed,
  reactants are formed, the numerator in the
  equilibrium constant expression decreases and Q
  decreases until it equals K).
• If Q lt K then the forward reaction must occur to
  reach equilibrium.
• If Q K then the reaction is at equilibrium.

19
Practice Problem Part 2

• Using the previous reaction
• Fe3(aq) SCN-(aq) ? FeSCN2(aq) and the K
  value we determined K 0.33 determine if the
  following concentrations are at equilibrium
• Initial10.0 M Fe3(aq), 8.00 M SCN-(aq), and
  2.00 M FeSCN2-

Complete sample problems 10 11.
20
Solving Equilibrium Problems

• 1. Balance the equation.
• 2. Write the equilibrium expression.
• 3. List the initial concentrations.
• 4. Calculate Q and determine the shift to
  equilibrium.

21
Solving Equilibrium Problems(continued)

• 5. Define the change needed to reach equilibrium.
• 6. Substitute equilibrium concentrations into
  equilibrium expression and solve.
• 7. Check calculated concentrations by calculating
  K.

Complete more complex sample problems 12-15.
22
Le Châteliers Principle

• . . . if a change is imposed on a system at
  equilibrium, the position of the equilibrium will
  shift in a direction that tends to reduce that
  change.

23
Le Châteliers Principle

• Consider the production of ammonia
• As the pressure increases, the amount of ammonia
  present at equilibrium increases.
• As the temperature decreases, the amount of
  ammonia at equilibrium increases.
• Can this be predicted?
• Le Châteliers Principle if a system at
  equilibrium is disturbed, the system will move in
  such a way as to counteract the disturbance.

24
Le Châteliers Principle
25
Effects of Changes on the System
1. Concentration The system will shift away
from the added component. 2. Temperature K will
change depending upon the temperature (treat the
energy change as a reactant).
26
Increase of Pressure to an Equilibrium.
27
Effects of Changes on the System (continued)

• 3. Pressure
• a. Addition of inert gas does not affect the
  equilibrium position.
• b. Decreasing the volume shifts the
  equilibrium toward the side with fewer moles.

28
Le Châteliers Principle

• Change in Reactant or Product Concentrations
• Consider the Haber process
• If H2 is added while the system is at
  equilibrium, the system must respond to
  counteract the added H2 (by Le Châtelier).
• That is, the system must consume the H2 and
  produce products until a new equilibrium is
  established.
• Therefore, H2 and N2 will decrease and NH3
  increases.

29
Le Châteliers Principle
Change in Reactant or Product Concentrations
30
Le Châteliers Principle
The Haber Process
31
Le Châteliers Principle
The Haber Process for producing NH3

• N2 and H2 are pumped into a chamber.
• The pre-heated gases are passed through a heating
  coil to the catalyst bed.
• The catalyst bed is kept at 460 - 550 ?C under
  high pressure.
• The product gas stream (containing N2, H2 and
  NH3) is passed over a cooler to a refrigeration
  unit.
• In the refrigeration unit, ammonia liquefies but
  not N2 or H2.
• The unreacted nitrogen and hydrogen are recycled
  with the new N2 and H2 feed gas.
• The equilibrium amount of ammonia is optimized
