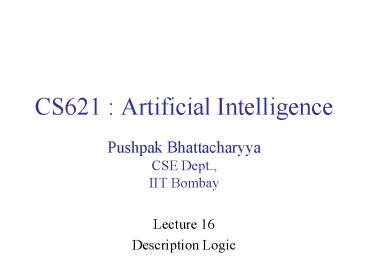

CS621 : Artificial Intelligence

1
CS621 Artificial Intelligence

• Pushpak BhattacharyyaCSE Dept., IIT Bombay
• Lecture 16
• Description Logic

2
Brief on Knowledge Representation
3
KR primary aim of AI

• facilitate inferencing
• Inferencing often involves making classes of
  objects, defining a hierarchy, giving attributes
  to objects and specifying constraints.

4
Predicate Calculus foundational KR

• Uses (i) Predicates for describing relationships
  and (ii) Rules for inferencing
• A special kind of inferencing is Inheritance
  where all properties of a super class are passed
  onto its subclasses
• For example, it can be inferred that bulldogs-
  being dogs- have 4 legs by virtue of their
  inheriting dog-properties.

5
Structured Knowledge Representation

• Components and their interrelationships have to
  be expressed
• Semantic Nets and Frames prove more effective
  than predicate calculus
• Reminiscent of calculus where using
  differentiation to find the rate of change of one
  quantity with respect to another is more
  convenient than using the more foundational

6
Example Semantic Net
7
Frames (example from medical entities dictionary,
Columbia University)
Have slots and fillers
8
A more common example of frame
Student Frame with the left column representing
slots and the right column representing fillers
9
Description Logic
10
Motivation to study

• Structure of the knowledge may not be visible,
  and obvious inferences may be difficult to draw
• Expressive power is too high for obtaining
  decidable and efficient inference
• Inference power may be too low for expressing
  interesting, but still decidable theories

11
Wikipedia Definition

• Description logics (DL) are a family of
  knowledge representation languages which can be
  used to represent the terminological knowledge of
  an application domain in a structured and
  formally well-understood way. The name
  description logic refers, on the one hand, to
  concept descriptions used to describe a domain
  and, on the other hand, to the logic-based
  semantics which can be given by a translation
  into first-order predicate logic. Description
  logic was designed as an extension to frames and
  semantic networks, which were not equipped with
  formal logic-based semantics.

12
Constituents of DL

• Individuals (such as Jack and Jill)
• Concepts (such as Man and Woman)
• Roles (such as isStudent)

Individuals are like constants in predicate
calculus, while Concepts are like Unary
predicates and Roles are like Binary Predicates.
13
Constructors of DL and their meaning
14
Examples

• For example the set of all those parents having a
  male child who is a doctor or a lawyer is
  expressed as
• Has-child.Male n( Doctor U Lawyer)

15
Quantifiers and Dots

• ?HasChild.Girl is interpreted as the set
• x ?(y)( HasChild(x,y)?Girl(y)) and
• ?isEmployedBy.Farmer is interpreted as
• x ?(y)( isEmployedBy(x,y) Farmer(y))

16
Inference in DL

• Main mechanism Inheritance via subsumption
• DL suitable for ontology engineering
• A concept C subsumes a concept D iff
• I(D) ? I(C) on every interpretation I
• For example Person subsumes Male, Parent
  subsumes Father etc. Every attribute of a concept
  is also present in the subsumed concepts
