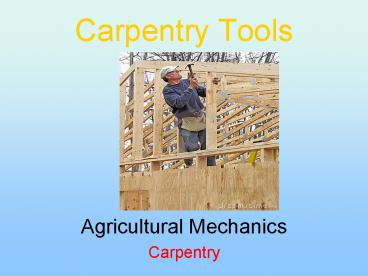

Carpentry Tools

1
Carpentry Tools

• Agricultural Mechanics
• Carpentry

2
Next Generation Science/Common Core Standards
Addressed!

• CCSS.ELALiteracy.RST.9-10.4 Determine the meaning
  of symbols, key terms, and other domain-specific
  words and phrases as they are
• used in a specific scientific or technical
  context relevant to grades 910 texts
  and topics.
• CCSS.ELALiteracy.RST.9-10.7 Translate
  quantitative or technical information expressed
  in words in a text into visual form (e.g., a
  table
• or chart) and translate information expressed
  visually or mathematically (e.g., in an equation)
  into words.
• CCSS.ELALiteracy.RST.11-12.9 Synthesize
  information from a range of sources (e.g., texts,
  experiments, simulations) into a coherent
• understanding of a process, phenomenon, or
  concept, resolving conflicting information when
  possible.

3
Asphalt Shingle

• The most common type of roofing shingle. It
  generally has three tabs. The top black portion
  is nailed down and covered by the colored portion.

4
Auger Bit

• Used for boring holes through wood. With a
  square tapered shank, it can be used in a bit
  brace

5
Back Saw

• Used for bench sawing of dovetail joints, dado
  joints, and other joints where wood is held with
  a vise or miter box.

6
Bar Clamp

• Used to clamp glued wood joints until dry or
  positioning metal until welded.

7
Biscuit Jointer

• Cuts a football shaped groove into the ends of
  lumber. A biscuit wafer is inserted into the
  notch to form a glue joint.

8
Block Plane

• Used to plane small pieces of lumber and ends of
  moldings, trim and siding.

9
Butt Hinge

• Used for hanging various types of doors. The
  hinge is set into the grain notch, flush with the
  wood.

10
Carpenters Framing Square

• Used for squaring boards and timbers, measuring
  and laying out rafters.

11
Carpenters Level or Plumb Level

• Used for checking, laying out or marking vertical
  or horizontal level lines. It can also be used
  for leveling and plumbing objects.

12
Caulking Gun

• Used to apply caulking for sealing cracks or
  applying adhesive for gluing.

13
Chain Saw

• Used to cut trees, logs, and heavy timber. Chain
  saws are gasoline or electrically powered. The
  size of the saw is determined by the length of
  the bar and the horsepower or displacement of the
  engine.

14
Chalk Line

• Used for marking a long straight line on a board,
  wall, ceiling, or floor. A chalk line is a
  string that has been coated with chalk dust so it
  leaves a line when snapped.

15
Circular Saw Blade

• Used for ripping or crosscutting wood. It forms
  a complete circle and has saw teeth all the way
  around the circular edge.

16
Combination Square

• Used as a try square, miter, depth gauge, plumb
  level, locating the center on the end of round
  stock or measuring angles depending on which head
  is used. The three heads used on a combination
  square are square-miter, center, and bevel
  protractor.

17
Corner Clamp

• Used to hold lumber in place when gluing wood
  frames to a ninety degree corner.

18
Corrugated Fiberglass Siding

• Commonly used in greenhouses. Inexpensive wall
  material which allows some light to pass through.
  Corrugation provides strength.

19
Corrugated Metal Siding

• Commonly used in barn and shed construction.
  Corrugation provides great strength.

20
Countersink

• Used to countersink holes for flathead wood and
  machine screws and stove bolts.

21
Curved Claw Hammer

• Used for driving and pulling nails. It is the
  most common hammer used by the carpenter. The
  size of the hammer is determined by the weight of
  its head.

22
Dado Saw Set

• Used to cut grooves/joints in lumber. Adjustable
  to various thicknesses.

23
Dowel Rod

• Round rods which come in assorted sizes, used to
  insert into drilled holes when gluing wood
  together.

24
Dry wall Screwdriver

• Designed specifically to drive drywall screws
  through sheetrock into the support walls behind
  it.

25
Felt Paper

• Used as a underlayment material for shingles or
  rolled roofing materials. Aids I shedding water
  that may get under the roofing materials.

26
Flashing

• Thin galvanized metal strips placed under roofing
  material to protect the edges of exposed lumber
  to prevent weathering.

27
Folding Rule

• Used for taking or laying off long or short
  measurements where rigid support is needed.

28
Glass Cutter

• Used to score and cut glass.

29
Hand Saw

• Used for straight sawing in hand woodworking.
  The size of the saw is determined by the length
  of the blade from toe to heel. The coarseness
  for fineness of the saw cut is determined by the
  number of points (teeth) per inch. Available for
  either cross cutting (across the grain) or
  ripping (with the grain).

30
Hand Screw

• Used to clamp flat wood joints after applying
  glue.

31
Hinge Hasp

• Used for fastening doors or lids and a place for
  a lock is provided.

32
Hole Saw

• Used with an electric drill to bore round holes
  in wood or other materials.

33
Insulation

• Used in home construction to insulate between
  wall studs and in ceilings. May come in sheets
  or rolls.

34
Jig Saw or Saber Saw

• Used to make straight or bevel cuts and cutting
  circles or curved shapes in lumber.

35
Keyhole or Compass Saw

• Used to cut irregular shapes or work where space
  is limited. The blade tapers from the handle to
  a sharp point.

36
Line Level

• Used to check the level of foundations and other
  construction jobs, when attached to a string
  line. Also used to line up bricks blocks

37
Marking Gauge

• Used when marking lines parallel to the edges of
  material.

38
Metal Stud

• Used as a replacement for lumber framing when
  called for by building codes.

39
Miter Box and Saw

• Used for squaring wood stock and cutting angles
  from 90 degrees in either direction. The miter
  box guides the blade when forming miter cuts and
  other types of joints.

40
Nail-Set

• Used to set heads of nails (casing and finishing)
  below the surface of wood.

41
Paint Roller

• Used to apply paint rapidly over a larger area.

42
Palm/Finish Sander

• Sander provides the smooth surface needed before
  wood finish is applied.

43
Particle Board

• Constructed of sawdust and wood chips which are
  fused together. Most commonly used in flooring.

44
Plywood

• A sheet of wood that is formed by gluing thin
  layers of wood together. Exceptional strength.
  Commonly used for roofing, floors, decks, and
  walls.

45
Pneumatic Finish Nail Gun

• Used to apply finish nails rapidly with little
  surface distortion.

46
Pneumatic Nail Gun

• Used for rapid framing of large structures.

47
Portable Belt Sander

• Most powerful of the portable sanders These
  sanders are used to strip off paint and varnish,
  and remove rust and corrosion.

48
Portable Circular Saw
Used to cut structural lumber and rip plywood,
strand board etc.
49
Portable Power Planer

• Used to smooth surfaces of lumber prior to
  sanding.

50
Power/Battery Charger

• Used to charge a variety of batteries.

51
Power Fastener

• It is loaded with a nail which is propelled by a
  blank cartridge after the trigger is pulled.

52
Power Hammer

• It is loaded with a nail which is propelled by a
  blank cartridge. It fires after being struck by
  a hammer.

53
Power Miter Saw

• Fast cutting of lumber and trim to a specific
  angle.

54
Ring Shank Nail

• The rings on the nail prevent the nail from
  slipping.

55
Rolled Roofing

• Alternative to shingles. Inexpensive, fast
  application.

56
Roofing Insulation Caps

• A ring shank nail with a large plastic head that
  will hold down roofing materials.

57
Roofing Tins

• Round pieces of sheet metal that a nail/screw is
  driven through to hold down roofing.

58
Roto Zip

• Used to cut out a variety of shapes or openings
  in stationary items such as a wall.

59
Router

• Used to cut irregular shapes and form various
  contours on edges.

60
Router Bit

• Used to shape the edges of lumber.

61
Scratch Awl

• Used as a scribe in layout work and punching
  starter holes for wood screws.

62
Scroll Saw

• Used to cut intricate designs in thin lumber.

63
Sheet Rock

• To line interior walls. May be taped and bedded
  and finish texture applied prior to painting.

64
Sheet Rock Square

• Used as a straight edge to cut sheet rock.

65
Sliding T Bevel

• Used to transfer angles from one piece of stock
  to another and is very useful for laying out cuts
  on rafters.

66
Spade Bit

• Used for boring large holes in soft wood with
  portable electric hand drills.

67
Speed Square

• Used for marking, laying out angles and squaring
  as other types of squares.

68
Spiral Nail

• Generally longer than a ring shank nail with the
  same purpose, to prevent slippage.

69
Staple gun

• Used to attach light gauge materials together
  where a nail is too heavy or time consuming.

70
Steel Tape

• Used for lay out work and measuring straight or
  curved surfaces and around corners.

71
Straight Claw or Ripping Hammer

• Used to drive nails and the ripping claw, which
  is nearly straight, may be driven between
  fastened lumber to pry them apart.

72
Strand Board
Inexpensive substitute for plywood. Manufactured
by gluing wood chips together.
73
Strap Hinge

• Used on barns, doors, and gates. It is the most
  common type of hinge used on the farm. It is
  available from 2 up to 12 in light, heavy, and
  extra heavy steel.

74
Structural Lumber

• Two inch thick materials are used for framing
  walls, floors, and decks. One inch thick
  materials are commonly used for walls, roofing,
  and flooring. Common widths are 4, 6, 8, 10,
  and 12.

75
Stud Finder

• Electronic device used to locate wood and metal
  studs that are covered with wall board of some
  type.

76
T Hinge

• Used where the butt end of the hinge is to be
  fastened into a stud of timber. The hinge looks
  like half of a butt hinge and half of a strap
  hinge.

77
Table Saw Miter Gauge

• Used on a table saw to guide wood through the
  blade when cutting at a specific angle.

78
Tack Hammer

• Used for driving tacks in canvas and screen wire.
  The head is magnetic.

79
Taping Knife

• Used to apply joint compound on seams in sheet
  rock.

80
Torpedo Level

• Used in limited spaces for leveling, pluming, and
  45 degree miters. It has v-grooved working edge
  for pipe and conduit work. Overall length of 9
  is most common.

81
Treated Lumber
Lumber that is chemically treated to resist
moisture and insects. Generally a dull green
color. Most frequently in structural sizes 2
thick.
82
Try Square

• Used primarily as a testing tool for checking the
  squareness of corner fits and ends of boards.

83
Underlayment Nail

• Used to nail underlayment when roofing. There is
  a wider gap between the head and retaining ring
  than you see on a ring shank nail.

84
Wallboard Anchor

• Used to attach/anchor items to a standing sheet
  rock wall.

85
Wood Chisel

• Used to trim and cut away wood to form joints and
  recesses. It is held with the bevel down for a
  roughing cut and with the bevel up for a paring
  cut.

86
Wood Rasp

• Used for smoothing rough work and for removing
  small amounts of wood on curved or irregular
  shaped objects.

87
Wood Scraper

• Used for scraping and smoothing surfaces of flat
  materials before sanding or painting.

88
Wooden Biscuit

• Used to glue two pieces of lumber together.
  Inserted into a previously cut notch.

89
Woodworkers Vise

• Used for holding wood stock.

90
The End!
