C11-1

1

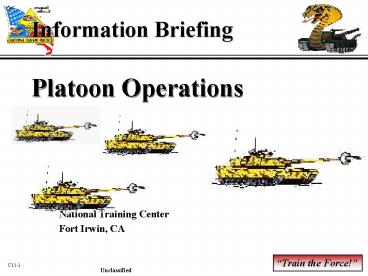

Information Briefing
Platoon Operations
National Training Center Fort Irwin, CA
Unclassified
2
Purpose
To Discuss the Planning, Preparation, and
Execution Necessary to Successfully Defend a
Platoon Battle Position At the National Training
Center
3
Agenda

• Introduction
• Terrain and Weather Analysis
• Evaluate the Threat
• Engagement Area Development
• Direct Fire Planning
• Battle Position Development
• Conclusion

4
Platoon Mission
1st Platoon Defends From Battle Position 1
(Vicinity Hidden Valley) NLT 07 0600 JAN 00 to
Destroy an Enemy MRC in EA COBRA to Prevent the
Envelopment of 2d Platoon (Company Main Effort)
From the South
5
Define the Platoon AO
BP2
BP1
EA COBRA
6
Describe Battlefield Effects

• Terrain Analysis
• - OCOKA
• Weather Analysis
• Time Analysis

BP1
EA COBRA
7
Military Aspects of the Terrain
OCOKA

• Observation and Fields of Fire
• Cover and Concealment
• Obstacles
• Key Terrain
• Avenues of Approach

FM 34-130
8
Observation and Fieldsof Fire
9
Cover and Concealment
Potential Fighting Positions That Offer Cover
and Concealment
10
Thoughts on Obstacles

• Look at Obstacles As a Whole - Natural,
  Man- Made, And Cumulative Weather Effects
• Restrictive Terrain to One Unit May Be
  Unrestricted to Another

Canalizing Terrain
11
Concepts of Key Terrain

• Key Terrain Marked Tactical Advantage To
  Either Combatant That Owns
• Decisive Terrain Success of Mission Depends
  on Retaining this Piece of Terrain

12
Thoughts on Key Terrain

• Key Terrain Varies With Echelon (Eg. Platoon,
  Company, Battalion)
• Major Obstacles Are Rarely Key, Rather the
  Ground That Dominates Them
• Intervisibility (IV) Lines

Potential Section Fighting Positions
13
Avenues of Approach
Enemy Air or Ground Avenues of Approach Generally
Lead to the Enemys Objective or Key Terrain
14
Steps to Developing Avenues of Approach

• ID Mobility Corridors
• Categorize Mobility Corridors by Size and
  Type
• Group Mobility Corridors Into Avenues of
  Approach
• Evaluate Avenues of Approach
• Prioritize Avenues of Approach

15
Mobility Corridors

• Mobility Corridors Are Areas Where a Force Will
  Be Canalized Due to Terrain Constrictions
• Mobility Corridors Are Relatively Free of
  Obstacles
• Best Mobility Corridors Are Unrestricted
• Mobility Corridors Are Identified Based on Type
  of Unit

16
Mobility Corridors
Minimum Widths (Friendly Threat)
Size of Force
FM 34-130
17
Evaluate AAs
OBJ
- Access to Key Terrain - Ease of Movement -
Directness - Observation Fields of Fire -
Sustainability
18
Evaluate AAs
Platoon Mobility Corridor
Company Mobility Corridor
19
Thoughts on AAs

• Do Not Confuse Avenues of Approach With
  Direction of Attack or Axis of Advance
• Include Air Avenues of Approach Fixed-Wing
  and Rotary-Wing
• Determine Infiltration Routes / Lanes for
  Enemy Reconnaissance
• Main Body and Reconnaissance Avenues of
  Approach Differ

20
Weather
The Military Aspects of Weather Are

• Visibility
• Wind
• Precipitation
• Cloud Cover
• Temperature Humidity

21
Evaluate the Threat
22
ID Threat Capabilities

• Weapon Systems Available (Include Special
• Munitions)
• Understand Tactical Options Available to the
  Enemy
• Attack, Defend, Reinforce, Retrograde
• Consider Doctrinal Missions by Echelon
• Analyze Historical Precedence

23
Understand EnemyTask and Purpose
T Reconnoiter Routes and Confirm Enemy Positions
P Determine Enemy Strengths and Weaknesses
Combat Recon Patrol
T Fix and Suppress Enemy Vicinity Point Of
Penetration
P Facilitate Breach By Main Body of the
Advanced Guard
Forward Security Element
T Breach Enemy Obstacle
P Facilitate Envelopment By Regimental Main Body
Advance Guard Main Body
T Destroy Enemy Main Battle Area Forces
P Facilitate Deep Penetration of 2nd Echelon
Battalion
Regimental Main Body - 1st Echelon
T Penetrate To BDE Rear And Complete Destruction
P Facilitate Passage Of Follow-on Forces
Regimental Main Body - 2nd Echelon
T Protect Flank Of Regiment
P Prevent Loss Of Reaction Time And Maneuver
Space
Anti-Tank Company
24
Determine Threat COAWhat Will He Do?

• Identify Threat Objectives and Desired End
  State (Enemy Commanders Mission and Intent)
• Look at Enemy Task and Purpose
• ID Multiple ECOAs - Consider Contingencies
• Evaluate and Prioritize ECOAs
• Determine Enemy Scheme of Maneuver
• - Formation
• - Movement Techniques
• - Use of Supporting Elements / Attachments

25
Play the EnemyReverse IPB

• Rehearse EA Drive Into Your EA Like the
  Enemy Will
• Where Is Enemy Commander Templating Our SBF /
  ABF Positions, BPs and Air Avenues of Approach?
• Template Enemy Positions Based on His COA and
  Establish Possible Targets
• Use FIST, ADA, ENG Experience That May Be
• Attached To / Supporting Your Company / Team

26
Determine Enemy COA
27
Visualize the Battlefield
Seeing the Terrain and the Enemy
Reconnaissance Avenue of Approach
AT-5 Firing Lines
Main Body Avenue of Approach
28
Develop the Engagement Area / Battle Position

• Visualize How The Enemy Will Attack
• Select Where And Determine How To Kill Him -
  Normally More Than One Place
• Position Obstacles To Support Direct Fires
• Plan Indirect Fires To Support Direct Fires And
  Obstacles
• Position Forces To Kill With Direct Fires -
  Perform Battlefield Calculus
• Complete The Plan, Drive EAs, Prep Final
  Positions
• Rehearse!!!

29
Thoughts on Battle Positions
Potential Platoon Battle Position
Is this where we want to kill the enemy?
TRP 2
30
Obstacle Plan

• Implement Commanders Intent / Priorities
  Start Work ASAP
• Site Obstacles to Deny, Force Into EA, Slow
  Enemy Down Force Enemy Into Formation You
  Want
• Confirm Massed Fires on Far Side of Obstacles
• (Confirm Siting of Fighting Positions)
• Mark Lanes for Passage of Lines (Forward and
  Rearward)

31
Obstacle Plan
Obstacle on Reverse Slope of IV Line
TRP 2
32
Indirect Fire Plan

• Site (Using GPS) Targets Triggers That
  Support Commanders Intent for Indirect Fires
• Make Recommendations to Commander And FSO for
  Target Refinement
• Register Arty / Mortars (If Time Permits)
• Ensure Primary / Alternate Observers Can
• See Targets Triggers From Turret
  Defilade (Day / Night Capable)

33
Indirect Fire Plan
Target Suspected AT Firing Lines
Integrate Indirect Fires with Obstacles
34
Direct Fire Control Measures

• Target Reference Point (TRP)
• Engagement Priority
• Trigger Lines
• Sector of Fire
• Engagement Area (EA)
• Indirect Fire Targets
• - Observation, Triggers
• Additional Instructions
• - Maximum Engagement Line (MEL)
• - Engagement Criteria
• - Target Criteria
• - Target Priority
• - Destruction Criteria

35
Develop Platoon Fire Plan
05 06


PL KILLER (MEL For Distinguished
Crews) PL RED (All Crews) PL FIFTY PL COAX
TRP3
AE2002
A1
A2
37
2500m 2000m 1200m 800m
TRP1
AE2001
TRP2
36
B1
B2
35
36
Subdivision of EA by Quadrants
Advantages Cdr Can Direct Fires By Weapon
System Into An EA Or Onto The Enemy
10
I II
A1 A2
Disadvantages Each Platoon Sees The Quadrant
From A Different Angle / Perpective Equal
Division Of Quadrants Is Difficult
III IV
20
B1 B2
37
Platoon Defense of Battle Position
AE2001
BP1
EA COBRA
AE2002
38
Platoon Defense of Battle Position
39
Conclusion

• Terrain and Weather Analysis
• Evaluate the Threat
• Engagement Area Development
• Direct Fire Planning
• Battle Position Development
