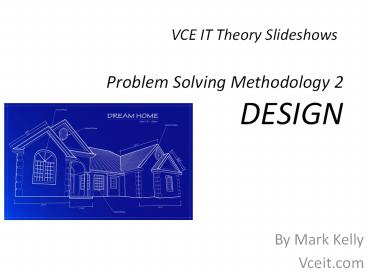

Problem Solving Methodology 2 DESIGN

• By Mark Kelly
• Vceit.com

2
Contents

• What needs designing?
• Design tools

3
Design...

• How the solution will work
• What interfaces and output will look like

4
Need to design

• Hardware needs
• Software needs
• Training and documentation requirements
• Procedures that need to be created or changed
• Evaluation criteria

5
Tools

• data dictionaries and data structure diagrams,
• input-process-output (IPO) charts,
• pseudocode,
• object descriptions.

6
Designing how bits of the solution fit together
e.g.

• Website pages, style sheets, scripts
• Database queries, forms, reports
• Program modules, procedures, functions.

7
Useful tools for this

• Website storyboards, site maps
• Database entity-relationship diagrams, data flow
  diagrams, structure charts,
• Multipurpose hierarchy charts, context diagrams,
  use cases.

8
Design

• Consider alternative designs
• More than one way to skin a cat
• Some designs may be technically great, but
  unacceptable because of constraints

9
Design

• Every solution has both pros and cons
• Whats acceptable to a developer might be
  impossible for the client
• Selecting a design strategy means achieving
  maximum pros with minimum cons
• What is a pro or con varies from client to client

10
Physical Design Tools

• These actually plan how to build a system
• They give instructions on what to do
• Physical data dictionaries (e.g.
  Customer_Surname is string, 25 characters)
• Data Flow Diagrams...

11
Physical Design Tools

• Storyboards
• Structure Charts
• IPO charts
• Layout diagrams / mockups
• Pseudocode

12
Designing appearances

• layout diagrams,
• annotated diagrams/mock ups
• prototypes

13
Designing the evaluation criteria

• What measures will be used to judge whether or
  not the solution requirements have been met?
• Should relate to the solution requirements
  identified in the analysis stages logical design.

14
Design

• Must be documented
• If successful, will lead to Development phase. If
  not, cancel the project.
• Is used as a strict instruction manual during the
  following phases, particularly during Development

15
