1. dynamic viscosity

1

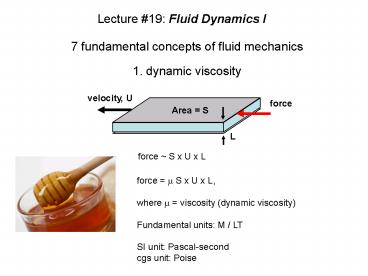

Lecture 19 Fluid Dynamics I
7 fundamental concepts of fluid mechanics
1. dynamic viscosity
force m S x U x L, where m viscosity
(dynamic viscosity) Fundamental units M /
LT SI unit Pascal-secondcgs unit Poise
2
2. density
density, r mass / volume Fundamental units M
/ L3
3
4. no slip condition(boundary layer)
4
uinf
d (x) 0.95 x uinf
flat plate with upstream edge
5
5. Law of continuity(conservation of mass)
mass flux r2 s2u2
mass flux r1 s1u1
S1U1
s2u2
gravity accelerates water downward
For incompressible fluid r1 r2 Thus,
s1u1s2u2
6
(No Transcript)
7
lung
rightventricle
body
rightventricle
8
flow tank
pump
9
6. Bernoulli Equation(conservation of energy)
consider flow in one stream tube
Apply conservation of energy within tube
pressureenergy
kinetic energy
gravitationalenergy
consider two pointsalong tube
10
(No Transcript)
11
u1
u2
12
7. Reynolds number
Ratio Re (Reynolds number) r u L / m u L /
v
13
Low Reynolds numbers
Forces proportional to u
14
Copepod Re 300
Sperm whaleRe 300,000,000
ThripsRe 30
TunaRe 30,000,000
Whale spermRe 0.00003
DuckRe 300,000
DragonflyRe 30,000
BacteriumRe 0.00003
