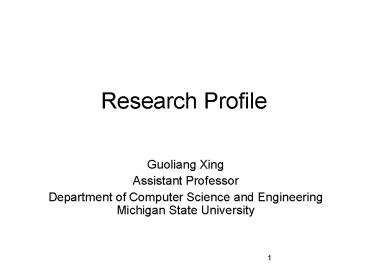

Research Profile

1
Research Profile

• Guoliang Xing
• Assistant Professor
• Department of Computer Science and Engineering
  Michigan State University

2
Background

• Education
• Washington University in St. Louis, MO
• Master of Science in Computer Science, 2003
• Doctor of Science in Computer Science, 2006,
  Advisor Chenyang Lu
• Xian JiaoTong University, Xian, China
• Master of Science in Computer Science, 2001
• Bachelor of Science in Electrical Engineering,
  1998
• Work Experience
• Assistant Professor, 8/2008 , Department of
  Computer Science and Engineering, Michigan State
  University
• Assistant Professor, 8/2006 8/2008, Department
  of Computer Science, City University of Hong Kong
• Summer Research Intern, May July 2004, System
  Practice Laboratory, Palo Alto Research Center
  (PARC), Palo Alto, CA

3
Research Summary

• Systems
• Wireless interference measurements and modeling
• Unified power management architecture for
  wireless sensor networks
• Real-time middleware for networked embedded
  systems
• Algorithms, protocols, and analyses
• Mobility-assisted data collection and target
  detection
• Holistic radio power management
• Data-fusion based network design
• Publications
• 6 IEEE/ACM Transactions papers since 2005
• 20 conference/workshop papers
• First-tier conference papers MobiHoc (3), RTSS
  (2), ICDCS (2), INFOCOM (1), SenSys (1), IPSN
  (3), IWQoS (2)
• The paper "Integrated Coverage and Connectivity
  Configuration in Wireless Sensor Networks" was
  ranked the 23rd most cited articles among all
  papers of Computer Science published in 2003
• Total 780 citations (Google Scholar, 2009 Jan.)

4
Methodology

• Explore fundamental network design issues
• Address multi-dimensional performance
  requirements by a holistic approach
• High-throughput and power-efficiency
• Sensing coverage and comm. performance
• Exploit realistic system platform models
• Combine theory and system design

5
Outline

• Selected projects on sensor networks
• Integrated Coverage and Connectivity
  Configuration
• Rendezvous-based data collection
• Model-driven concurrent medium access control
• Pending proposal
• Holistic transparent performance assurance
• Proposals in preparation

6
Coverage Connectivity

• Select a set of nodes to achieve
• K-coverage every point is monitored by at least
  K active sensors
• N-connectivity network is still connected if N-1
  active nodes fail

Active nodes
Sensing range
Sleeping node
Communicating nodes
A network with 1-coverage and 1-connectivity
7
Connectivity vs. Coverage Analytical Results

• Network connectivity does not guarantee coverage
• Connectivity only concerns with node locations
• Coverage concerns with all locations in a region
• If Rc/Rs ? 2
• K-coverage ? K-connectivity
• Implication given requirements of K-coverage and
  N-connectivity, only needs to satisfy max(K,
  N)-coverage
• Solution Coverage Configuration Protocol (CCP)
• If Rc/Rs lt 2
• CCP connectivity mountainous protocols

ACM Transactions on Sensor Networks, Vol. 1 (1),
2005. First ACM Conference on Embedded Networked
Sensor Systems (SenSys), 2003
8
Data Transport using Mobiles
Base Station
5 mins
150K bytes
Robomote _at_ USC
10 mins
500K bytes
5 mins
100K bytes
100K bytes
Networked Infomechanical Systems (NIMS) _at_ UCLA
9
Rendezvous-based Data Transport

• Some nodes serve as rendezvous points (RPs)
• Other nodes send data to the closest RP
• Mobiles visit RPs and transport data to base
  station
• Advantages
• Combine In-network caching and controlled
  mobility
• Mobiles can collect a large volume of data at a
  time
• Minimize disruptions due to mobility
• Achieve desirable balance between latency and
  network power consumption
• Online algorithms for fixed and free mobile trails

ACM International Symposium on Mobile Ad Hoc
Networking and Computing (MobiHoc), 2008 IEEE
Real-Time Systems Symposium (RTSS), 2007
10
Outline

• Selected projects on sensor networks
• Integrated Coverage and Connectivity
  Configuration
• Rendezvous-based data collection
• Model-driven concurrent medium access control
• Pending proposal
• Holistic transparent performance assurance
• Proposals in preparation

11
Improve Throughput by Concurrency
s1
s2
r1
r2

12
Received Signal Strength
Received Signal Strength (dBm)
Received Signal Strength (dBm)
Transmission Power Level
Transmission Power Level

• 18 Tmotes with Chipcon 2420 radio
• Near-linear RSSdBm vs. transmission power level
• Non-linear RSSdBm vs. log(dist), different from
  the classical model!

13
Packet Reception Ratio vs. SINR
03 dB is "gray region"
Packet Reception Ratio ()
office, no interferer
parking lot, no interferer
office, 1 interferer

• Classical model doesn't capture the gray region

Received Signal Strength (RSS)


b
gt
Noise å Interference
14
C-MAC Components
Power Control Model
Currency Check

Concurrent Transmission Engine
Handshaking
Online Model Estimation
Interference Model
Throughput Prediction
Throughput Prediction

• Implemented in TinyOS 1.x, evaluated on a 18-mote
  test-bed
• Performance gain over TinyOS default MAC is gt2X

To be presented at IEEE Infocom 2009
15
Performance Assurance in Crowded Spectrum

• Performance-sensitive wireless applications
• Patient monitoring with body sensor networks
• Home networking for Bluetooth headsets, 802.11
  PDAs, and ZigBee remote controls.
• Challenges
• Stringent requirements on delay, throughput
• Many COTS devices use 2.4 GHz spectrum
• Significant performance variation due to noise,
  inter-, and intra-platform interference

16
State of the Art

• Point solutions at different layers
• PHY cognitive radio, frequency hopping
• MAC CSMA, TDMA, channel assignment
• QoS control at upper layers
• Issues
• System-level performance is not addressed
• Tightly coupled with radio platforms and MACs

17
Holistic Transparent Performance Assurance (HSPA)

• Integrate local interference mitigation solutions
  coherently to ensure system performance
• Spectrum profiler
• Models the interferences of various sources
  (external, intra- and inter-platform)
• Virtual MAC
• Unified abstractions that separate HPTA from
  native MACs, transparently monitor, and schedule
  resources
• System and stream performance assurance
• Holistic performance tradeoff and control
• control knobs for network designers and end
  users

18
(No Transcript)
19
HTPA in a Nutshell

• Body sensor networks for patient monitoring
• Bluetooth sensors and 802.11/Bluetooth base
  stations
• Spectrum profiler
• Bluetooth frequency hopping range, 802.11
  channels, power, noise
• System/stream performance assurance
• Assure per-stream delay and total system data
  rate
• Choose frequency hopping range of BT and the
  transmit power/channel of 802.11

20
Research Team

• Gang Zhou, Computer Science, College of College
  of William and Mary
• Guoliang Xing, Computer Science and Engineering,
  Michigan State University
• Expertise
• Measurement-based radio Interference
  characterization
• Multi-channel MAC design and implementation
• Power management architecture and protocols
• Reliable and real-time communication
• Quality-of-service in sensor network applications
  and systems

21
Mobile Data Access in Urban Sensor Networks
Planning, Caching, and Limits

• Urban sensor networks
• Low-cost sensors deployed in metro areas
• Monitor city-wide events or facilities
• Applications
• Distributed traffic control
• Parking space monitoring and management
• Location-aware content distribution
• Mobile data access
• Deliver data to mobile users in the right
  location at the right time

22
Parking space monitoring and management

• "Send me the locations of vacant parking lots
  within 2 blocks from me every 10s"

0.1
0.1
0.3
0.2
0.1
23
Research Tasks

• Network planning
• Where to deploy sensors and base stations?
• Data caching
• Where to cache data?
• How long to cache data at each location?
• Performance limits
• How does the performance scale with respect to
  size of network?
• Spatiotemporal constraints
• Spatial constraints
• Existing infrastructure light poles, power
  sources.
• Statistical distribution of positions speeds of
  users
• Temporal constraint
• Mobility statistics
