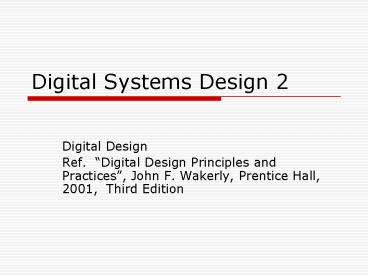

Digital Systems Design 2

1
Digital Systems Design 2

• Digital Design
• Ref. Digital Design Principles and Practices,
  John F. Wakerly, Prentice Hall, 2001, Third
  Edition

2
Software Aspects of Digital Design

• Software Tools are an essential Part of Digital
  Design
• Hardware Description Languages (HDLs) and
  accompanying circuit simulation and synthesis
  tools have changed the landscape of digital
  design.
• Computer-Aided Design (CAD) various software
  tools improve
• Designers productivity
• Correctness and quality of design

3
Software Aspects of Digital Design

• Classes of Software Tools
• Schematic entry
• It allows schematic diagrams to be drawn on-line.
  They check for common errors such as shorted
  outputs, signals do not go anywhere, etc.
• HDLs
• Hardware Description Languages, originally were
  developed for circuit modeling. Now are being
  used for hardware design. They can be used to
  design anything from individual function modules
  to large multi-chip digital systems.

4
Software Aspects of Digital Design

• HDL compilers, simulators and synthesis toolsA
  typical HDL software package contains several
  components
• In a typical environment the designer writes a
  text-based program, and the HDL compiler
  analyzes the program for syntax errors.
• If it compiles correctly the designer has the
  option of handing it over to a synthesis tool or
  simulator.
• Synthesis tool creates a corresponding circuit
  design targeted to a particular hardware
  technology.
• Most often before synthesis designer will use the
  compilers results as input to a simulator to
  verify the behavior of the design.

5
Software Aspects of Digital Design

• Simulator.
• Help designers to predict the electrical and
  functional behavior of a chip without actually
  building it, allowing most if not all bugs to be
  found before the chip is fabricated.
• Simulators are also used in the design of
  programmable logic devices, and in the overall
  design of systems that incorporate many
  individual components. They are somewhat less
  critical in this case because its easier for the
  designer to make changes in components and
  interconnections on a printed-circuit board.

6
Software Aspects of Digital Design

• Test benches. Software environments that are used
  by designers to formalize circuit simulation and
  testing.
• The idea is to build a a set of programs around a
  design to automatically exercise its functions
  and check both its functional and its timing
  behavior.
• This is especially useful when small design
  changes are made- the test bench can be run to
  ensure that bug fixes or improvements in one
  area do not break something else.
• Test-bench programs may be written in the same
  HDL as the design itself, in C or C, or in
  combination of languages including scripting
  languages like Perl.

7
Software Aspects of Digital Design

• Timing analyzers and verifiers.
• The time dimension is very important in digital
  design. All digital circuits take time to produce
  a new output value in response to an input
  change. Much of a designers effort is spent
  ensuring that such output changes occur quickly
  enough (or in some cases not to quickly).
• Specialized programs can automate the tedious
  task of drawing timing diagrams and specifying
  and verifying the timing relationships between
  different signals in a complex system.

8
Software Aspects of Digital Design

• Specialized programs.
• They can be written in a high-level programming
  language like C or C, or scripts in languages
  like Perl to solve particular design problems.
• Although CAD tools are important they dont make
  or break a digital designer (similarly as a fast
  typists not necessarily makes a great writer).

9
Integrated Circuits (IC)

• A collection of one or more gates fabricated on a
  single silicon chip is called an integrated
  circuit.
• IC initially is part of a much larger circular
  plate called wafer.
• A number of ICs a fabricated at the same time in
  one wafer. One IC in a wafer is called a die.
• Each die is mounted in a package. The pads of a
  die are connected to the package pins which makes
  the IC.
• IC are used to refer to silicon die or chip to
  refer to the same think.

10
Integrated Circuits (IC)

• Small-Scale Integration (SSI)
• Typically they contain a handful of gates or
  flip-flops, the basic building blocks of digital
  design.
• They usually come in dual in-line-pin (DIP)
  package.
• Example 7400-series of SSI ICs
• Medium-Scale Integration (MSI)
• Contains the equivalent of about 20-200 gates.
• Typically it contains a functional building
  block, such as a decoder, register, or counter.
• Equivalent building blocks are used extensively
  in the design of large ICs.

11
Integrated Circuits (IC)

• Large-Scale Integration (LSI)
• Contain equivalent of 200 200,000 gates or
  more. LSI parts include small memories,
  microprocessors, programmable logic devices, and
  customized devices.
• Dividing line between LSI and very large-scale
  integration (VLSI) is fuzzy and tends to be
  stated in terms of transistor count rather than
  gate count.
• Very Large-Scale Integration (VLSI)
• Any IC with over 1,000,000 transistors is
  definitely VLSI.
• Now days it includes most microprocessors and
  memories as well as larger programmable logic
  devices and customized devices.
• In 1999 VLSI ICs with as many as 50 million
  transistors were being designed.

12
Programmable Logic Devices

• There are a wide variety of ICs that can have
  their logic function programmed into them after
  they are manufactured. Most of these devices use
  technology that also allows the function to be
  reprogrammed.
• Reprogrammability allows bug fixes to be made to
  the original design. This may mean that the fix
  can be done without physically replacing or
  rewiring the device.

13
Programmable Logic Devices

• Programmable Logic Arrays (PLAs)
• Historically they are the first programmable
  logic devices.
• PLSs contained two-level structure of AND and OR
  gates with user-programmable connections.
• Using this structure a designer could accommodate
  any logic function up to a certain level of
  complexity using the well-known theory of logic
  synthesis and minimization.
• PLA structure was enhanced and PLA costs were
  reduced with the introduction of programmable
  array logic (PAL) devices. Today such devices are
  generically called programmable logic devices
  (PLDs) and are the MSI of the programmable
  logic industry.
• The ever-increasing capacity of integrated
  circuits created an opportunity of IC
  manufactures to design larger PLDs for larger
  digital-design applications. For technical
  reasons the basic two-level AND-OR structure of
  PLDs could not be scaled to larger sizes.
  Instead, IC manufacturers devised complex PLD
  (CPLD) architectures to achieve the required
  scale.

14
Programmable Logic Devices

• Complex Programmable Logic Devices (CPLD).
• A typical CPLD is merely a collection of multiple
  PLDs and an interconnection structure, all on the
  same chip.
• In addition to the individual PLDs, the on-chip
  interconnection structure is also programmable
  providing a rich variety of design possibilities.

• CPLDs can be scaled to larger sizes by increasing
  the number of individual PLDS and the richness of
  the interconnection structure of the CPLD chip.

15
Programmable Logic Devices

• Field-Programmable Gate Arrays (FPGA)
• At about the same time that CPLDs were being
  invented, other IC manufacturers took a different
  approach to scaling the size of programmable
  logic chips. FPGA as compared to CPLDs contain a
  much larger number of smaller individual logic
  blocks and provides a large, distributed
  interconnection structure that dominates the
  entire chip. The Figure 1. illustrated the
  difference between the two chip-design approaches.

16
Programmable Logic Devices

• CPLD

• FPGA

Logic Block
PLD
PLD
PLD
PLD
Programmable Interconnect
PLD
PLD
PLD
PLD
17
Programmable Logic Devices

• Xilinx Inc. (largest manufacturer of large
  programmable logic devices) acknowledges that
  there is a place for both approaches and it
  manufactures both type of devices.
• What is more important than chip architecture is
  that both approaches support a style of design in
  which products can be moved from design concept
  to prototype and production in a very short time.
• Also important in achieving short
  time-to-market for all kinds of PLD based
  products is the use of HDLs in their design.
  Languages like VHDL, Verilog, ABEL and their
  accompanying software tools, allow a design to be
  compiled, synthesized, and downloaded into a PLD,
  CPLD, or FPGA literally in minutes.
• The power of highly structured, hierarchical
  languages like VHDL is especially important in
  helping designers to utilize the hundreds of
  thousands or millions of gates that provided in
  the largest CPLDs and FPGAs.

18
Application Specific ICs (ASICs)

• Perhaps the most interesting developments in IC
  technology for the average digital designer are
  not the ever-increasing chip sizes, but the
  ever-increasing opportunities to design your own
  chip. Chips designed for a particular, limited
  product or application are called semi-custom ICs
  or application-specific ICs (ASICs).
• ASICs generally reduce the total component and
  manufacturing cost of a product by reducing chip
  count, physical size, and power consumption, and
  they often provide higher performance.

19
Application Specific ICs (ASICs)

• The nonrecurring engineering (NRE) cost for
  designing an ASIC can exceed the cost of a
  discrete design by 5,000 to 250,000 or more.
  NRE charges are paid to the IC manufacturer and
  others who are responsible for designing the
  internal structure of the chip, creating tooling
  such as the metal masks for manufacturing the
  chips, developing tests for the manufactured
  chips, and actually making the first few sample
  chips.
• The NRE cost for a typical, medium-complexity
  ASIC with about 100,000 gates is 30,000-50,000.
  An ASIC design normally makes sense only when the
  NRE cost can be offset by the per-unit savings
  over the expected sales volume of the product.
• The NRE cost to design a custom LSI chip a chip
  whose functions, internal architecture, and
  detailed transistor-level design is tailored for
  a specific customer is very high 250,000 or
  more. Thus full custom LSI design is done only
  for chips that have general commercial
  application or that will enjoy very high sales
  volume in a specific application (e.g., a digital
  watch chip, a network interface, or a
  bus-interface circuit for a PC).

20
Application Specific ICs (ASICs)

• Reduction of NRE cost
• IC manufacturers have developed libraries of
  standard cells including commonly used MSI
  functions such as
• Decoders,
• Registers, and
• Counters
• and commonly used LSI functions such as
• Memories,
• Programmable Logic Arrays, and
• Microprocessors.

21
Application Specific ICs (ASICs)

• Standard-Cell Design
• Logic designer interconnects functions in much
  the same way as in a multi-chip MSI/LSI design.
• Custom cells are created only if absolutely
  necessary. All of the cells are then laid out on
  the chip, optimizing the layout to reduce
  propagation delays and minimize the size of the
  chip.
• Minimizing the chip size reduces the per-unit
  cost of the chip, since it increases the number
  of chips that can be fabricated on a single
  wafer.
• The NRE cost for a standard-cell design is
  typically on the order of 150,000.

22
Application Specific ICs (ASICs)

• IC manufacturers have gone one step further to
  bring ASIC design capability to the masses since
  150,000 is still a lot of money for most
  people/companies.
• Gate-Array is an IC whose internal structure is
  an array of gates whose interconnections are
  initially unspecified.
• The logic designer specifies the gate types and
  interconnections.
• Even though the chip design is ultimately
  specified at this very low level, the designer
  typically works with macro-cells, the same
  high-level functions used in multi-chip MSI/LSI
  and standard-cell designs software expands the
  high-level design into a low-level one.
• Main difference between standard-cell and
  gate-array design is that
• Macro-cells and the chip layout of a gate array
  are not as highly optimized as those in
  standard-cell design, so the chip may be 25 or
  more larger and therefore may cost more.
• There is no opportunity to create custom cells in
  the gate-array approach.
• On the other hand gate-array design can be
  finished faster and at a lower NRE cost, ranging
  from about 5000 (what you are told initially) to
  75,000 (what you find out you have spend when
  you are all done).

23
Application Specific ICs (ASICs)

• Basic Digital Design Methods covered in the class
  apply very well to the functional design of ASICs
  as well. However, there additional
• Opportunities,
• Constraints, and
• Steps in ASIC design.
• It depends usually on the particular ASIC vendor
  and design environment used.

24
Printed-Circuit Boards

• An IC is normally mounted on a printed-circuit
  board (PCB) that connects it to other ICs in a
  system.
• Multilayer PCBs used in typical digital systems
  have copper wiring etched on multiple, thin
  layers of fiberglass that are laminated into a
  single board about 1/16 inch think
• PCB traces individual wire connections are
  usually quite narrow, 10-25 mils typically (1 mil
  1/1000 inch).
• In Fine-line PCB technology the traces are
  extremely narrow, as little as 4 mils wide with 4
  mils spacing between adjacent traces. Thus, up to
  125 connections may be routed in a one-inch-wide
  band on a single layer of the PCB. If higher
  connection density is needed them more layers are
  required.

25
Printed-Circuit Boards

• Surface-Mount Technology (SMT) is the most common
  technology used in modern PCBs
• Instead of having long pins of DIP packages that
  poke through the board and are soldered to the
  underside
• The leads of SMT IC packages are bent to make
  flat contact with the top surface of the PCB.
• Before components are mounted on the PCB, a
  special solder paste is applied to contact pads
  on the PCB using a stencil whose hole pattern
  matches the contact pads to be soldered.
• The SMT components are placed on the pads, where
  they are held in place by the solder paste (or by
  glue in some cases)
• Finally the entire assembly is passed through an
  oven to melt the solder paste which then
  solidifies when cooled.

26
Printed-Circuit Boards

• Surface-mount component technology, coupled with
  fine-line PCB technology, allows extremely dense
  packing of integrated circuits and other
  components on PCB.
• For very high-speed circuits, dense packing goes
  a long way toward minimizing adverse analog
  phenomena, including transmission-line effects
  and speed-of-light limitations.

27
Printed-Circuit Boards

• To satisfy most stringent requirements for speed
  and density, multi-chip modules (MCMs) have been
  developed.
• In this technology, IC dice (plural for die), are
  not mounted in individual plastic or ceramic
  packages, instead
• The IC dice for a high-speed subsystem (e.g., a
  processor and high-speed memory), are bonded
  directly to a substrate that contains the
  required interconnections on the multiple layers.
• The MCM is hermetically sealed and has its own
  external pins for power, ground, and just those
  signals that are required by the system that
  contains it.

28
Digital-Design Levels

• Digital Design can be carried out at several
  different levels of representation and
  abstraction. Although, one may learn and practice
  design at a particular level, from time to time
  it is needed to go up or down a level or two to
  get the job done.
• In industry the most designers have been steadily
  moving to higher levels of abstraction as circuit
  density and functionality have increased.
• The lowest level of digital design is device
  physics and IC manufacturing processes. This is
  the level that is primarily responsible for the
  breathtaking advances in IC speed and density
  that have occurred over the past decades. The
  effects of these advances are summarized in
  Moores Law, first stated by Intel founder Gordon
  Moore in 1965
• The number of transistors per square inch in an
  IC doubles every year.
• In recent years the rate of advance has slowed
  down to doubling about every 18 months, but it is
  important to note that with each doubling of
  density has come the doubling of speed.
• To get the importance of the need to design a
  module at a different level consider the example
  of multiplexer
• Assume a multiplexer with two data input bits A
  and B, a control input bit S, and an output bit Z
  as depicted in Figure 2.

29
Digital-Design Levels

• Switch Model for multiplexer function

• Truth table for the multiplexer function
• Z SA SB

A
S A B Z
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 0
1 1 1 1
Z
B
S
30

• Gate level logic diagram for multiplexer function
  it requires 15 CMOS transistors for the gates
  shown

• If design is carried at the device level the can
  be done with only 6 CMOS transistors
