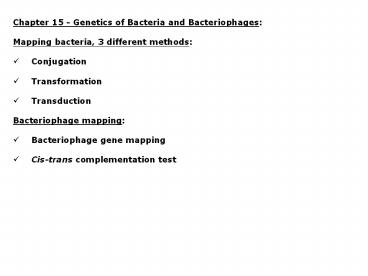

Chapter 15 - Genetics of Bacteria and Bacteriophages:

1

• Chapter 15 - Genetics of Bacteria and
  Bacteriophages
• Mapping bacteria, 3 different methods
• Conjugation
• Transformation
• Transduction
• Bacteriophage mapping
• Bacteriophage gene mapping
• Cis-trans complementation test

2

• Bacteria transfer (or receive) genetic material 3
  different ways
• Conjugation
• Transformation
• Transduction
• Transfer of DNA always is unidirectional, and no
  complete diploid stage forms.

3
(No Transcript)
4

• Conjugation
• Discovered by Joshua Lederberg and Edward Tatum
  in 1946.
• Unidirectional transfer of genetic material
  between donor and recipient bacteria cells by
  direct contact.
• Segment (rarely all) of the donors chromosome
  recombines with the homologous recipient
  chromosome.
• Recipients containing donor DNA are called
  transconjugants.

5
Fig. 15.2, Lederberg Tatum (1946) Experiment
demonstrating recombination in E. coli.
Recombination of 2 complimentary auxotrophs gives
rise to a strain that can synthesize all
nutrients.
6
Fig. 15.3, Bernard Davis experiment demonstrated
that physical contact is required for bacterial
recombination.
7

• Conjugation-transfer of the sex factor F
• William Hayes (1953) demonstrated that genetic
  exchange in E. coli occurs in only one direction.
• Genetic transfer is mediated by sex factor F.
• Donor is F and recipient is F-.
• F is a self-replicating, circular DNA plasmid
  (1/40 the size of the main chromosome).
• F plasmid contains an origin sequence (O), which
  initiates DNA transfer. It also contains genes
  for hair-like cell surface (F-pili or sex-pili),
  which aid in contact between cells.
• No conjugation can occur between cells of the
  same mating type.
• Conjugation begins when the F plasmid is nicked
  at the origin, and a single strand is transferred
  using the rolling circle mechanism.
• When transfer is complete, both cells are F
  double-stranded.

8
Figs. 15.4 15.5a Transfer of the F factor
9

• Conjugation of high-frequency recombinant
  strains
• No chromosomal DNA is transferred by standard sex
  factor F.
• Transfer of chromosome DNA is facilitated by
  special strains of F integrated into the
  bacteria chromosome by crossing over.
• Hfr strains high frequency recombination
  strains.
• Discovered by William Hayes and Luca
  Cavalli-Sforza.
• Hfr strains replicate F factor as part of their
  main chromosome.
• Conjugation in Hfr strains begins when F is
  nicked at the origin, and F and bacteria
  chromosomal DNA are transferred using the rolling
  circle mechanism.
• Complete F sequence (or complete chromosomal
  DNA) is rarely transferred (1/10,000) because
  bacteria separate randomly before DNA synthesis
  completes.
• Recombinants are produced by crossover of the
  recipient chromosome and donor DNA containing F.

10
Fig. 15.5b Transfer of the Hfr F factor
11

• Fig. 15.6
• Excision of the F factor also occurs
  spontaneously at low frequency.
• Begin with Hfr cell containing F.
• Small section of host chromosome also may be
  excised, creating an F plasmid.
• F plasmid is named for the gene it carries,
  e.g., F (lac)

12

• Using conjugation to map bacterial genes
• Begin with two different Hfr strains selected
  from F x F- crosses and perform an interrupted
  mating experiment.
• HfrH thr leu aziR tonR lac gal strR
• F- thr leu aziS tons lac gal strS
• Mix 2 cell types in medium at 37C.
• Remove at experimental time points and agitate to
  separate conjugating pairs.
• Analyze recombinants with selective media.
• Order in which genes are transferred reflects
  linear sequence on chromosomes and time in media.
• Frequency of recombinants declines as donor gene
  enters recipient later.

13
Fig. 15.7 Interrupted mating experiment
14
Fig. 15.7b
15
Fig. 15.7c, Genetic map-results of interrupted E.
coli mating experiment.
16

• Generating a map for all of E. coli
• Location and orientation of the Hfr F in the
  circular chromosome varies from strain to strain.
• Overlap in transfer maps from different strains
  allow generation of a complete chromosomal map.

Fig. 15.8
17
Circular genetic map of E. coli Total map units
100 minutes Time required for E. coli
chromosome to replicate at 37C.
18

• Transformation
• Unidirectional transfer of extracellular DNA into
  cells, resulting in a phenotypic change in the
  recipient.
• First discovered by Frederick Griffith (1928).
• DNA from a donor bacteria is extracted and
  purified, broken into fragments, and added to a
  recipient strain.
• Donor and recipient have different phenotypes and
  genotypes.
• If recombination occurs, new recombinant
  phenotypes appear.

19

• More about transformation
• Bacteria vary in their ability to take up DNA.
• Bacteria such as Bacillus subtilis take up DNA
  naturally.
• Other strains are engineered (i.e., competent
  cells).
• Competent cells are electroporated or treated
  chemically to induce E. coli to take up
  extracellular DNA.

http//medicalphysicsweb.org/cws/article/research/
27152
20
Fig. 15.9, Transformation of Bacillus subtilus
Heteroduplex DNA
21

• Mapping using transformation
• Recombination frequencies are used to infer gene
  order.
• p q o x p q o
• If p and q frequently cotransform, order is
  p-q-o.
• If p and o frequently cotransform, order is
  p-o-q.

22

• Transduction
• Bacteriophages (bacterial viruses) transfer genes
  to bacteria (e.g., T2, T4, T5, T6, T7, and ?).
• Generalized transduction transfers any gene.
• Specialized transduction transfers specific
  genes.
• Phages typically carry small amounts of DNA, 1
  of the host chromosome.
• Viral DNA undergoes recombination with homologous
  host chromosome DNA.

23
Fig. 15.12 Life cycle of phage ?
24
Fig. 15.13 Generalized transduction of E. coli
by phage P1
25

• Transduction mapping is similar to transformation
  mapping
• Gene order is determined by frequency of
  recombinants.
• If recombination rate is high, genes are far
  apart.
• If recombination rate is low, genes are close
  together.

26

• Mapping genes of bacteriophages (see Fig. 15.15)
• Infect bacteria with phages of different
  genotypes using two-, three-, or four-gene
  crosses ? crossover.
• Count recombinant phage phenotypes by determining
  differences in cleared areas (no bacteria growth)
  on a bacterial lawn.
• Different phage genes induce different types of
  clearing (small/large clearings with
  fuzzy/distinct borders).

27
Fig. 15.16 15.17
28

• Fine structure gene-mapping of bacteriophages
• Same principles of intergenic mapping also can be
  used to map mutation sites within the same gene,
  intragenic mapping.
• First evidence that the gene is sub-divisible
  came from C. P. Oliver s (1940) work on
  Drosophila.
• Seymour Benzers (1950-60s) study of the rII
  region of bacteriophage T4.

29

• Seymour Benzers (1950-60s) study of the rII
  region of T4
• Studied 60 independently isolated rII mutants
  crossed in all possible combinations.
• Began with two types of traits plaque
  morphology and host range property.
• Growth in permissive host E. coli B all four
  phage types grow.
• Growth in non-permissive host E. coli K12(?)
  rare r recombinants grow (rare because the
  mutations are close to each other and crossover
  is infrequent).
• Benzer studied 3000 rII mutants showing
  nucleotide deletions at different levels of
  subdivision (nested analyses).
• Was able to map to T4 to level equivalent to 3 bp
  (the codon).
• Ultimately determined that the rII region is
  sub-divisible into gt300 mutable sites by series
  of nested analyses and comparisons.

30
Benzer identified recombinants of two rII mutants
of T4 using different strains of E. coli.
31
Fig. 15.18, Benzers map of the rII region
generated from crosses of 60 different mutant T4
strains.
32
Fig. 15.19 Benzers deletion analysis of the rII
region of T4 No recombinants can be produced if
mutant strain lacks the region containing the
mutation.
33
Fig. 18.20 (2nd edition), Benzers deletion map
divided the rII region into 47 segments.
34
Fig. 15.20, Benzers composite map of the rII
region indicating gt300 mutable sites on two
different genes. Small squares indicate point
mutations mapping to a given site.
35

• Seymour Benzers cis-trans complementation test
• Used to determine the number of functional units
  (genes) defined by a given set of mutations, and
  whether two mutations occur on the same unit or
  different units.
• If two mutants carrying a mutation of different
  genes combine to create a wild type function, two
  mutations compliment.
• If two mutants carrying a mutation of the same
  gene create a mutant phenotype, mutations do not
  compliment.

36
Fig. 15.21, Seymour Benzers cis-trans
complementation test.
37
Example of complementation in Drosophila
