SECURE PROGRAMMING

1

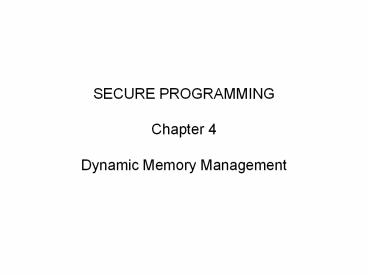

SECURE PROGRAMMING Chapter 4 Dynamic Memory
Management
2
Overview

• Introduction
• C Memory Management
• Common C Memory Management errors
• C Dynamic Memory Management
• Common C Dynamic Memory Management Errors
• Memory Managers
• Doug Lea's Memory Allocator
• RtlHeap

• Heap management vulnerabilities
• Buffer overflows
• Double-Free Vulnerabilities
• Writing to freed memory
• Another Windows vulnerability Look-Aside Table
• Mitigation Strategies
• Vulnerability Hall of Shame
• Summary

3
Introduction

• Memory management is a source of
• programming defects
• security flaws
• vulnerabilities
• Main causes
• Double freeing
• Buffer overflows
• use of freed pointers
• .

4
C Memory Management

• Functions defined
• malloc(size_t size)
• aligned_alloc(size_t alignment,size_t size)
• realloc(void p, size_t size) (Do not use size0)
• calloc(size_nmemb, size_t size) (initializes to
  0)
• free(void p)

5
C Memory Management

• The importance of alignment
• subobjects
• complete objects
• alignment hierarchy (weaker to stronger/stricter)
• max_align_t
• alignas(size_t size) (support for SIMD)
• extended alignment gt max_align_t
• overaligned type
• Note that realloc() does not preserve alignment!

6
C Memory Management

• alloca(size_t size)
• Allocates on stack area
• Usually inlined
• Non-standard
• Dangerous
• Variable length arrays similar. Lots of caveats

7
Common C Memory Management Errors

• Initialization errors
• Random behavior
• Security leaks
• Use memset(void s, int c, size_t n) or
  memset_s()
• Can use calloc, provided the product of the
  arguments doesn't overflow.

8
Common C Memory Management Errors

• Failing to check return values
• AIX and Linux may allow allocation requests to
  succeed even if there is no space, and then kill
  the process when it tries to access too much
  memory.
• Causes for Heap exhaustion
• memory leaks
• Data structures incorrectly implemented
• Overall system memory exhausted
• Other transient conditions
• An example indirecting through an offset of the
  returned pointer (p 154)

9
Common C Memory Management Errors

• Dereferencing Null or Invalid Pointers (or their
  offsets)
• Referencing Freed Memory
• Freeing Memory Multiple times (example, page 157)
• Memory Leaks (can facilitate DOS attacks)
• Zero-Length Allocations (pp 159-160)

10
C Dynamic Memory Management

• Only dynamic functions are
• new type (initialization list)
• delete item (or x)
• (Constructors cannot be called explicitly)
• new return a pointer to the object requested
  initialized if given initializer data
• new delete, plain for scalar data, for
  arrays
• Also
• new (place) type (initialization list)

11
C Dynamic Memory Management Allocation Functions

• Class member or global function
• May not
• Use namespace other than global
• Declare as static in global scope
• Returns a void
• First parameter stdsize_t size
• Idea is that new is implemented through
  malloc/calloc
• Failure throws an exception of type
  stdbad_alloc unless called with argument
  stdnothrow in that case, it returns null
  pointer
• T p1 new T // can throw bad_alloc
• T p2 new(stdnothrow) T // returns null
  pointer on failure

12
C Dynamic Memory Management More on allocation
failures

• Standard idiom for allocation and allocation
  failure Resource Acquisition Is Initialization
  (RAII)
• Attach lifetime of a resource to lifetime of
  object it refers to
• Examples, pages 166, 167, 168 (gets handler
  address)

13
C Dynamic Memory Management Deallocation
Functions

• Same restrictions as on allocate functions.
• Returns void, first parameter is void , may have
  second parameter either
• a) delete() one parameter
• b) delete() two parameters, second type
  stdsize_t
• Both scalar and versions.
• If first parameter is void, is a no-op.
• If first argument is none-of-the-above, we have
  problems.

14
C Dynamic Memory Management Garbage Collection

• Optional in C
• Boehm-Demers-Weiser conservative GC does not
  require use of free/delete.
• Can also be used to detect memory leaks.
• Weakness
• Disguised pointers.
• Modified pointers
• Non referenced pointers (examples, pp 169-170)

15
C Dynamic Memory Management Garbage Collection

• Remedy?
• Inquire rules for pointer safety
• relaxed Normal rules
• preferred (similar to relaxed, but a gc may
  run to detect leaks or bad pointers
• strict (gc may be running)
• namespace std
• enum class pointer_safety relaxed,
  preferred, strict
• pointer_safety get_pointer_safety()

16
C Dynamic Memory Allocation Garbage Collection

• In C11
• declare_reachable/undeclare_reachable page 171

17
Common C Dynamic Memory Management ErrorsBad
Allocation Failure check

• C allows either NULL return or exception
  throwing do not mix! (stdnothrow)

18
Common C Dynamic Memory Management Errors

• Improperly pairing C and C memory management
  functions.
• C is a superset of C, so malloc friends/free
  are OK to use, However, they may use different
  memory areas and the do use different algorithms.
  Do not mix!

19
Common C Dynamic Memory Management Errors

• Use scalar new with scalar delete
• use array new with array delete.
• There are new, member new, operator new and
• delete, member delete, operator delete.
• Operator new may allocate raw memory, without
  calling a constructor don't call a destructor.
  Call operator delete instead.

20
Common C Dynamic Memory Management Errors
21
Common C Dynamic Memory Management Errors

• Double freeing memory

22
Common C Dynamic Memory Management Errors

• Standard C containers with pointers do not
  delete their objects, means programmer has to do
  it (p 177) but
• (p 178 double-free vulnerability)
• Also, not exception-safe.
• Solutions
• 1) Garbage collecting memory management.
• 2) Smart pointers overload -gt and to act like
  pointers (add check for Null, GC, reference
  counts, etc.)
• Most common smart pointer
• stdshared_ptr from standard library (pp 178/179)

23
Common C Dynamic Memory Management Errors

• Deallocation Function throws an exception NONO
• (p 180)

24
Memory Managers

• Manage both allocated and free memory.
• Runs as part of the user process
• Three types
• OS supplied
• Compiler supplied
• User supplied
• Algorithm due to D. E Knuth, The Art of Computer
  Programming (several editions)
• First fit vs best fit.
• In band linked lists may be a bad idea, but there
  are none better.

25
Doug Lea's Memory Allocator

• dlmalloc

26
Doug Lea's Memory Allocator
27
Doug Lea's Memory allocator

• Free chunks arranged in circular double-linked
  headed lists called bins
• Small sizes have dedicated bins, larger sizes
  have bins dedicated to a range of sizes, arranged
  in descending size order.
• Special bin for recently freed chunks, acts like
  cache one chance and they are ent to regular
  bin.
• Unlink macro takes a chunk from the bin (code
  page 184, picture, page 185)

28
RtlHeap by Microsoft
29
RtlHeap by Microsoft Virtual Memory API

• Page base
• 32 bit linear addressing
• 4096 byte pages
• Each region either reserved, committed or
  free.Must have common protection, type, base
  allocationPages also protection and pagelock
  flag status bits

30
RtlHeap by MicrosoftHeap Memory API

• HeapCreate(maxsize...) ? unique handle
• Default heap, handle obtainable with
  GetProcessHeap()

31
RtlHeap by MicrosoftLocal, Glabal Memory API

• Provided local and global memory management for
  backward compatibility with Windows 3.1

32
RtlHeap by MicrosoftCRT Memory Functions

• Before Win32, much FUD, with Win32 uses
  local/global memory management and is safe and
  portable.

33
RtlHeap by MicrosoftMemory-Mapped File API

• Virtual address space mapped directly onto a
  file ? file access becomes dereferencing a
  pointer.

34
RtlHeap by MicrosoftData Structures

• Uses virtual memory API,
• Implements all the others
• Constantly evolving
• Programmers need to assume least secure version.
• Internal data structures
• Process environment block
• free lists
• look aside lists
• memory chunk structures

35
RtlHeap by MicrosoftData Structures Process Env
Block

• Maintains global variables for each process.

36
RtlHeap by MicrosoftData Structures FreeList

• Array of 128 LIST_ENTRY structs head of
  double-linked lists..
• Located at 0x178 from address returned by
  HeapCreate()
• Keep track of free chunks of a particular size
  index8, except FreeList0, keeps buffers gt
  1024, lt virtual allocation threshold, sorted from
  smallest to largest.

37
RtlHeap by MicrosoftData Structures FreeList
38
RtlHeap by MicrosoftData Structures Look-aside
Lists

• Requires HEAP_NO_SERIALIZE not set and
  HEAP_GROWABLE set (defaults)
• Creates 128 singly linked look-aside lists
• speed up allocation of small ( lt 1016 bytes)
  blocks
• Start out empty, grow as memory is freed.

39
RtlHeap by MicrosoftData Structures Memory
Chunks

• This structure precedes address returned by
  HeapAlloc by 8 bytes. Chunk size field are given
  in quad words (i.e./8)

40
RtlHeap by MicrosoftData Structures Memory
Chunks

• Free chunk picture

41
RtlHeap by Microsoft
42
RtlHeap by Microsoft
43
RtlHeap by Microsoft
44
RtlHeap by Microsoft
45
RtlHeap by Microsoft
46
Doug Lea's Memory allocator
47
Double-Free Vulnerabilities
48
Mitigation Strategies
49
Vulnerability Hall of Shame
50
Summary

• C Memory Management
• Common C Memory Management errors
• C Dynamic Memory Management
• Common C Dynamic Memory Management Errors
• Memory Managers
• Doug Lea's Memory Allocator
• Double-Free Vulnerabilities
• Mitigation Strategies
• Vulnerability Hall of Shame
• Summary
