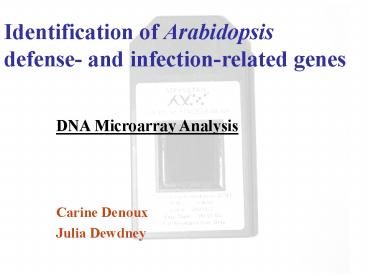

Identification of Arabidopsis defense- and
infection-related genes
DNA Microarray Analysis Carine Denoux Julia
Dewdney
2
Steps for obtaining Microarray Data

• Arabidopsis pathogen experiment
• Total RNA isolation quality controls
• Labeled cRNA target synthesis quality controls
• Probe array Hybridization
• Probe array analysis
• Data analysis

3
Arabidopsis pathogen Experiment

• Each person does they experiment or treatment.
• Experiments are repeated 3 times with control
• Maximum 14 samples per experiment, if not I need
  to split experiment in half

4
Total RNA isolation
RNeasy Qiagen kitTotal RNA isolation from
Plants and fungi
5
Total RNA quality controls

• Check the ratio A260/280 in Tris between
  1.9 and 2.1 have a good purity
• Assess the RNA integrity on Bioanalyser with
  agilent technologies

6
The Agilent 2100 BioAnalyzer
This instrument uses lab-on-a-chip technology to
perform automated quality control by capillary
electrophoresis

• It improves RNA analysis
• Rapid visualization of sample quality (12
  samples in 30 min)
• High sensitivity small amount (100-200ng RNA)
• Reduced use and waste of hazardous chemicals
• The system software provides
• access to real-time data.

7
RNA 6000 Nano Assay
8
Total RNA profile
Electropherogram total RNA
9
Labeled cRNA target synthesis
First second strand cDNA synthesis
Total RNA
Cleanup of double-stranded cDNA

In vitro transcription (IVT) cRNA synthesis
Cleanup of biotin-labeled cRNA
OD bioanalysis
fragmentation
OD bioanalysis
10
cRNA Quality control
Before fragmentation
Before Frgt After Frgt
4000 2000 1000 500 200 marker
After fragmentation
11
Probe array Hybridization

• To get hybridization Cocktail
• Hybridize 16 hours at 45 F the test probe array
• Washing and Staining the array on fluidic
  station
• Scanning the test chip
• Analyze data
• Hybridize the real probe array

12
Chips
13
Fluidic station
microarray
staining buffer
14
Fluidic protocol-Eukaryotic target
15
Probe array analysis

• Watch no bubbles on chip before scanning
• Remove bubbles (50 array have bubbles)
• refill in fluidic station or remove by
  pipetting
• Scanning each array 2 times
• Check image data

16
Image Data
17
Image control in center
Control standard gene
Control probe set
18
Image control on corners
Image data
with grid
Signal and grid match on 4 corners
19
Initial Data Analysis with MAS 5
MicroArray Suite 5

• Pivot table
• Bio controls probe set and standard genes
• are indicative of hybridization and array
  sensitivity
• Analyses table
• RawQ ? noise control, 1 is low noise
• gt 5 array is not good for data analyses
• SF Scaling Factor ? reflect the intensity
• lower and the same across all arrays is better

We use the intensity data in resolver data base
for comparative analyses
20
Conclusion

• Time of my work is between 2 and 3 weeks
• Each control step is important ? high cost of
  each sample

21
Summary

• Experiment carried out
• AtOGs, AtBc, Simone exp
• AtEo, Mary exp
• AtBc, Joulia exp Simone exp
• Future experiment
• AtEo Julia exp
• At Ps SAS JianPing exp,
• AtFo Andrew exp
