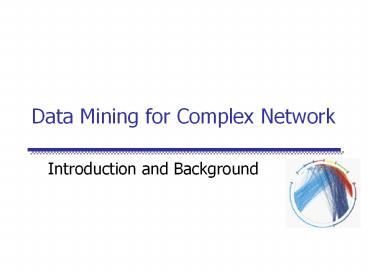

Data Mining for Complex Network

1
Data Mining for Complex Network

• Introduction and Background

2
Welcome!

• Instructor Ruoming Jin
• Homepage www.cs.kent.edu/jin/
• Office 264 MCS Building
• Email jin_at_cs.kent.edu

3
Course overview

• The course goal
• First of all, this is a research course, or a
  special topic course. There is no textbook and
  even no definition what topics are supposed to
  under the course name?
• Discussing the state-of-are techniques for mining
  complex networks
• Review Course Project

4
Simple Concepts (Review)

• ErdosRényi model Random Graph Model
• Markov Chain and Random Walk
• Maximal Likelihood/Model Selection

5
Requirement

• Each of you will have one presentation
• Review Paper
• Select a topic and review at least four papers
• Bonus Develop a new idea on this topic
• Course Project
• One or Two a group
• Collect data preprocess data analyzing the
  data
• Final Grade 30 presentations, 25 review, 35
  project, and 10 class participation

6
What is a network?

• Network a collection of entities that are
  interconnected with links.
• people that are friends
• computers that are interconnected
• web pages that point to each other
• proteins that interact

7
Graphs

• In mathematics, networks are called graphs, the
  entities are nodes, and the links are edges
• Graph theory starts in the 18th century, with
  Leonhard Euler
• The problem of Königsberg bridges
• Since then graphs have been studied extensively.

8
Networks in the past

• Graphs have been used in the past to model
  existing networks (e.g., networks of highways,
  social networks)
• usually these networks were small
• network can be studied visual inspection can
  reveal a lot of information

9
Networks now

• More and larger networks appear
• Products of technological advancement
• e.g., Internet, Web
• Result of our ability to collect more, better,
  and more complex data
• e.g., gene regulatory networks
• Networks of thousands, millions, or billions of
  nodes
• impossible to visualize

10
The internet map
11
Understanding large graphs

• What are the statistics of real life networks?
• Can we explain how the networks were generated?
• What else? A still very young field!
• (What is the basic principles and what those
  principle will mean?)

12
Measuring network properties

• Around 1999
• Watts and Strogatz, Dynamics and small-world
  phenomenon
• Faloutsos3, On power-law relationships of the
  Internet Topology
• Kleinberg et al., The Web as a graph
• Barabasi and Albert, The emergence of scaling in
  real networks

13
Real network properties

• Most nodes have only a small number of neighbors
  (degree), but there are some nodes with very high
  degree (power-law degree distribution)
• scale-free networks
• If a node x is connected to y and z, then y and z
  are likely to be connected
• high clustering coefficient
• Most nodes are just a few edges away on average.
• small world networks
• Networks from very diverse areas (from internet
  to biological networks) have similar properties
• Is it possible that there is a unifying
  underlying generative process?

14
Generating random graphs

• Classic graph theory model (Erdös-Renyi)
• each edge is generated independently with
  probability p
• Very well studied model but
• most vertices have about the same degree
• the probability of two nodes being linked is
  independent of whether they share a neighbor
• the average paths are short

15
Modeling real networks

• Real life networks are not random
• Can we define a model that generates graphs with
  statistical properties similar to those in real
  life?
• a flurry of models for random graphs

16
Processes on networks

• Why is it important to understand the structure
  of networks?
• Epidemiology Viruses propagate much faster in
  scale-free networks
• Vaccination of random nodes does not work, but
  targeted vaccination is very effective

17
The future of networks

• Networks seem to be here to stay
• More and more systems are modeled as networks
• Scientists from various disciplines are working
  on networks (physicists, computer scientists,
  mathematicians, biologists, sociologist,
  economists)
• There are many questions to understand.

18
Basic Mathematical Tools

• Graph theory
• Probability theory
• Linear Algebra

19
Graph Theory

• Graph G(V,E)
• V set of vertices
• E set of edges

2
1
3
5
4
undirected graph E(1,2),(1,3),(2,3),(3,4),(4,5)
20
Graph Theory

• Graph G(V,E)
• V set of vertices
• E set of edges

2
1
3
5
4
directed graph E1,2, 2,1 1,3, 3,2,
3,4, 4,5
21
Undirected graph
2

• degree d(i) of node i
• number of edges incident on node i

1

• degree sequence
• d(1),d(2),d(3),d(4),d(5)
• 2,2,2,1,1

3
5
4

• degree distribution
• (1,2),(2,3)

22
Directed Graph
2

• in-degree din(i) of node i
• number of edges pointing to node i

1

• out-degree dout(i) of node i
• number of edges leaving node i

3

• in-degree sequence
• 1,2,1,1,1
• out-degree sequence
• 2,1,2,1,0

5
4
23
Paths

• Path from node i to node j a sequence of edges
  (directed or undirected from node i to node j)
• path length number of edges on the path
• nodes i and j are connected
• cycle a path that starts and ends at the same
  node

2
2
1
1
3
3
5
5
4
4
24
Shortest Paths

• Shortest Path from node i to node j
• also known as BFS path, or geodesic path

2
2
1
1
3
3
5
5
4
4
25
Diameter

• The longest shortest path in the graph

2
2
1
1
3
3
5
5
4
4
26
Undirected graph

• Connected graph a graph where there every pair
  of nodes is connected
• Disconnected graph a graph that is not connected
• Connected Components subsets of vertices that
  are connected

2
1
3
5
4
27
Fully Connected Graph

• Clique Kn
• A graph that has all possible n(n-1)/2 edges

2
1
3
5
4
28
Directed Graph
2

• Strongly connected graph there exists a path
  from every i to every j

1

• Weakly connected graph If edges are made to be
  undirected the graph is connected

3
5
4
29
Subgraphs

• Subgraph Given V ? V, and E ? E, the graph
  G(V,E) is a subgraph of G.
• Induced subgraph Given V ? V, let E ? E is
  the set of all edges between the nodes in V. The
  graph G(V,E), is an induced subgraph of G

2
1
3
5
4
30
Trees

• Connected Undirected graphs without cycles

2
1
3
5
4
31
Bipartite graphs

• Graphs where the set V can be partitioned into
  two sets L and R, such that all edges are between
  nodes in L and R, and there is no edge within L
  or R

32
Linear Algebra

• Adjacency Matrix
• symmetric matrix for undirected graphs

2
1
3
5
4
33
Linear Algebra

• Adjacency Matrix
• unsymmetric matrix for undirected graphs

2
1
3
5
4
34
Random Walks

• Start from a node, and follow links uniformly at
  random.
• Stationary distribution The fraction of times
  that you visit node i, as the number of steps of
  the random walk approaches infinity
• if the graph is strongly connected, the
  stationary distribution converges to a unique
  vector.

35
Random Walks

• stationary distribution principal left
  eigenvector of the normalized adjacency matrix
• x xP
• for undirected graphs, the degree distribution

2
1
3
5
4
36
Eigenvalues and Eigenvectors

• The value ? is an eigenvalue of matrix A if there
  exists a non-zero vector x, such that Ax?x.
  Vector x is an eigenvector of matrix A
• The largest eigenvalue is called the principal
  eigenvalue
• The corresponding eigenvector is the principal
  eigenvector
• Corresponds to the direction of maximum change

37
Types of networks

• Social networks
• Knowledge (Information) networks
• Technology networks
• Biological networks

38
Social Networks

• Links denote a social interaction
• Networks of acquaintances
• actor networks
• co-authorship networks
• director networks
• phone-call networks
• e-mail networks
• IM networks
• Microsoft buddy network
• Bluetooth networks
• sexual networks
• home page networks

39
Knowledge (Information) Networks

• Nodes store information, links associate
  information
• Citation network (directed acyclic)
• The Web (directed)
• Peer-to-Peer networks
• Word networks
• Networks of Trust
• Bluetooth networks

40
Technological networks

• Networks built for distribution of commodity
• The Internet
• router level, AS level
• Power Grids
• Airline networks
• Telephone networks
• Transportation Networks
• roads, railways, pedestrian traffic
• Software graphs

41
Biological networks

• Biological systems represented as networks
• Protein-Protein Interaction Networks
• Gene regulation networks
• Metabolic pathways
• The Food Web
• Neural Networks

42
Now what?

• The world is full with networks. What do we do
  with them?
• understand their topology and measure their
  properties
• study their evolution and dynamics
• create realistic models
• create algorithms that make use of the network
  structure

43
Measuring Networks

• Degree distributions
• Small world phenomena
• Clustering Coefficient
• Mixing patterns
• Degree correlations
• Communities and clusters

44
Degree distributions
frequency
fk fraction of nodes with degree k
probability of a randomly selected node to
have degree k
fk
degree
k

• Problem find the probability distribution that
  best fits the observed data

45
Power-law distributions

• The degree distributions of most real-life
  networks follow a power law
• Right-skewed/Heavy-tail distribution
• there is a non-negligible fraction of nodes that
  has very high degree (hubs)
• scale-free no characteristic scale, average is
  not informative
• In stark contrast with the random graph model!
• highly concentrated around the mean
• the probability of very high degree nodes is
  exponentially small

p(k) Ck-a
46
Power-law signature

• Power-law distribution gives a line in the
  log-log plot
• a power-law exponent (typically 2 a 3)

log p(k) -a logk logC
a
log frequency
frequency
log degree
degree
47
Examples
Taken from Newman 2003
48
A random graph example
49
Maximum degree

• For random graphs, the maximum degree is highly
  concentrated around the average degree z
• For power law graphs
• Rough argument solve nPXk1

50
Exponential distribution

• Observed in some technological or collaboration
  networks
• Identified by a line in the log-linear plot

p(k) ?e-?k
log p(k) - ?k log ?
log frequency
?
degree
51
Collective Statistics (M. Newman 2003)
52
Clustering (Transitivity) coefficient

• Measures the density of triangles (local
  clusters) in the graph
• Two different ways to measure it
• The ratio of the means

53
Example
1
4
3
2
5
54
Clustering (Transitivity) coefficient

• Clustering coefficient for node i
• The mean of the ratios

55
Example

• The two clustering coefficients give different
  measures
• C(2) increases with nodes with low degree

1
4
3
2
5
56
Collective Statistics (M. Newman 2003)
57
Clustering coefficient for random graphs

• The probability of two of your neighbors also
  being neighbors is p, independent of local
  structure
• clustering coefficient C p
• when z is fixed C z/n O(1/n)

58
Small world phenomena

• Small worlds networks with short paths

Stanley Milgram (1933-1984) The man who shocked
the world
Obedience to authority (1963)
Small world experiment (1967)
59
Small world experiment

• Letters were handed out to people in Nebraska to
  be sent to a target in Boston
• People were instructed to pass on the letters to
  someone they knew on first-name basis
• The letters that reached the destination followed
  paths of length around 6
• Six degrees of separation (play of John Guare)
• Also
• The Kevin Bacon game
• The Erdös number
• Small world project http//smallworld.columbia.ed
  u/index.html

60
Measuring the small world phenomenon

• dij shortest path between i and j
• Diameter
• Characteristic path length
• Harmonic mean

61
Collective Statistics (M. Newman 2003)
62
Mixing patterns

• Assume that we have various types of nodes. What
  is the probability that two nodes of different
  type are linked?
• assortative mixing (homophily)

E mixing matrix
p(i,j) mixing probability
p(j i) conditional mixing probability
63
Mixing coefficient

• Gupta, Anderson, May 1989
• Advantages
• Q1 if the matrix is diagonal
• Q0 if the matrix is uniform
• Disadvantages
• sensitive to transposition
• does not weight the entries

64
Mixing coefficient

• Newman 2003
• Advantages
• r 1 for diagonal matrix , r 0 for uniform
  matrix
• not sensitive to transposition, accounts for
  weighting

(row marginal)
(column marginal)
r0.621
Q0.528
65
Degree correlations

• Do high degree nodes tend to link to high degree
  nodes?
• Pastor Satoras et al.
• plot the mean degree of the neighbors as a
  function of the degree
• Newman
• compute the correlation coefficient of the
  degrees of the two endpoints of an edge
• assortative/disassortative

66
Collective Statistics (M. Newman 2003)
67
Communities and Clusters

• Use the graph structure to discover communities
  of nodes
• essentially clustering and classification on
  graphs

68
Other measures

• Frequent (or interesting) motifs
• bipartite cliques in the web graph
• patterns in biological and software graphs
• Use graphlets to compare models
  Przulj,Corneil,Jurisica 2004

69
Other measures

• Network resilience
• against random or targeted node deletions
• Graph eigenvalues

70
Other measures

• The giant component
• Other?

71
References

• M. E. J. Newman, The structure and function of
  complex networks, SIAM Reviews, 45(2) 167-256,
  2003
• M. E. J. Newman, Random graphs as models of
  networks in Handbook of Graphs and Networks, S.
  Bornholdt and H. G. Schuster (eds.), Wiley-VCH,
  Berlin (2003).
• N. Alon J. Spencer, The Probabilistic Method
