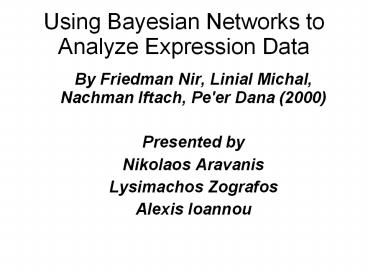

Using Bayesian Networks to Analyze Expression Data

• By Friedman Nir, Linial Michal, Nachman Iftach,
  Pe'er Dana (2000)
• Presented by
• Nikolaos Aravanis
• Lysimachos Zografos
• Alexis Ioannou

2
Outline

• Introduction
• Bayesian Networks
• Application to expression data
• Application to cell cycle expression patterns
• Discussion and future work

3
The Road to Microarray Data Analysis

• Development of microarrays
• Measure all the genes of an organism
• Enormous amount of data
• Challenge Analyze datasets and infer biological
  interactions

4
Most Common Analysis Tool

• Clustering Algorithms
• Allocate groups of genes with similar expression
  patterns over a set of experiments
• Discover genes that are co-regulated

5
Problems

• Data give only a partial picture
• Key events are not reflected (translation and
  protein (in) activation)
• Amount of samples give few information for
  constructing full detailed models
• Using current technologies even few samples have
  high noise to signal ratio

6
Possible Solution

• Analyze gene expression patterns that uncover
  properties of the transcriptional program
• Examine dependence and conditional independence
  of the data
• Bayesian Networks

7
Bayesian Networks

• Represent dependence structure between multiple
  interacting quantities
• Capable of handling noise and estimating the
  confidence in the different features of the
  network
• Focus on interactions whose signal is strong
• Useful for describing processes composed of
  locally interacting components
• Statistical foundations for learning Bayesian
  networks and the statistics to do so are well
  understood and have been successfully applied
• Provide models of causal influence

8
Informal Introduction to Bayesian Networks

• Let P(X,Y) be a joint distribution over variables
  X and Y
• X and Y independent if P(X,Y) P(X)P(Y) for all
  values X and Y

• Gene A is transcriptor factor of gene B
• We expect their expression level to be dependent
• A parent of B
• B trascription factor of C
• Expression levels of each pair are dependent
• If A does not directly affect C, if we fix the
  expression
• level of B, we will observe A and C are
  independent
• P(AB,C) P(AB) (A and C conditionally
  independent of B)
•
  I(ACB)

9
Informal Introduction to Bayesian Networks
(contd)

• Component of Bayesian Networks is that each
  variable
• is a stochastic function of its parents
• Stochastic models are natural in gene expression
  domain
• The biological models we want to process are
  stochastic
• Measurements are noisy

10
Representing Distributions with Bayesian
Networks

• Representation of joint probability distribution
  consisting of 2 components
• Directed acyclic graph (G)
• Conditional distribution for each variable given
  its parents in G
• G encodes Markov Assumption
• By applying chain rule this decomposes in product
  form

11
Equivalence Classes of BNs

• A BN implies further independence assumptions
• gt Ind(G)
• gt1 graphs can imply the same assumptions
• gt Equivalent networks if Ind(G)Ind(G')

12
Equivalence Classes of BNs

• A BN implies further independence statements
• gt Ind(G)
• gt1 graphs can imply the same statements
• gt Equivalent networks if Ind(G)Ind(G')

13
Equivalence Classes of BNs

• For equivalent networks
• DAGs have the same underlying undirected graph.
• PDAGs are used to represent them.

14
Equivalence Classes of BNs

• For equivalent networks
• DAGs have the same underlying undirected graph.
• PDAGs are used to represent them.

Disagreeing edge
15
Learning BNs

• Question
• Given dataset D, what BN, BltG,Tgt best matches D?
• Answer
• Statistically motivated scoring function to
  evaluate each BN e.g. Bayesian Score
• S(GD)logP(GD)logP(DG)logP(G)C,
• where C is a constant independent of G
• and P(DG)?P(DG,T)P(TG)dT
• is the marginal likelihood over all parameters
  for G.

16
Learning BNs

• Question
• Given dataset D, what BN, BltG,Tgt best matches D?
• Answer
• Statistically motivated scoring function to
  evaluate each BN e.g. Bayesian Score
• S(GD)logP(GD)logP(DG)logP(G)C,
• where C is a constant independent of G
• and P(DG)?P(DG,T)P(TG)dT
• is the marginal likelihood over all parameters
  for G.

17
Learning BNs (contd)

• Steps
• Decide priors (P(TD), P(G))
• gt Use of BDe priors
• (structure equivalent, decomposable)
• Find G to maximize S(GD)
• NP hard problem
• gtlocal search using local permutations of
  candidate G

(Heckerman et al. 1995)
18
Learning Causal Patterns

• Bayesian Network is model of dependencies
• Interest in modelling the process that generated
  them.
• gt model the flow of causality in the system of
  interest and create a Causal Network (CN).
• A Causal Network models the probability
  distribution
• as well as the effect of causality.

19
Learning Causal Patterns

• CNs VS BNs
• - CNs interpret parents as immediate causes
• (c.f. BNs)
• - CNs and BNs relate when using the
• Causal Markov Assumption
• given the values of a variable's immediate
  causes, it is independent of its earlier causes,
  if this holds, then BNCN

20
Learning Causal Patterns

• CNs VS BNs
• - CNs interpret parents as immediate causes
• (c.f. BNs)
• - CNs and BNs relate when using the
• Causal Markov Assumption
• given the values of a variable's immediate
  causes, it is independent of its earlier causes,
  if this holds, then BNCN

equivalent BNs but not CNs
21
Applying BNs to Expression Data

• Expression level of each gene as a random
  variable
• Other attributes (e.g temperature, exp.
  conditions) that affect the system can be
  modelled as random variables
• Bayesian Net/ Dependency structure can answer
  queries
• CON problems in computational complexity and
  the statistical significance of the resulting
  networks.
• PRO genetic regulation networks are sparse

22
Representing Partial Models

• Gene networks many variables
• gt gt1 plausible models (not enough data) we can
  learn up to equivalence class.
• Focus on feature learning in order to have a
  causal network

23
Representing Partial Models

• Features
• - Markov relations (e.g. Markov Blanket)
• - Order relations (e.g. X is an ancestor of Y in
  all networks)

24
Representing Partial Models

• Features
• - Markov relations (e.g. Markov Blanket)
• - Order relations (e.g. X is an ancestor of Y in
  all networks)
• Feature learning leads to a Causal Network

25
Statistical Confidence of Features

• Likelihood that a given feature is actually
  true.
• Can't calculate posterior (P(GD))
• gt Bootstrap method

for i1...n resample D with replacement -gt
D' learn G' from D' end
26
Statistical Confidence of Features

• Individual feature confidence (IFC)
• IFC (1/n)?f(G')
• where f(G') 1 if the feature exists in G'

27
Efficient Learning Algorithms

• Vast search space
• gt need efficient algorithms
• Attention on relevant regions of the search
  space
• gt Sparse Candidate Algorithm

28
Efficient Learning Algorithms

• Sparse Candidate Algorithm
• Identify a small number of candidate parents
  for each gene based on simple local statistics
  (e.g. correlation).
• Restrict our search to networks with the
  candidate parents
• Potential pitfall early choice
• gt Solution adaptive algorithm

29
Discretization

• The practical side
• Need to define the local probability model for
  each variable.
• gt discretize experimental data into -1,0,1
• (expression level lower, similar, higher than
  control)
• Set control by averaging.
• Set a threshold ratio for significantly
  higher/lower.

30
Application to Cell Cycle Expression Patterns

• 76 gene expression measurements of the mRNA
  levels of 6177 Saccharomyces cerevisiae ORFs. Six
  time series under different cell cycle
  synchronization methods(Spellman 1998).
• 800 differentially expressed, 250 clustered in 8
  distinct clusters. Variables for the networks
  represent the expression level of the 800 genes.
• Introduced an additional variable that denoted
  the cell cycle phase to deal with the temporal
  nature of the cell cycle process and forced it as
  a root in the network
• Applied Sparse Candidate Algorithm to 200- fold
  bootstrap of the original data.
• Used no prior biological knowledge in the
  learning algorithm

31
Network with all edges
32
Network with edges that represent relations with
confidence level above 0.3
33
YNL058C Local Map

• Edges
• Markov
• Ancestors
• Descendants
• SGD entry
• YPD entry

34
Robustness analysis

• Use 250 gene data for robustness analysis
• Create random data set by permuting the order of
  experiments independently for each gene
• No real features are expected to be found

35
Robustness analysis (contd)

• Lower confidence for order and
• Markov relations in the random
• data set
• Longer and heavier tail in the
• high confidence region in the
• original data set

• Sparser networks learned from
• real data
• Features learned in original
• data with high confidence level are
• not an artifact of the bootstrap
• estimation

36
Robustness analysis (contd)

• Compared confidence level of learned features
  between 250 and 800 gene data set
• Strong linear correlation
• Compared confidence level of learned features
  between different discretization thresholds
• Definite linear tendency

37
Biological Analysis

• Order relations
• Dominant genes indicate potential causal sources
  of the cell cycle process
• Dominance score of X

• where is the confidence in X
  being ancestor of Y , k is used to reward high
  confidence features and t is a threshold to
  discard low confidence ones

38
Biological Analysis (contd)

• Dominant genes are key genes in basic cell
  functions

39
Biological Analysis (contd)
Markov relations

• Top Markov relations reveal functional relations
  between genes
• 1. Both genes known The relations make sense
  biologically
• 2. One unknown gene Firm homologies to proteins
  functionally
• related to the other gene
• 3. Two unknown genes Physically adjacent to the
  chromosome,
• presumably regulated by the same
  mechanism
• FAR1- ASH1, low correlation, different clusters,
  known though to participate in a mating type
  switch
• CLN2 is likely to be a parent to RNR3, SVS1, SRO4
  and RAD41. Appeared in same cluster. No links
  between the 4 genes. CLN2 is known to be a
  central cycle control and there is no clear
  biological relationship between the others

40
Discussion and Future Work

• Applied Sparse Candidate Algorithm and Bootstrap
  resampling to extract a Bayesian Network for the
  800 genes data set of Spellman
• Used no prior biological knowledge
• Derived biologically plausible conclusions
• Capability of discovering causal relationships,
  interactions between genes and rich structure
  between clusters.
• Developing hybrid algorithms with clustering
  algorithms to learn models over clustered genes
• Extensions
• Learn local probability models dealing with
  continuous data
• Improve theory and algorithms
• Include biological knowledge as prior knowledge
• Improve search heuristics
• Apply Dynamic Bayesian Networks to temporal data
• Discover causal patterns (using interventional
  data)
