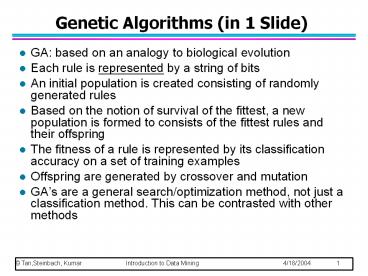

Genetic Algorithms (in 1 Slide)

1
Genetic Algorithms (in 1 Slide)

• GA based on an analogy to biological evolution
• Each rule is represented by a string of bits
• An initial population is created consisting of
  randomly generated rules
• Based on the notion of survival of the fittest, a
  new population is formed to consists of the
  fittest rules and their offspring
• The fitness of a rule is represented by its
  classification accuracy on a set of training
  examples
• Offspring are generated by crossover and mutation
• GAs are a general search/optimization method,
  not just a classification method. This can be
  contrasted with other methods

2
Ensemble Methods

• Construct a set of classifiers from the training
  data
• Predict class label of previously unseen records
  by aggregating predictions made by multiple
  classifiers
• In Olympic Ice-Skating you have multiple judges?
  Why?

3
General Idea
4
Why does it work?

• Suppose there are 25 base classifiers
• Each classifier has error rate, ? 0.35
• Assume classifiers are independent
• Probability that the ensemble classifier makes a
  wrong prediction
• Practice has shown that even when independence
  does not hold results are good

5
Methods for generating Multiple Classifiers

• Manipulate the training data
• Sample the data differently each time
• Examples Bagging and Boosting
• Manipulate the input features
• Sample the featurres differently each time
• Makes especially good sense if there is
  redundancy
• Example Random Forest
• Manipulate the learning algorithm
• Vary some parameter of the learning algorithm
• E.g., amount of pruning, ANN network topology,
  etc.
• Use different learning algorithms

6
Background

• Classifier performance can be impacted by
• Bias assumptions made to help with
  generalization
• "Simpler is better" is a bias
• Variance a learning method will give different
  results based on small changes (e.g., in training
  data).
• When I run experiments and use random sampling
  with repeated runs, I get different results each
  time.
• Noise measurements may have errors or the class
  may be inherently probabilistic

7
How Ensembles Help

• Ensemble methods can assist with the bias and
  variance
• Averaging the results over multiple runs will
  reduce the variance
• I observe this when I use 10 runs with random
  sampling and see that my learning curves are much
  smoother
• Ensemble methods especially helpful for unstable
  classifier algorithms
• Decision trees are unstable since small changes
  in the training data can greatly impact the
  structure of the learned decision tree
• If you combine different classifier methods into
  an ensemble, then you are using methods with
  different biases
• You are more likely to use a classifier with a
  bias that is a good match for the problem
• You may even be able to identify the best methods
  and weight them more

8
Examples of Ensemble Methods

• How to generate an ensemble of classifiers?
• Bagging
• Boosting
• These methods have been shown to be quite
  effective
• A technique ignored by the textbook is to combine
  classifiers built separately
• By simple voting
• By voting and factoring in the reliability of
  each classifier

9
Bagging

• Sampling with replacement
• Build classifier on each bootstrap sample
• Each sample has probability (1 1/n)n of being
  selected (about 63 for large n)
• Some values will be picked more than once
• Combine the resulting classifiers, such as by
  majority voting
• Greatly reduces the variance when compared to a
  single base classifier

10
Boosting

• An iterative procedure to adaptively change
  distribution of training data by focusing more on
  previously misclassified records
• Initially, all N records are assigned equal
  weights
• Unlike bagging, weights may change at the end of
  boosting round

11
Boosting

• Records that are wrongly classified will have
  their weights increased
• Records that are classified correctly will have
  their weights decreased

• Example 4 is hard to classify
• Its weight is increased, therefore it is more
  likely to be chosen again in subsequent rounds

12
Class Imbalance

• Class imbalance occurs when the classes in the
  distribution are very unevenly distributed
• Examples would include fraud prediction and
  identification of rare diseases
• If there is class imbalance, accuracy may be high
  even if the rare class is never predicted
• This could be okay, but only if both classes are
  equally important
• This is usually not the case. Typically the rare
  class is more important
• The cost of a false negative is usually much
  higher than the cost of a false positive
• The rare class is designated the positive class

13
Confusion Matrix

• The following abbreviations are standard
• FP false positive
• TP True Positive
• FN False Negative
• TN True Negative

Predicted Class Predicted Class
Actual Class - -
Actual Class - TP FN
Actual Class - FP TN
14
Classifier Evaluation Metrics

• Accuracy (TP TN)/(TP TN FN FP)
• Precision and Recall
• Recall TP/(TP FN)
• Recall measure the fraction of positive class
  examples that are correctly identified
• Precision TP/(TP FP)
• Precision is essentially the accuracy of the
  examples that are classified as positive
• We would like to maximize precision and recall
• They are usually competing goals
• These measure are appropriate for class imbalance
  since recall explicitly addresses the rare class

15
Classifier Evaluation Metrics Cont.

• One issue with precision and recall is that they
  are two numbers, not one
• That makes simple comparisons more difficulty and
  it is not clear how to determine the best
  classifier
• Solution combine the two
• F-measure combines precision and recall
• The F1 measure is defined as
• (2 x recall x precision)/(recall precision)

16
Cost-Sensitive Learning

• Cost-sensitive learning will factor in cost
  information
• For example, you may be given the relative cost
  of a FN vs. FP
• You may be given the costs or utilities
  associated with each quadrant in the confusion
  matrix
• Cost-sensitive learning can be implemented by
  sampling the data to reflect the costs
• If the cost of a FN is twice that of a FP, then
  you can increase the ratio of positive examples
  by a factor of 2 when constructing the training
  set

17
More on autonomous vehicles

• DARPA Grand Challenges. 1,000,000 prize.
• Motivation by 2015 1/3 of ground military forces
  autonomous.
• 2004 150 mile race through the Mojave desert. No
  one finished. CMUs car made it the farthest at
  7.3 miles
• 2005 Same race. 22 of 23 surpassed the best
  distance from 2004. Five vehicles completed the
  course. Stanford first, CMU second. Sebastian
  Thrun leader for Stanford team.
• 2005 Grand Challenge Video

18
More DARPA Grand Challenge

• 2007 Urban Challenge
• 60 mile urban area course to be completed in 6
  hours.
• Must obey all traffic laws and avoid other robot
  cars
• Urban Challenge Video

19
Google Autonomous Vehicle

• Google commercial video
• Second Google driverless car video
• Alternative future autonomous vehicles
• video
