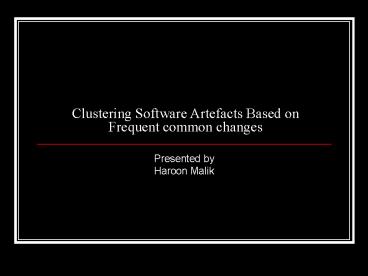

Clustering Software Artefacts Based on Frequent
common changes

• Presented by Haroon Malik

2
Abstract

• The clusters of artifacts that are frequently
  changed changed together are subsystem
  candidates.
• Two step method identification of clusters
• Extracting Co-Change graph from the version
  control repository.
• Computing a layout of the co-changed graph. This
  reveals the cluster of frequent co-change
  artifacts.

3
Proposed Model

• High level description can be recovered from
  source code and other low-level information
  through reverse engineering.
• Software clustering divided software artifacts
  into subsystems which are as independent as
  possible with respected to comprehension,
  change, reuse etc.
• Co-change graph model is proposed for clustering
  software system

4
Proposed Model (Cont)

• Co-change Graph
• Abstraction of version control repositories.
• Vertices of this graph are
• Software artifacts (Files or Functions)
• Change transactions ( Commits in terms of CVS).
• Edges connect the change transaction with their
  participating artifacts.

5
Proposed Model (Cont)

• Presentation
• The result of clustering is not a partition of
  the graph vertices, but a layout of graph
  vertices.
• This layout of the graph refers to position of
  the graph vertices in two or three dimensional
  space.
• Heavily co-changed artifacts closer together.
• Rarely co-changed artifacts at larger distances.
• Layout is comprehensive and provides additional
  information
• How clearly Clusters are Separated.
• If artifacts are at center of the cluster or
  rather between two clusters.

6
Proposed Model (Cont)

• Contents
• Not just arranged in some nice way, but their
  positions have a well-defined interpretation with
  respect to their common changes.
• Two artifacts are placed closer to the degree of
  that their common change is stronger then random.

7
Co-Change Graph.

• The graph refers to the common changes of
  artifacts in version repositories.
• It can be easily extracted from version
  repositories.
• Ensures, that the clustering results have a clear
  interpretation in terms of repositories.
• Biases though arbitrary choices i.e. weight
  function of values of free parameters are
  minimized.

8
Co-Change Graph (Cont)

• Software artifact
• Is an entity that belongs to a software system
• E.g. A package, a file, a line of code or even a
  piece of document
• Version
• State of a software artifact at a particular
  point in time.
• CVS system stores version of artifacts in a
  central repository.
• User of such systems modify local copies of the
  software artifacts, and check-in their changes to
  the central repository.

9
Co-Change Graph (Cont)

• Change Transaction
• It is a coherent sequence of cheek-ins of several
  software artifacts.
• Software artifacts that participate in the same
  change transaction are co-changed (commonly
  changed).
• The Co-change graph of a give version of
  repository is an undirected graph (V,E ).
• The set of vertices V of the co-change graph
  contains all the software artifacts and all
  change transaction of the version repository.

10
Co-Change Graph (Cont)

• The set of edges E contains the undirected edge
  c,a, if the artifact a was changed by
  transaction c.
• Bipartite
• It contains no edges that connect two change
  transaction of two software artifacts.

11
Co-Change Graph (Cont)

• For a vertex v of a co-changed graph, the number
  of its adjacent vertices is called the degree of
  v and denoted by deg(v)
• For transaction vertices te degree gives the
  number of artifacts that participate in the
  transaction.
• For artifacts, the degree gives the number of
  their changes.

12
Weight Co-change Graph

• It involves assigning a real number to each edge
  by weigh function (w) to set of Edges (E)
• The real number assigned to each edge interprets
  the importance of the corresponding change.
• Each edge is give same weight.

13
Condensed Co-Change Graph

• It is a weighted, undirected graph (V,E,w), for a
  given repository.
• Where, the set of vertices V contains all
  software artifacts in repository.
• Set of Edges E contains the edge a,a, if the
  artifact a and a were commonly changed by a
  transaction.

14
Edge-Repulsion Linlog Energy Model

• This model specify the good graph layout.
• The basic idea is that in co-change graph edges
  causes both repulsion and attraction.
• Every edge will cause same amount of repulsion
  and attraction.
• Model helps in creating suitable readable layouts

15
Evaluation

• The Software system were chosen based on
• Size, number of developers, project duration and
  artifacts in different programming languages
• Based of familiarity.

16
Evaluation

• The co-change graph were extracted on file level
• A tool cvs2cl2 is used to recover change
  transaction from CVS repository
• A calculator for relation generated the co-change
  graph from transaction ---- CrocoPat
• Duration, total changes indeed all number were
  obtained with tool Stat CVS
• Layout was computed using utomatically usig Edge
  repulsion linlog energy model

17
Artifacts in the CrocoPat repository
18
Artifacts in the Rabbit repository
19
Artifacts in the Blast repository
20
Conclusions

• Introduced a new method for clustering software
  artifacts.
• Defined the co-change graph as underlying formal
  model
• Evaluated our method on three example software
  systems with different types of documents and
  source code in several programming languages
