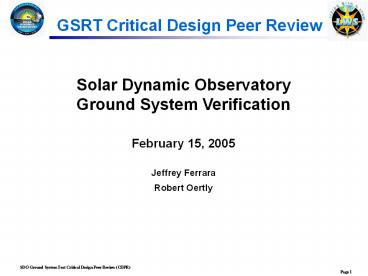

1GSRT Critical Design Peer Review
Solar Dynamic Observatory Ground System
Verification February 15, 2005 Jeffrey
Ferrara Robert Oertly
2Peer Review Agenda
- Peer Review Board
- Mission Overview
- SDO Ground System Elements Architecture
- Summary of PDR RFAs
- Ground System Readiness Testing
- - Objectives Responsibilities
- - Verification Approach
- - Test Phases
- - Test Planning
- - Test Team Responsibilities
- - Test Requirements Verification
Matrix - - Test Resources
- - Test Activities and Configurations
- - Discrepancy Reporting
- Schedule Status
- Issues and Concerns
3Peer Review Board
- Bruce Thoman (Chair) Code 592
-
- Ken Lehtonen Code 584
- Debra Knapp Code 440.8
-
- Paul Garza Code 451
-
- Vic Gher General Dynamics
- Vic Buczkowski Honeywell
4Mission Overview Living with a Star
In order to meet the needs of the Living With a
Star program and determine the drivers and
diagnostics of solar activity and variability
which affect Earth and humanity, the Solar
Dynamics Observatory must
- Provide nearly continuous coverage of solar
activity - Provide coverage of the regimes (interior,
photosphere, corona) in which the activity occurs - Provide sufficient data on the types of phenomena
which impact Earth, near-Earth space and humanity - Observe over the relevant timescales (seconds to
years) of solar variability
5SDO Mission Summary
SDO Solar Dynamics Observatory Objectiv
e SDO spacecraft intended to carry a suite of
solar observation instruments to monitor and
downlink continuous, real time science data from
the sun and distribute to Instrument analysis
sites Launch Date April 2008 Mission Duration 5
years, 10 years of expendables Minimum Success
5 years Orbit 36,000km Circular,
28.5º Geo Synch
Inclined Launch Vehicle Atlas V Launch
Site KSC GS Sites SDO Dedicated
(SDOGS) Supporting Sites USN, SN
Instrument Module
AIA
EVE
Propulsion Module
HMI
Spacecraft Bus Module
X
Antenna Booms
Orbit Injection Engine
Y
Z
6Mission Overview as related to Ground System
- Ka Band - Continuous downlink of 150 Mbps of
science data - Science Data capture requirement 99.99 of data
95 of the time - Two Dedicated antennas at White Sands
- Auxiliary ground station support for LEO and
tracking data - Three instrument groups controlled from Science
Operations Centers (SOCs) - Full Sun observations except for periodic
calibration maneuvers - SOCs are responsible for science data processing,
archive, and distribution - MOC is responsible for Housekeeping telemetry
processing, archive, and distribution
7Reference Documents
- SDO Detailed Mission Requirements (DMR) 464- GS-
REQ- 0005 - SDO Operations Concept Document
464- GS- PLAN- 0010 - SDO GS Element-to-Element ICDs
(MOC/SOC) 464- GS- icd- 0001 - (DDS/SOC) 464- GS- icd- 0010 (SDOS/MOC)
464- GS- icd- 0064 (MOC/USN) 464- GS- icd-
0065 (FDS/MOC) 464- GS- icd- 0068 - SDO GS Element Requirements Documents
- SDO Element Acceptance Test Plans
- RF Compatibility Test Plan (SDOGS and TDRS)
464- GS- PLAN- 0072 - External Networks RF Compatibility Test Plan
464- GS- PLAN- 0073 - SDO Observatory IT Plan
464- IT- PLAN- 0030 - Handbook for Mission Readiness Testing
NP- 2002- 264- GSFC
8SDO Ground System Elements
COMM - Communication Networks DDS - Data
Distribution System FDF - Flight Dynamics
Facility FSML - Flight Software Maintenance
Lab (and Flatsat Simulator) KSC - Kennedy
Space Center, Florida MMOC - Minimal Mission
Operations Center (Mini-MOC) MOC-ANS -
Automated Notification System MOC-FDS -
Flight Dynamics System MOC-ITPS - Integrated
Trending Plotting System MOC-MPS - Mission
Planning System MOC-TC - Advanced System for
Integration Spacecraft Testing (ASIST)
Â
Â
9SDO Ground System Elements (cont.)
PFDS - Portable FDS SDOGS - SDO Ground
Station (2 antennas located at WSC) AIA-SOC -
Atmospheric Imaging Assembly Science Operations
Center EVE-SOC - Extreme-ultraviolet Variability
Experiment Science Operations Center HMI-SOC -
Helioseismic Magnetic Imager Science Operations
Center SN - Space Network (TDRS) USN -
Universal Space Network
Â
Â
10SDO Ground System Architecture
11RFA Summary from GSRT PDR
- RFA 08
- Author Robert Schweiss, John Donohue, Glen
Iona - Summary We were asked to show how we would
assure the performance of the DDS and the ability
of the Ground System to meet science data
requirement - Resolution We provided more detailed information
about the performance and testing of the DDS and
the rest of the critical science data path,
including an analysis of the Ground System
availability and reliability. - Status Closed.
- RFA 19
- Author Steven Bundick
- Summary Long-term testing of the Ka-band
tracking capabilities was recommended. - Resolution Long-term testing of the Ka-band
tracking capabilities will be incorporated into
the GSRT Plan - Status Closed.
12GSRT Objectives Responsibilities
- Develop the Ground System Readiness Test Plan
- Establish an integrated test effort from
acceptance testing through to operational
readiness - Verify that the Ground System can support all
mission requirements in an integrated, end-to-end
configuration. - Provide an independent, documented record of
Ground System performance, test discrepancies,
and corrective actions. - Establish and lead the Ground System Readiness
Test Team in meeting these objectives. -
13GSRT Verification Approach
Ground system readiness is determined through a
series of System, Acceptance, Integration tests,
and Mission Simulations. This Verification Chart
shows the test phases, purposes and responsible
test party.
Ground System Verification
Phase 5 Operational Tests and
Simulations MOM FOT, SOT, SDOGS Team OPS
Scenarios, Simulations Operational
Readiness PR/PFR
Phase 1 Element/subsystem Development
Tests Implementation Manager Element
Developers Unit, System Internal
development Verification of Level
4 Requirements Internal developer
Test Phase Test Responsibility Test
Conductors Test Types Purpose Problem
Tracking
Phase 2 Element Acceptance Tests
MOM FOT, SOT, SDOGS Team Acceptance
Testing Development Verification of L3/4 in OPS
environment CDS for NASA Ground System
Phase 3 Ground System Readiness Testing GSRTM
GSRTT Ground System Readiness
Testing (Including SOC Integration) Integrated
Functional L3 Verification CDS
Phase 4 Spacecraft Testing with the Ground
System MOM FOT, SOT E-T-E Type
Tests Functional Verification with S/C
opportunities PR/PFR
The Ground System Readiness Test Manager (GSRTM)
has overall management responsibility for all
phases of the SDO Ground System Testing.
14Test Phases
- Element Level Testing, Phases 1 and 2
- Software, hardware provider System Testing to
verify level-4 requirements development - Element Acceptance Testing to verify internally
the operational systems level-3/4 functionality - Spacecraft development and test using some MOC
and DDS sub-systems - Ground System Readiness Tests (GSRT), Phase 3
- Building block integration tests verifying the
ground system level-3 requirements - Demonstrate element-to-element interfaces and
functional compatibilities - Verify ground system end-to-end compatibility
with the observatory and SOCs - Verify the ground system functional capabilities
and status prior to FOT tests with the spacecraft - RF Compatibility Tests, Phase 3
- Verify Spacecraft RF compatibility with ground
station equipment by testing at GSFC - Verify the Spacecraft RF compatibility with the
SDOGS and USN ground system antennas and other
systems by testing onsite.
15Test Phases (cont.)
- Spacecraft Ground System Tests, Phase 4
- Validate ground system functions and interfaces
with spacecraft realtime data and responses - Provides Operations preparation for spacecraft
launch and flight control - Conducted with Spacecraft under IT Team control
and ground system under FOT control - Mission Operations Simulations, Phase 5
- Verify procedures and personnel operations in
long term duration operational environments - Demonstrates launch readiness using actual flight
plans, procedures, and personnel - Develops an operational team consisting of
Project, Spacecraft, SOC, Ground, and FOT
personnel
16Test Planning
- The Ground System Readiness Test Plan (GSRT)
describes the verification process. The GSRT
Plan specifies - Test Methodology and Management to carry out
ground system verification and readiness for
spacecraft test opportunities. - Verification of level-3 requirements
- Test configurations, and processes for
discrepancy tracking, resolution and retest. - Test readiness dates, dependencies and
objectives. - Test requirements, test cases, resources and the
process for test procedure development - Requirements traceability and verification
tracking - Test Resources and responsibilities
- Ground System Test team personnel roles and test
responsibilities,
17Test Team Responsibilities
- The ground system verification process is planned
and carried out through the Ground System
Readiness Test Team (GSRTT) under direction of
the Ground System Readiness Manager (GSRM). - The GSRTT is comprised of ground system element
personnel, quality assurance representatives, FOT
and SOC personnel and simulator, test beds and
test tool representatives - The GSRTT members will be responsible for
developing the detailed plans and scripts for the
ground system tests and simulations, and for
analyzing and documenting results. - A test script, briefing message or other
coordinating email will be distributed to ensure
that all test participants have the information
needed to conduct the test - The GSRTT will meet to plan tests, distribute
test notification messages discuss the test
results, and provide a test report, The report
will be distributed to document the test results,
track the verification completion and identify
retesting - GSRTT will interface with the spacecraft IT and
launch team to support spacecraft testing.
18Test Requirements Verification Matrix (TRVM)
19Test Resources
- Compatibility Testing Resources
- Compatibility Test personnel will complete
Compatibility Test Plans for SN, SDOGS and the
USN. - Compatibility Test Van (CTV) and external network
compatibility equipment will be used for tests
with the Spacecraft at Goddard and with the
ground stations - CTV equipment will be augmented with ground
station spares and purchases - Simulators
- FLATSAT simulator is used by the FOT for MOC and
FOT testing - Portable Spacecraft Simulator (PSS) used for T
C tests at GSFC, the stations and KSC - Observatory
- IT area resources (spacecraft, labs and
instrument GSE) beginning 2005. - Spacecraft GSRT test opportunities beginning
mid-2006. - Test data
- Instrument data will be gathered during IT
instrument tests - Spacecraft and Observatory data will be captured
during Spacecraft IT - Special WSC Test Resources
- S-Band Fly-over tests
- COL Tower capabilities for antenna test and
calibration - Aircraft flights to test KA-band antenna and
dynamics - Transponders
- Ka and S-band will be available
20Compatibility Testing
- The USN will bring generic station equipment to
perform compatibility testing with the SDO
spacecraft at GSFC - S-band command and telemetry compatibility will
be verified - S-band data will be captured for further testing
at the USN sites - The GSFC Compatibility Test group will conduct
S-band and Ka-band testing at GSFC for the SN and
SDOGS - Data and commands will be routed through the CTV
and Bldg. 25 facilities - The Compatibility Test group will also assist in
station compat testing at the newly constructed
SDOGS site at WSC
21Portable Spacecraft Simulator
PSS Purpose
- While PSS is located at GSFC Bldg. 25
- Provide data and command interface for MOC
Acceptance Testing - To initially test MOC to Station interface
configurations - To exercise MOC equipment and personnel
- At the SDOGS Location
- Provide a telemetry and command processing source
for end-to-end station testing - Provide simulated 64 kbps S-Band and 150 Mbps
Ka-Band data flows - Use the PSS data and MOC commands through the
antenna test injection port to create a full
end-to-end RF test configuration - Use the 150 Mbps Ka-Band data for DDS testing
with and without injected controlled data errors - At the USN Sites
- To verify the critical USN launch support sites
- To provide a telemetry and command processing
source for end-to end station testing - To be used with a spacecraft transponder for end
to end RF testing
22Portable Spacecraft Simulator
PSS Test Locations and Configurations
PSS Test Locations and Configurations
R/T /PB 1-64kbps SDOGS data, CMD response
R/T /PB 1-64kbps SDOGS data, CMD response
SDOGS At WSC
SDOGS At WSC
R/T 150Mbps science data
R/T 150Mbps science data
2 kbps SDOGS commands
2 kbps SDOGS commands
MOC At GSFC
GSFC Bldg. 25 Local GSFC Application
MOC At GSFC
GSFC Bldg. 25 Local GSFC Application
R/T /PB 1-240 kbps data, CMD response All station
formats
R/T /PB 1-240 kbps data, CMD response All station
formats
2 kbps command data For all stations
2 kbps command data For all stations
USN SITES
USN SITES
R/T /PB 1-240kbps USN data
R/T /PB 1-240kbps USN data
2 kbps USN commands
2 kbps USN commands
23Portable Spacecraft Simulator
PSS Capabilities
- PSS uses the project database to configure PSS
for TLM and CMD - Supports TCP/IP, UDP/IP and multicast protocols
- Supports RS422/TTL Serial data transfer
- Conforms to NPG 2810.1 security
- Operates in Restricted and Closed IONet
environments - Supports event logging
- Supports 3 CADU Telemetry data streams of VCIDs
- Supports CRC, Reed Solomon, Randomization and
convolution encoding - Provides 1-240 kbps data (VC0 HS VC1, VC3,
VC4, VC5 recorded HS
VC11, VC13,VC14,VC15 retransmit of VC 1,3,4 5
VC63 Fill frames) - Provides 1-150 Mbps data (EVE 7Mbps
VC3,6,19,22,35,38 HMI 55 Mbps
VC2,5,18,21,34,37 AIA67Mbps
VC1,4,17,20,33,36 - Supports file playback
- Can be used with the antenna test inject system
to provide RF data - Receives 2kbps Commands
- Processes SDOGS, USN commands directly or
forwards the commands through the RF system - Supports COP-1 processing
- Logs command data
- Command recognition per the PDB
24GSRT Test Activities
GSRT 1 Telemetry and Command Test GSRT 2
Science Data Test GSRT 3A RF
Communications and Operations Test TDRS Station
S-Band GSRT 3B RF Communications and
Operations Test SDOGS S-Band GSRT 3C RF
Communications and Operations Test USN Stations
S-Band GSRT 3D RF Communications and
Operations Test SDOGS Ka-Band GSRT 3E RF
Communications and Operations Test SDOGS, TDRS
Ka-Band GSRT 4 Fully Integrated Ground
System E-T-E Test GSRT 5 Launch Site
Readiness Test
25GSRT Test Architecture
WSC
TLM /CMD/TRK
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
CMD Data
AIA SOC LSMC
H/K And CMD
Science
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
SOC GSE
MOC GSE
KSC Launch Site
26GSRT Test Information Sheet 1
GSRT 1 Telemetry and Command Test
27GSRT Test Information Sheet 1 cont.
28GSRT Cumulative Status 1
WSC
TLM /CMD/TRK
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
AIA SOC LSMC
H/K And CMD
Science
GSRT Tests
1
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
SOC GSE
MOC GSE
KSC Launch Site
29GSRT Test Information Sheet 2
GSRT 2 Science Data Test
30GSRT Test Information Sheet 2 cont.
31GSRT Cumulative Status 2
WSC
TLM /CMD/TRK
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
GSRT Tests
AIA SOC LSMC
H/K And CMD
1
Science
2
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
SOC GSE
MOC GSE
KSC Launch Site
32GSRT Test Information Sheet 3A
33GSRT Test Information Sheet 3A cont.
34GSRT Cumulative Status 3a
TLM /CMD/TRK
WSC
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
GSRT Tests
AIA SOC LSMC
H/K And CMD
1
Science
2
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
3
SOC GSE
MOC GSE
KSC Launch Site
35GSRT Test Information Sheet 3B
GSRT 3B RF Communications and Operations
Test SDOGS S-Band RF Segment
36GSRT Test Information Sheet 3B cont.
37GSRT Cumulative Status 3b
TLM /CMD/TRK
WSC
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
GSRT Tests
AIA SOC LSMC
H/K And CMD
1
Science
2
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
3
SOC GSE
MOC GSE
KSC Launch Site
38GSRT Test Information Sheet 3C
GSRT 3C RF Communications and Station Operations
Test USN Stations S-Band RF Segment Tests
39GSRT Test Information Sheet 3C cont.
40GSRT Testing Status
TLM /CMD/TRK
WSC
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
GSRT Tests
AIA SOC LSMC
H/K And CMD
1
Science
2
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
3
SOC GSE
MOC GSE
KSC Launch Site
41GSRT Test Information Sheet 3D
GSRT 3D RF Communications and Station Operations
Test SDOGS Ka-Band RF Segment Test
42GSRT Test Information Sheet 3D cont.
43GSRT Testing Status
TLM /CMD/TRK
WSC
SDOGS Antenna Sites at WSC
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
H/K, TRK Data
S-Band Hardline
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
Status, CMDS and Requests from SOCs
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
CMD Data
CMD Data
HK and CMD Data
Housekeeping Data to SOCs
GSRT Tests
AIA SOC LSMC
H/K And CMD
1
Science
2
HMI SOC LSMC
HMI SOC H/K Data FDS Planning Information
HK CMD
3
SOC GSE
MOC GSE
KSC Launch Site
44GSRT Test Information Sheet 3E
GSRT 3E RF Communications and Station Operations
Test RFSOC, TDRS, SDOGS Ka-Band Segment
45GSRT Test Information Sheet 3E cont.
46GSRT Test Information Sheet 4
GSRT 4 Fully Integrated Ground System E-T-E Test
47GSRT Test Information Sheet 4 cont.
48GSRT Testing Status
WSC
SDOGS Antenna Sites at WSC
TLM /CMD/TRK
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
H/K, TRK Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
S-Band
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
Status, CMDS and Requests from SOCs
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
HS Data to SOCs
HK and CMD Data
CMD Data
CMD Data
AIA SOC LSMC
H/K And CMD
Science
GSRT Tests
1
HMI SOC LSMC
HK CMD
2
MOC GSE
HMI SOC H/K Data FDS Planning Information
SOC GSE
3
KSC Launch Site
4
49GSRT Test Information Sheet 5
GSRT 5 Launch Site Readiness Test
50GSRT Test Information Sheet 5 cont.
51Completed GSRT Testing
WSC
SDOGS Antenna Sites at WSC
TLM /CMD/TRK
R/T RF S-Band TLM CMD
TDRS
SITE 2
USN Sites
WSC Col Tower
SN H/K, TRK CMD Data
H/K, TRK Data
SITE 1
CMD, Ephemeris, and Planning
To ANT 1 And ANT 2
All KA Science Data
H/K TRK Data
S-Band
CMD Ephemeris Data
DDS Site 1
DSIM Status and Control
DSIM
GSFC Spacecraft IT Facility
GSFC Mission Operations Center (MOC)
MOC/SOC IT Support
Status, CMDS and Requests from SOCs
EVE SOC H/K Data FDS Planning Information
H/K CMD Data
CMD Data
EVE SOC LASP
AIA SOC H/K Data FDS Planning Information
HS Data to SOCs
HK and CMD Data
CMD Data
CMD Data
AIA SOC LSMC
H/K And CMD
Science
GSRT Tests
1
HMI SOC LSMC
HK CMD
2
MOC GSE
HMI SOC H/K Data FDS Planning Information
SOC GSE
3
KSC Launch Site
4
5
52Test Discrepancy Reporting
- A Test Discrepancy Report (TDR) is generated when
the ground system fails to meet a functional test
requirement. - Each TDR is assigned to an actionee element(s)
for investigation and resolution - Each TDR is entered into the Comprehensive
Discrepancy System(CDS) which automatically
notifies the relevant parties - Test discrepancies are prioritized (Critical,
Urgent, Routine), tracked, reported, resolved and
retested - The ground system TDR status relating
requirements to discrepancies is presented
monthly and at all reviews
53Requirements/TDR Summary
SUMMARY AS OF 02/15/05 (T) Total Requirements
000 (X) Verified 000 (N)
Not Verified 000 (D) Deleted
000 () Percent Completed
000
54GSRT Schedule
CY 2003
CY 2004
CY 2005
CY 2006
CY 2007
CY 2008
Subsystem Element
Q4
6/04
1/08
1/07
3/04
4/03
MISSION MILESTONES
4/05
4/08
9/03
1/06
CR
CDR
S/C IT Start
ICR
SRR/ SCR
PDR
PER
PSR
LAUNCH
Ground System Reviews
4/04
5/05
9/03
1/08
1/07
01/06
MOR
FORR
CDR
SRR
PDR
TRR
Ground System Testing
R1
R2
R3
Cleanup
Mission Operations Center
12/05
12/06
06/06
10/07
R1
R2
Flight Dynamics System
6/06
03/07 ANT Cert
01/07
OPS R1
OPS R2
DDS Ready
OPS R3
BB
Data Distribution System
01/06
01/07
10/06
06/04
07/05
AT
ANT Cert
IT
SDO Ground System Antennas
01/07
08/06
03/07
Science Operations Centers
SOCs
SOCs
Science
TLM/CMD
02/07
08/06
01/08
TRR
Draft GSRT Plan
Final GSRT Plan
I/F
Ground System Readiness Tests
G/S Freeze
GSRT
TLM
L/S
ETE
CTV
SCI
T/C
RF
Regression Testing
FOT Simulations
04/08
04/07
Spacecraft/Observatory And Ground Test
Opportunities
Launch 04/08
55CURRENT STATUS
- GSRT Plan draft in review
- Working with Test Resource Groups
- GSRT Portable Spacecraft Simulator (PSS)
- Compatibility Test
- Aircraft Test (antenna testing)
- Transponders ETUs
- WSC Collimation Tower
- Waiting for CDR results to update and enhance
test documentation
56Issues and Concerns
- No concerns
- Issues being worked
- Is planned end-to-end testing sufficient?
- Are all planned RF link tests necessary?
57Abbreviations and Acronyms
58Abbreviations and Acronyms cont.
59Abbreviations and Acronyms cont.
60GSRT CDPR
61TDR Process Flow (backup)
Test Discrepancy Report (TDR) Responsibilities
62IDR Process Flow (backup)
Internal Discrepancy Report (IDR) Responsibilities
63 E-T-E S-Band and Ka-Band Eavesdrop Test
Configuration
