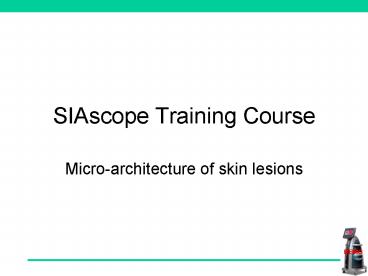

SIAscope Training Course

1
SIAscope Training Course

• Micro-architecture of skin lesions

2
SIAscope training course aims

• After this course you will be able to discuss
• Common skin lesions, and their histology
• Methods of melanoma diagnosis and their relative
  merits

3
Programme

• Structure of the skin
• Common lesions
• Premalignant lesions
• Melanoma

4
Boundaries

• Basic structure applicable to SIAgraphs
• Melanoma
• Conditions that can be mistaken for melanoma

5
Motivation

• 18 of melanomas are misdiagnosed in first
  clinical episode BJD 1999
• Difficulties of diagnosis
• Skin is a complex organ
• Many components
• Components may have strong visual resemblance to
  each other
• Different conditions can look the same

6
Structure of the skin

• Epidermis
• Dermis

7
Epidermis
Dermal papillae
Rete ridges
Dermis
8
1.2 Histology of the skin

• Epidermis 5 layers
• Stratum corneum
• Stratum granulosum
• Dermis
• Papillary
• Reticular

9
Epidermis

• Stratum Corneum (Hornlike Layer)
• 20-30 layers of dead, anucleated cells
• outer cells are constantly shed
• Stratum Lucidum (Clear Layer)
• only seen in thick skin
• 2-3 layers of dead, anucleate cells
• Stratum Granulosum (Granular Layer)
• 3-5 layers of granular, flattened cells
• Stratum Spinosum (Spiny Layer, Prickly Layer)
• several layers of polygonal-shaped cells
• Stratum Basale (Basal Layer)
• single layer of columnar/cuboidal cells resting
  on basement membrane

10
Dermis Beyond

• Dermis
• Separates into papillary and reticular dermis
• Dense irregular connective tissue Collagen
• Contains nerve endings, hair follicles, glands,
  capillaries
• Dermal papillae (projections of dermal tissue
  into the epidermis) interlock with rete ridges
• Hypodermis or Superficial Fascia
• Subcutaneous tissue underneath dermis
• Stores fat and helps anchor skin

11
Common lesions

• May appear similar to melanoma
• But benign
• Appearance and history important
• Junctional, Compound, Intradermal naevi
• Blue, Spindle-cell naevi
• Seborrheic Keratosis
• Pyogenic Granuloma
• Haemangioma

12
Histology of skin naevi

• Normal skin

13
Histology of skin lesions

• Freckles
• Seen on many people
• Junctional naevus
• Common mole

14
Compound naevus

• Acquired between 6 months and 35 years
• May be raised
• Brown

15
Compound naevus histology
Nests of melanocytes at rete tips
Nests of melanocytes in dermis producing less
melanin
16
Compound naevus
17
Blue Naevus

• Usually begin early in life
• May appear similar to nodular melanoma
• Rounded nest of melanocytes in the dermis
• Blue.

18
Blue Naevus histology
19
Blue Naevus
20
Spitz / Spindle Cell Naevus

• Occurs mainly in children
• Smooth, round, slightly scaling pink nodule
• Very difficult to diagnose
• Resemble melanoma even in histology.

21
Spitz / Spindle Cell Naevus
22
Seborrhoeic Keratosis

• Acquired in middle and later life
• Slow-growing
• Scaling / stuck-on appearance

23
Seborrhoeic Keratosis - Histology
24
Seborrhoeic Keratosis
25
Pyogenic Granuloma

• Proliferation of blood vessels

26
Pyogenic granuloma
27
Haemangioma

• Several kinds
• Cherry angioma can be mistaken for melanoma
• 2 to 5mm
• Red to purple in colour
• Usually on the trunk, can be multiple

28
Haemangioma Histology

• Lacunes of blood

29
Cherry Angioma
30
Premalignant

• Lentigo maligna
• Dysplastic naevus

31
Dysplastic Naevus warning!

• With or without dermal nests
• Capillary proliferation
• Increase in Collagen in dermis

32
Dysplastic Naevus warning!
33
Lentigo Maligna

• Precursor to lentigo maligna melanoma
• Large, cosmetically sensitive areas
• Excision undesirable in frail/elderly patients
  unless lesion changes to lentigo maligna melanoma

34
Lentigo Maligna

• Punch biopsies sometimes used to confirm
  diagnosis
• Disfiguring, inaccurate
• Dermal melanin SIAgraph indicates change to
  lentigo maligna melanoma

35
Lentigo Maligna
36
Histology of skin lesions

• Melanoma stages
• Radial Growth Phase (RGP)
• Vertical Growth Phase (VGP)

37
Histology of Melanoma
38
Melanoma

• Superficial spreading melanoma (SSM)
• Nodular malignant melanoma (NMM)
• Amelanotic melanoma

39
Superficial Spreading Melanoma

• Radial Growth Phase
• Microinvasion

40
SSM - Histology
41
Superficial Spreading melanoma
42
NMM

• VGP
• Larger areas of dermal melanin

43
1.2 Histology of skin lesions
44
Nodular melanoma
45
Amelanotic Melanoma

• Less melanin
• Very rare
• SIAscope can diagnose in theory
• No amelanotic melanomas in studies as yet

46
Amelanotic melanoma
47
Melanoma treatment

• Excision to fascia
• Margin based on thickness of tumour
• Up to 3cm for thick lesions
• Sentinel node biopsy(?)
• Chemotherapy, Radiation, Immunotherapy
  (interferon), Medical trials.

48
Melanoma Prognosis

• Breslow thickness
• Stratum granulosum to bottom of tumour in mm
• Clarks level
• 1 in situ (epidermis)
• 2 upper papillary dermis
• 3 full thickness of papillary dermis
• 4 reticular dermis
• 5 subcutaneous fat
• Several others

49

• Breslow thickness

50
End of presentation

• Many different conditions may appear clinically
  similar to melanoma
• Diagnosis is difficult
• More in the next presentation
