Figure%209-1

1
Heaps

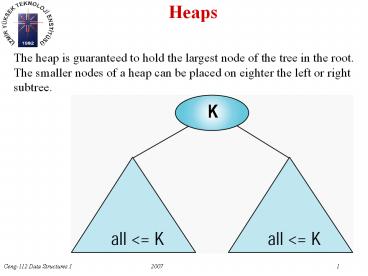

The heap is guaranteed to hold the largest node
of the tree in the root. The smaller nodes of a
heap can be placed on eighter the left or
right subtree.
Figure 9-1
2
Heaps

• A heap is a binary tree structure with the
  following rules
• The tree is complete or nearly complete.
• The key value of each node is greater than or
  equal to the key value of each of its
  descendents.
• They are often implemented in an array rather
  than a linked list. We are able to calculate the
  location of the right and left subtrees.

3
Heaps
Figure 9-2
4
Heaps
Figure 9-3
5
Figure 9-8
6
Heap Data Structure

• A heap can be built in a dynamic tree structure.
  It is most often implemented in an array. This
  implementation is possible, because the heap is
  complete or nearly complete. Therefore the
  relationship between a node and its children is
  fixed and can be calculated as shown below

7
Heap Data Structure

• For a node located at index i,
• its children are found at
• Left child 2i 1
• Right child 2i 2
• its parent is located at (i 1)/2
• Given the index for a left child j
• its right sibling (j 1)
• Given the index for a right child k
• its left sibling (k 1)
• Given the size n of a complete heap, the location
  of the first leaf is n/2.

8
Basic Heap Algorithms

• There are two basic maintenance operations that
  are performed on a heap
• Insert a node and,
• Delete a node.
• To implement the insert and delete operations, we
  need two basic algorithms
• reheap up
• reheap down

9
Heap Algorithms - ReheapUp
Figure 9-4
10
Figure 9-5
11
Heap Algorithms - ReheapUp

• algorithm reheapUp (ref heap ltarraygt, val
  newnode ltindexgt)
• Reestablishes heap by moving data in child up to
  its correct location in the heap array.
• PRE heap is array containing an invalid heap.
• newNode is index location to new data in
  heap.
• POST newNode has been inserted into heap.
• 1 if (newNode not zero)
• 1 parent (newNode 1) / 2
• 2 if (heapnewNode.key gt heapparent.key)
• 1 swap(newNode, parent)
• 2 reheapup(heap, parent)
• 2 return
• end reheapUp

12
Heap Algorithms - ReheapDown
Figure 9-6
13
(No Transcript)
14
Heap Algorithms - ReheapDown

• algorithm reheapDown (ref heap ltarraygt, val root
  ltindexgt, val last ltindexgt)
• Reestablishes heap by moving data in root down to
  its correct location in the heap array.
• PRE heap is an array data.
• root is root of heap or subheap.
• last is an index to the last element in heap.
• POST heap has been restored.

15
Heap Algorithms - ReheapDown

• algorithm reheapDown (ref heap ltarraygt, val root
  ltindexgt,
• val last ltindexgt)
• Determine which child has larger key.
• 1 if (root 2 1 lt last)
• There is at least one child.
• 1 leftKey heaproot 2 1.data.key
• 2 rightkey heaproot 2 2.data.key
• 3 if (leftKey gt rightKey)
• 1 largeChildKey leftKey
• 2 largeChildIndex root 2 1
• 4 else
• 1 largeChildKey rightKey
• 2 largeChildIndex root 2 2
• Test if root gt larger subtree.
• 5 if (heaproot.data.key lt heaplargeChildIndex
  .data.key)
• 1 swap(root, largeChildIndex)
• 2 reheapDown(heap, largeChildIndex, last)
• end reheapdown

16
Heap Algorithms - Build Heap
wall
The build heap algorithm is very simple. Given
the array we need to convert to a heap, we walk
through the array, starting at the second
element, calling reheap up for each array element
to be inserted into the heap. algorithm
buildHeap(ref heap ltarraygt, val size
ltintegergt) 1 walker 1 2 loop (walker lt size)
1 reheapUp(heap, walker) 2 walker
walker 1 3 return end buildHeap
17
Heap Algorithms - Insert Heap

• To insert a node we need to locate the
• first empty leaf in the array.
• We move the new data to the first empty
• leaf and reheap up.
• algorithm insertHeap(ref heap ltarray of
  dataTypegt,
• ref last ltindexgt,
• ref data ltdataTypegt)
• 1 if (heap full)
• 1 return false
• 2 lastlast 1
• 3 heaplast data
• 4 reheapUp (heap, last)
• 5 return true
• end insertHeap

Figure 9-10
18
Heap Algorithms - Delete Heap
algorithm deleteHeap(ref heap ltarray of
dataTypegt, ref last ltindexgt, ref
dataOut ltdataTypegt) Deletes root of heap and
passes data back to caller. Root has been deleted
from heap and root data placed in
dataOut. 1 if (heap empty) 1 return false 2
dataOut heap0 3 heap0 heaplast 4 last
last - 1 5 reheapDown (heap, 0, last) 6 return
true end deleteHeap
Figure 9-11
19
Heap Applications

• Common applications of Heaps are
• Selection algorithms,
• Priority queues,
• Sorting.

20
Heap Applications Selection Algorithms

• To determine the kth element in an unsorted list,
  there are two solution
• First sort the list and select the element at
  location k, or
• Create a heap and delete k-1 elements from it.

21
Heap Applications Selection Algorithms
Example If we want to know the fourth largest
element of the list
Figure 9-12
22
Heap Applications Priority Queues

• The heap is an excellent structure to use for a
  priority queue.
• One common technique uses an encoded priority
  number that consists of the priority plus a
  sequential number represents the events place
  within the queue. The serial number must be in
  descending order.

23
Heap Applications Priority Queues
Figure 9-13
24
Exercise
Which of the structures is a heap and which is
not?
Figure 9-15
25
Exercise
Apply the reheapUp algorithm to this nonheap
structure
Figure 9-16
26
Exercise
Apply the reheapDown algorithm to this nonheap
structure
Figure 9-17
27
Exercise

1. Show the array implementation.
2. Apply the delete operation. Repair the heap after
   the deletion.
3. Insert 38 in the heap. Repair the heap after the
   insertion.

Figure 9-18
28
Exercise

1. Show the left and right children of 32 and 27 in
   the heap.
2. Show the left children of 14 and 40.
3. Show the parent of 11, parent of 20 and parent of
   25.

Figure 9-19
29
Exercise

• Which of the following sequences are heaps?
• 42 35 37 20 14 18 7 10
• 42 35 18 20 14 30 10
• 20 20 20 20 20 20

30
HW-10

1. Use array structure and create a Heap tree with
   positive integer numbers which are taken from the
   screen.
2. Array should include 14 data entry.
3. Collect firts 8 entries from the user in this
   array as unordered.
4. Use buildheap algorithm and establish the heap
   tree structure on this array
5. Collect the other entries from user with add new
   node option and use insertheap algortihm to
   placed the node in correct position.
6. Write the Heep delete function which establishes
   to delete root entry from the Heap.
7. Write a function which lists the entries of the
   Heap in array structure.
8. Collect all above functions under a user menu.

Load your HW-10 to FTP site until 21 May. 07 at
0900 am.
