Martin Unverdorben

1

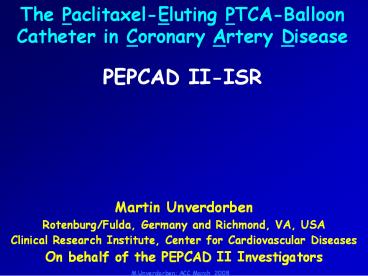

The Paclitaxel-Eluting PTCA-Balloon Catheter in
Coronary Artery Disease PEPCAD II-ISR
Martin Unverdorben Rotenburg/Fulda, Germany and
Richmond, VA, USA Clinical Research Institute,
Center for Cardiovascular Diseases On behalf of
the PEPCAD II Investigators
2
Presenter Disclosure Information
PEPCAD II 12-Month Follow-up
The following relationships exist related to this
presentation
M.Unverdorben Nothing to disclose B.Scheller Cons
ulting and lecture fees from BBraun, co-patent
owner of Sequent Please
3
Agenda

• The PACCOCATH technology
• PEPCAD II ISR 6-month angiographic and clinical
  follow-up
• PEPCAD II ISR 12-month clinical follow-up

Statistics

• Descriptive statistics Mean SD
• Inferential statistics Students t-test,
  Fishers exact test, Logrank test
• Level of significance p lt 0.05

4
DES vs. DEB (PACCOCATH)

• Slow and continuous drug release from stent
  struts
• 100 - 200 µg Paclitaxel Sirolimus
• Polymers with associated reactions
• Implies stent deployment

DES

• Instant and short term drug release from balloon
• 300 - 600 µg Paclitaxel
• No polymers
• Stenting optional

DEB
Scheller Heart 2007, 93 539-41
5
The Matrix Coating
PACCOCATH technology creates a unique matrix
coating
pure paclitaxel
paclitaxel hydrophilic spacer
without
with PACCOCATH technology

• huge contact surface between lipophilic drug and
  the vessel wall
• high bioavailability of paclitaxel at the target
  site for rapid drug absorption by the vessel
  wall
• uniform/complete application of the drug after
  1st balloon expansion

6
SeQuent (uncoated balloon)
SeQuent Please (coated balloon)
SeQuent Please (B.Braun Vascular Systems,
Berlin, Germany) is manufactured based on the
PACCOCATH technology with 3µg paclitaxel/mm² CE
mark filed in the EU
7

• Objective
• Safety and efficacy of the Sequent Please DEB in
  the treatment of ISR in native coronary arteries
  (reference Ø ?2.5mm, ?3.5mm lesion length
  22mm) for procedural success and preservation of
  vessel patency in comparison to the Taxus DES

Study Design Prospective, randomized,
multi-center, two-arm phase-II pilot study
conducted in Germany
8

• Primary Variable
• 6-month late lumen loss

• Secondary Variables
• Procedural success (30)
• 6-month binary restenosis rate
• 6-month MACE
• MACE at 1 and 3 years

9

• Inclusion Criteria
• Stable or unstable angina (no MI)
• ISR in native coronary arteries

• Medication
• ASS 100 mg daily
• Clopidogrel 75 mg daily
• 3 months DEB
• 6 months DES

10
Patients (ITT N131)

• DEB (N66)
  DES (N65) p
• Age years 64.69.7 65.18.7 0.7
• Male 48 (72.7) 50 (76.9) 0.7
• BMI kg/m2 27.9 4.6 28.64.2 0.4
• Serum cholesterol mg/dl 172 42 180 34
  0.3
• Serum LDL mg/dl 93 39 98 29
  0.4
• Diabetes mellitus 22 (33.3) 17 (26.2)
  0.4
• Current/ex-smokers 44 (66.7) 36 (55.4)
  0.3
• Hypertension 53 (80.3) 54 (83.1) 0.8
• Family history of CAD 21 (31.8) 22 (33.8)
  0.9
• Previous MI 37 (56.1) 28 (43.1) 0.2
• PAVD 9 (13.6) 7 (10.8) 0.8
• Serum crea mg/dL 1.1 1 1.0 0.2
  0.4

11
Baseline Angiography (ITT N131)
DEB (N66) DES (N65) p
1-vessel disease 28.8 35.4
2-vessel disease 40.9 35.4 0.7
3-vessel disease 30.3 29.2
Stenosis length mm 15.7 ? 6.6 15.4 ? 6.6 0.8
Mehran I 31 (47.0) 25 (38.5)
Mehran II 20 (30.3) 26 (40.0) 0.7
Mehran III 14 (21.2) 12 (18.5)
Mehran IV 1 ( 1.5) 2 ( 3.1)
MLD pre PCI mm 0.74 ? 0.27 0.77 ? 0.30 0.6
Stenosis pre PCI 74 ? 9 73 ? 9 0.5
MLD post PCI mm 2.30 ? 0.40 2.56 ? 0.41 lt0.0001
Stenosis post PCI 20 ? 10 11 ? 8 lt0.001
12
Outcome (ITT N131)
DEB (N66) DES (N65) p
Follow-up clinical months 6.2 0.9 6.2 0.9 1
Follow-up clinical N 64 (97.0) 65 (100) 0.5
Follow-up angiographic N 57 (86.4) 59 (90.8) 0.6
Late lumen loss mm 0.20 0.45 0.45 0.68 0.02
Binary restenosis in segment 4/57 (7.0) 12/59(20.3) 0.06
TLR 4/64 (6.3) 10/65 (15.4) 0.1
Myocardial infarction 0/64 (0.0) f1/65 (1.5) 1
Death 2/64 (3.1) 1/65 (1.5) 1
Total MACE (w/o noncardiac death) 5/64 (7.8) 11/65 (16.9) 0.2
1 each non-cardiac cardiac but not lesion
related non-cardiac death
fNSTEMI due to side branch occlusion
13
As-Treated
Randomization N131
Sequent Please n66
Taxus n65
4 protocol violators Lesion too long
(41.1mm) Multilesion PCI in metal
jacket Significant flap after PCI Severe renal
failure
1 crossing failure treat/w convent balloon
4 crossing failure treat/w Sequent Please
66 DEB 56 DEB only 6 DEB BMS 4 DEB (cross-over)
60 DES 2 with additional DES
14
Outcome (AsT N126)
DEB (N66) DES (N60) P
Follow-up clinical months 6.2 0.8 6.2 0.8 0.7
Follow-up clinical N 64 (97.0) 60 (100) 0.4
Follow-up angiographic N 58 (87.9) 54 (90.0) 0.8
Late lumen loss mm 0.19 0.38 0.47 0.71 0.03
Binary restenosis in segment 2/58 (3.4) 11/54 (20.4) 0.007
TLR 2/64 (3.1) 10/60 (16.7) 0.02
Myocardial infarction 0/64 (0.0) f1/60 (1.7) 1
Death 2/64 (3.1) 1/60 (1.7) 1
Total MACE (w/o noncardiac death) 3/64 (4.7) 11/60 (18.3) 0.02
fNSTEMI due to side branch occlusion
1 cardiac, not lesion related 2 non cardiac
non-cardiac death
15
Event Free Survival (ITT/As-Treated)
p0.2 ITT
p0.03 As-Treated
Months post PCI
Logrank test
16
12-Month Follow-up As-Treated
60 DES 2 with additional DES
66 DEB 56 DEB only 6 DEB BMS 4 DEB (cross-over)
Unknown today 1/66 (1.5)
Lost to FU 0/60 (0)
Unknown today 2/60 (3.3)
Lost to FU 1/60 (1.7)
Deaths 2/66 (3.0)
Deaths 3/60 (5)
Follow-up 12.30.8 months 57/60 (95.0)
Follow-up 12.30.7 months 59/60 (98.3)
17
12-Month Event Free Survival (ITT/As-Treated)
P0.09 ITT
P0.01 As-Treated
Logrank test
Months post PCI
18
Events From 6 to 12 Months

• DEB
• 2 Px with PCI in non-target vessel
• 1/66 (1.5) Px with re-re PCI in target lesion
• DES
• 2 Px with non-cardiac death
• 3/60 (5) Px with re-re PCI in target lesion

No new patient with MACE
19
Summary PEPCAD II

• In the treatment of ISR the paclitaxel-eluting
  balloon catheter Sequent Please (B.Braun
  Melsungen AG)
• was safe and associated with a high procedural
  success rate,
• exhibited a significant reduction in 6-month late
  lumen loss and 6/12-month MACE when compared to
  the Taxus stent, and
• was not associated with late thrombosis in ?250
  patient years.

20
The PEPCAD II Investigators

• F.X. Kleber, Unfallkrankenhaus Berlin
• H. Heuer, N. Schulze-Waltrup St. Johannes
  Hospital, Dortmund
• C. Vallbracht Herz- und Kreislaufzentrum,
  Rotenburg an der Fulda
• B. Scheller Universitätsklinikum des Saarlandes,
  Homburg/Saar
• C. Hengstenberg, Universitätsklinikum, Regensburg
• M. Leschke Städtische Kliniken, Esslingen
• C. Hamm, M. Rau Kerckhoff Klinik, Bad Nauheim
• G. Werner Städtisches Klinikum, Darmstadt
• D. Antoni Krankenhaus Bogenhausen, München
• W. Bocksch Charité Virchow, Berlin
• H.Ackermann Department for Biostatistics,
  University of Frankfurt/M
• M.Boxberger, B.Braun, Berlin
• R.Degenhardt, M.Unverdorben Clinical Research
  Institute, Rotenburg an der Fulda

21
The PEPCAD ProgramPaclitaxel-Eluting
PTCA-Catheter in Coronary Artery Disease
Title Design Status PI
PEPCAD I SVD Sequent in 2.8mm, 120px, multi-center, GER 6mo-FU ? 12mo-FU? MU, CRI
PEPCAD II ISR Sequent vs Taxus in ISR, 131px, multi-center, GER 6mo-FU ? 12mo-FU? MU, CRI
PEPCAD III Sequent pre-loaded Coroflex Blue vs Cypher, 600 px, Europe Q2/07 recruiting B.SchellerC.Hamm
PEPCAD IV DM Sequent vs Taxus in DM, 160px, multi-center, Thailand, Malaysia Q2/07 recruiting D.Rosli, MU, CRI
PEPCAD V BIF Sequent, 25px, dual-center, GER Q3/ 07 recruiting D.Mathey F.Kleber MU, CRI
INDICOR Coroflex BlueSequent, Real World, 100px IRB U.Kaul, MU,CRI
22
This is not the end. It is not even the beginning
of the end. But it is, perhaps, the end of the
beginning.
(Sir Winston S.Churchill)
