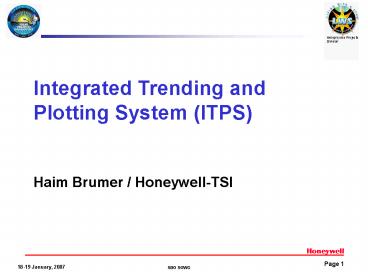

Integrated Trending and Plotting System (ITPS)
Haim Brumer / Honeywell-TSI
2
ITPS - Introduction

• Purpose
• Acquisition, compilation, storage, extraction and
  analysis of SDO housekeeping telemetry data.
• Usage
• Gives FOT access to full resolution archive of
  all housekeeping data points (mnemonics).
• Reduced resolution statistical archive serves as
  basis for trend determination.
• Generation of reports, plots and tables using
  precise analysis and mining capabilities.
• Key Features
• Complete end-to-end automation reduces FOT burden

• Web access gives remote authorized users access
  to ITPS.
• GOTS
• First developed on behalf of Landsat 7 and SOHO,
• Trending solution for Landsat 5, Landsat 4
  (historical data), Wind, POLAR, ST-5, LRO, TRMM,
  GLAST, Landsat 7, JWST (prototype)

3
ITPS Data Interfaces
4
ITPS Features

• Data analysis and trending
• Reports and plots
• Automation allows complete hands-off operation
• Flexibility / modularity
• User-friendly interface

5
System Architecture

• Full resolution telemetry data
• Standard components
• Inexpensive hardware
• Reuse of existing code (gt95)
• Familiar interface

6
Data Sources

• Full Resolution Life-of-Mission
• Real-Time / Playback / I T / post mission
• Automatic acquisition of new telemetry
• Reduced-resolution telemetry statistics
• Multiple PDB Version Support
• Correlated with Flight Dynamics Data
• Imported / External Data

7
Automation

• End-to-End
• Telemetry acquisition
• Flight dynamics data acquisition and ingestion
• Telemetry ingestion
• Automated daily products generation
• Analysis / Plotting / Reports
• Long-term trend production

8
Data Extraction

• Mission PDB-based extraction
• High-precision filtering
• Pseudo (derived) mnemonics
• Orbital events
• PDB limit violation detection (reports, plots)
• Product export

9
Plots

• Mnemonic vs. time
• Mnemonic vs. mnemonic
• Flexibility in extraction
• Customization of plots
• Limit violation data
• Part of automation
• Built on COTS and GOTS

10
Reports

• Mnemonic value tables
• Statistics
• Data quality
• Data gap
• Mnemonic change (delta)
• Limit violation
• Part of automation
• Can use pseudo-mnemonics

11
Lifetime Trend

• One time decom extraction
• Automated generation
• Statistics by day, hour, orbit
• Flexibility (selectivity)
• Speed in extraction
• Unlimited mnemonics

12
Pseudo (Derived) Mnemonics

• Mnemonic components
• Arithmetic functions
• Trigonometric Functions
• Logical evaluation
• Nested
• Filtering
• Reports
• Plotting
• Lifetime trend

13
Web Features

• Multiplies simultaneous access
• Reduces burden
• Login protection
• Encryption
• Priorities
• Lights out support

14
ITPS - User Interface Main Interface
15
ITPS - User Interface Sample Plot

16
ITPS - User Interface Web Plot

17
ITPS - User Interface Report (MOC Web)

18
ITPS Tool Mnemonic Browser

• Access to all available mnemonics
• All mnemonics info (from mission PDB)
• Regular expression searches (by name and
  description)

19
Demonstration

• Creation of IDF
• Mnemonic Browser
• Plot generation
• Introduction of filtering
• Report generation
• Extraction of LTT data
• Generation of Pseudo-mnemonic
• Web access
