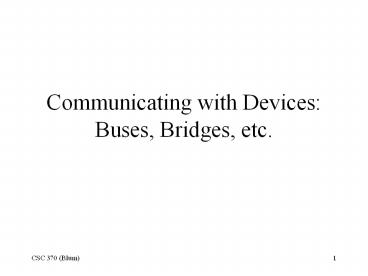

Communicating with Devices Buses, Bridges, etc.
2
Look to the Future
  • From the beginning PCs have been made with
    expandability and adaptability in mind.
  • While certain I/O devices came standard, there
    was room to add others to expand the computers
    capabilities and to adapt the PC to the
    particular needs.
  • The circuitry required by the new device is
    placed on the expansion card or adapter card.
  • We also need to connect to and communicate with
    the rest of the PC, this is the job of the
    expansion bus.

3
Standards
  • IBM developed the first PCs, the first PC bus and
    the first PC expansion slots. It was an 8-bit
    bus. They allowed others to use that technology
    without having to pay royalties. (However, they
    never released the full specifications.)
  • This step allowed competitors to make IBM
    clones which brought the price of PCs down. But
    the low price helped to establish a standard.
  • The standard made peripheral makers jobs easier.
    They only had to design for one interface.

4
Bottlenecks
  • The standard devices and expansion devices
    operate at a wide variety of speeds. We need a
    design that allows to whatever extent possible
    each device to operate at its own speed.
  • Actually we will have a hierarchy of standard
    speeds different buses carrying data at
    different speeds.
  • The interface between devices of different speeds
    can be a source of slow downs (bottlenecks).
  • The chipset handles much of this interfacing.

5
Chipset
  • The main components of the computer (processor,
    memory, cache, etc.) plug into the motherboard
    and communicate via the chipset.
  • The chipset determines which type of processor
    can be used, how fast a processor, how much
    memory, what type of memory, and so on.
  • The chipsets function are typically broken into
    two sets, one handled by the Northbridge and the
    other handled by the Southbridge.

6
Northbridge
  • The Northbridge handles the high-speed,
    high-volume data communication between the CPU,
    cache, memory and AGP (accelerated graphics
    port).
  • Since the Northbridge manages the
    processor-memory interaction (the front-side bus
    bottleneck), its performance is critical.
  • The Northbridge determines the FSB speed.
    Typically the processor operates at a
    multiplicative factor (the CPU multiplier) of
    the FSB speed.
  • It uses synchronous memory, recall SDRAM.

7
Southbridge
  • The Southbridge allows communication with a
    greater variety of slower devices. It connects
    to the secondary buses USB, IDE, PS/2,
    Ethernet.
  • Since it handles accessing the hard disk, the
    Southbridge manages a bottleneck of its own,
    especially for memory-intensive applications.

8
(No Transcript)
9
North
South
10
Bridge Interface
  • Older chipsets used the PCI (Peripheral Component
    Interconnect) Bus to connect the Northbridge and
    Southbridge. But with more devices using the PCI
    bus, modern chipsets have introduced a dedicated
    interface between the chips.
  • Another multiplicative speed factor is between
    the FSB speed and the PCI speed.
  • The standard PCI bus speed is 33.3 MHz, while
    standard FSB speeds are 100 MHz (3X) and 133 MHz
    (4X).
  • Motherboards that use this multiplicative factor
    are said to be synchronous.

11
Bus History
  • When Intel moved to a 16-bit data bus (with the
    256), the expansion buses needed to be changed as
    well.
  • IBM developed a 16-bit bus that was backward
    compatible with the PC 8-bit bus. They debuted it
    in their Advanced Technology (AT) computer and it
    became known as the AT bus.
  • Based on the AT bus, some IBM competitors got
    together to lay out some specifications known as
    Industry Standard Architecture (ISA).

12
No more ISA
  • ISA slots were kept in PCs for reasons of
    backward compatibility for many years.
  • They have been officially dropped from what
    Microsoft and Intel see as a PC in their PC 2001
    System Design Guide.
  • This move is to reduce legacy dependence.
  • If needed one can get PCI cards that can simulate
    an ISA card to interface with legacy devices.

13
Link to PC 2001 System Design Guide
14
PC 2001 System Design Guide
15
Communication
  • Expansion cards, as well as other peripheral
    devices, can communicate with the processor and
    memory through one or more of the following
  • I/O Addresses
  • Interrupt Requests Lines (IRQs)
  • Direct Memory Access (DMA) channels
  • Memory Addresses
  • Known as system resources.

16
I/O Address
  • The processor has an external data bus and an
    address bus.
  • One use of the address bus is to indicate the
    word in memory that the processor wishes to
    access.
  • A set of address bus combinations are reserved to
    communicate with peripherals. A given peripheral
    may have several addresses assigned to it, each
    corresponding to a different action that the
    processor is requesting.

17
Uniqueness
  • As is normal with addresses, each I/O address
    should be unique. If two devices shared an I/O
    address, then it would be unclear which device
    the processor intended to communicate with.
  • IBM set the early standards assigning certain
    standard devices set I/O addresses.

18
Start/Settings/Control Panel/System/
Hardware/Device Manager
19
Click to expand items under a particular device
then double click on the item
20
Resources
21
(No Transcript)
22
IRQs
  • While I/O addressing allows the processor to
    initiate communication with a peripheral, the IRQ
    allows the peripheral to initiate communication
    with the processor. The processor must be
    interrupted.
  • The processor has one pin to indicate that it has
    been interrupted. When it reaches a point at
    which it can process the interruption, it needs
    to trace back and determine which device
    interrupted it. This is the purpose of the IRQs.

23
Interrupt Controller
  • After the processor has been interrupted, it uses
    the I/O Address approach to initiate
    communication with the interrupt controller which
    will help the processor determine which device
    made the request.

24
Table of IRQs
25
Another type of addressing
  • IRQs are another form of addressing.
  • There are far fewer of IRQs than there are I/O
    addresses and so it is more likely that IRQ
    conflicts will occur.
  • Under certain circumstances it is possible for
    two devices to share an IRQ line provided the two
    devices are never active simultaneously (e.g. a
    fax and a modem that use the same phone line).
  • Early on IBM assigned to IRQs to some standard
    devices.

26
Table of IRQs (Cont.)
27
NIC using IRQ 9
28
Ports
  • To accommodate that many devices would need I/O
    addresses, an IRQ and a set of rules for
    communicating, two standards were established
    one for serial communication (the COM ports) and
    another for parallel communication (the LPT
    ports).

29
COM and LPT Assignments
Port I/O Base Address IRQ
COM1 03F8 4
COM2 02F8 3
COM3 03E8 4
COM4 02E8 3
LPT1 0378 7
LPT2 0278 5
30
DMA
  • Direct Memory Access (DMA) allows devices to
    interact with the memory without the processor
    having to get involved.
  • The processor delegates some of its traffic
    control duties.
  • Now we have a situation in which a number of
    devices may want to use the buses to access
    memory, so we need another addressing/ requesting
    system.
  • Note with our cache hierarchy, we hope that the
    processor accesses the memory infrequently (less
    than 5 of the time).

31
DMA Channel for Floppy
32
Bus Mastering
  • Choosing to show the floppys DMA channel was not
    just a random example. The floppy uses classic
    (third-party) DMA.
  • Third-party DMA was slow.
  • In first-party DMA, a.k.a. bus mastering, the
    device (e.g. hard disk drive) controls the
    interaction with memory.
  • The devices sense if some other device is
    accesses memory.

33
Changing View of the Device Manager
34
DMA
35
I/O Addresses
36
IRQs
37
Memory-Mapped I/O
38
Buses that have come and gone
  • Micro-Channel Architecture (MCA) extends to
    32-bit width, increased speed, was
    self-configuring BUT was not backward compatible
    and was proprietary
  • Extended ISA (EISA) was 32-bit, self-configuring,
    backward compatible, open standard BUT slow
  • Video Electronics Standards Association Local Bus
    (VL-Bus or VESA Bus) was fast because it worked
    with the North bridge instead of the South Bridge
    BUT was NOT self-configuring.

39
And the Winner is PCI
  • Peripheral Component Interconnect (PCI)
  • Intel introduced the PCI bus structure pretty
    much at the same time it introduced the Pentium.
  • Like the VESA bus, it interfaces with the
    Northbridge so it is fast.
  • It is also self-configuring.
  • It allows for bus mastering.
  • It was effectively free (provided automatically
    by Intel).
  • It allowed data bursting.
  • It was scalable.
  • While introduced by Intel, it works with other
    processors including Machintosh.

40
Bus Comparison Table
41
PCI Card Connectors
A PCI card has 47 pins with no bus mastering and
has 49 pins with bus mastering.
42
PCI Slots
43
Putting a card in
  • Keep the card in its anti-static bag until you
    are ready to insert it.
  • Turn off and unplug the PC.
  • If you dont have a wrist strap to protect
    against electrostatic discharge (ESD) then after
    removing the card from the bag touch the PCs
    power supply. The smallest shock could ruin the
    card or the motherboard.
  • Insert the card straight in or at most a slight
    angle.
  • Screw the card to the box with a connection screw
    it keeps the card in place and can help ground
    it.

44
Putting a card in (Cont.)
  • Close the computer, plug it in and start.
  • You should get a message from the operating
    system that it has detected new hardware.
  • It will search for a driver and/or request that
    you insert a CD with the driver.
  • You may need to reboot depending on the device.
  • You should look for the new device in the device
    manager to make sure there are no conflicts.

45
Hardware Compatibility List
46
Look for Compatibility between device and
operating system
47
Plug and Play
  • Plug and Play (PnP) is a feature in which the
    system configures a device automatically rather
    than the user having to set jumpers and choose
    resources, etc.
  • For PnP one needs
  • A PnP BIOS
  • A PnP operating system
  • A PnP device
  • All PCI devices are PnP
  • A device which is not PnP is called a legacy
    device.

48
How Plug and Play Works
  • Initially the PnP devices are put on hold and
    resources are assigned to legacy devices.
  • Then the system starts querying the PnP devices
    about the resources each wants.
  • A PnP device will provide a list of resources it
    could use.
  • For example, it would not specify IRQ 3 but
    rather specify that it could use IRQ 3 or IRQ 5
    or IRQ 7.
  • A file with PnP information, called the Extended
    System Configuration Data (ESCD), is kept.

49
AGP
  • Specification developed by Intel, even faster
    than PCI and more directly connected to the
    Northbridge is the AGP (Accelerated Graphics
    Port).
  • It is dedicated to graphics. It will have its
    own slot to be used only for this purpose.

50
References
  • All-in-One A Certification, M. Meyers and S.
    Jernigan
  • http//www.pcguide.com
  • PC Hardware in a Nutshell, R. Thompson and B.
    Thompson
Write a Comment
User Comments (0)
About PowerShow.com
