Chapter 2 Parts of a Computer System

1

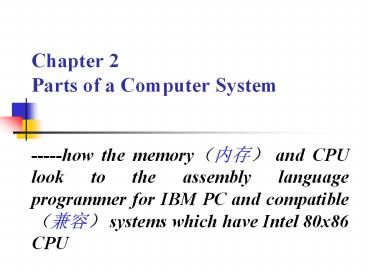

Chapter 2 Parts of a Computer System

• -----how the memory(??) and CPU look to the
  assembly language programmer for IBM PC and
  compatible(??) systems which have Intel 80x86 CPU

2
Aims

• Introduce memory system in IBM PC
• Introduce registers(???) in 80X86 CPU
• Introduce I/O device
• Introduce software used in assembly language
  programming

3
Outcomes

• Master the concepts , model of the memory in IBM
  PC
• Master the registers in 80x86 CPU
• Mater the software that used in programming with
  assembly language
• Know I/O device in IBM PC

4
PC computer system

• Hardware
• Central processing unit (CPU), memory circuits,
  keyboard, monitor and other input/output device
• Software
• Refers to the programs that the hardware executes
• System software
• Application software

5
History of Intel CPU

• We will discuss PC based on Intel CPU.So lets
  look at the history of Intel CPU.

6
The Microprocessor Age

• 4-bit microprocessors
• Intel 4004, the worlds first one, 1971
• Intel 4040, an updated version of 4004
• 8-bit microprocessors
• Intel 8008, 8080,8085
• Motorola MC6800, Zilog Z80

7
The Modern Microprocessor

• In 1978, Intel released the 8086 microprocessor
  a year or so later, it released the 8088. Both
  devices are 16-bit microprocessors. They can run
  faster than 8085 and address(??) 1M bytes of
  memory.

16-bit CPU
8
The Intel family of microprocessors

• 8086/8088, 80186/80188
• 80286
• 80386
• 80486
• Pentium, MMX Pentium
• Pentium II, Pentium Pro
• Pentium III
• Pentium 4, Pentium TH

IA-32 Intel 32-bit Architecture
9
The Future of Microprocessors

• Lots of new technology, used for parallel
  processing (????)
• Superscalar (???)
• Superpipelining (?????)
• SIMD (Single instruction multiple data)
• Hyper-Threading(???)
• 64-bit microprocessor
• EPIC (Explicitly Parallel Instruction Computing)
  in Itanium

10
Personal Computer System

• Memory system (?????)DRAM, SRAM, Cache, ROM,
  EEPROM, Flash memory
• I/O system (??????)Mouse, Keyboard, Monitor ,
  Disk drive, DVD drive, Printer, Plotter, Scanner
• Microprocessor (????) CPU (central processing
  unit ??????)
• Bus (??)
• Data bus, control bus,address bus

11
2.1 PC hardware Memory

• Memory in an IBM PC or compatible microcomputer
  is logically a collection of slots, each of
  which can store one byte(??) of instructions or
  data

12
Little Endian

• How to store a word (two bytes) in the
  memory?--Intels method little endian (????)
• The low byte goes to the low memory location, and
  the high byte goes to the high memory address.
• An alternate method big endian (????)

13
Data in memory
low
34h
12h
78h
56h
high
14
RAM ROM

• Read-only memory (ROM)
• Permanently retain their contents and can be read
  from but not written to.
• Random access memory (RAM)
• Can be written to read from by program
  instructions
• The contents of RAM chips are lost when the
  computers power is turned off

15
Physical address (????)

• Each memory byte has a 32-bit/20-bit numeric
  label called physical address

16
Prior to the 80386 chip

• Processors has 20-bit address bus, so they can
  only directly address 220 bytes of memory.
• Range from 00000h to FFFFFh
• 1M

17
Up to 80386

• Processors has 32-bit address bus, so they can
  only directly address 232 bytes of memory.
• From 00000000h to FFFFFFFFh
• A PC can contain up to four gigabytes memory

We'll mainly discuss IA-32
18
Memory models (????)

• 32-bit memory model
• Flat memory model (??????)
• Segmented memory model (??????)
• 16-bit memory model
• Real address mode memory model(???????)

19
Real address memory mode(?????)

• Real address allows the CPU to address only the
  first 1M bytes of memory space, which is called
  either the real memory (????) or conventional
  memory (?????).
• Memory is visualized as a collection of segments,
  each segment 64Kbytes long, starting on an
  address that is multiple of 16.(paragraph)
• A segment is a section (an area) of memory.

20
Segment (?)

• The CPU may use many segments in the program. For
  instance, a typical assembly language program
  consists of at least three segments
• code segment (???)
• (holds the code, i.e. programs or procedures)
• data segment (???)
• (contains the most data used in a program)
• stack segment (???)
• (the area of memory used for the stack)

21
Memory reference

• Memory reference depends on its segment number
  and a 16-bit offset from the beginning of the
  segment.
• Normally only offset is encoded, and the segment
  number is deduced from the context.

22
Logical address and physical address

• In the real mode, the physical address (????) is
  the 20-bit address that is actually put on the
  address bus. This address can have a range of
  00000H FFFFFH.
• The logical address (????) consists of a segment
  address and an offset address.
• Well use logical address in programming.
• Segment address offset address

23
Segments and offsets

• A combination of a segment address and an offset
  address access a memory location in the real
  mode.
• segment address (???) the beginning address of
  any 64K-byte memory segment
• offset address (????) the location within the
  64K-byte segment range, the distance or
  displacement (???) above the start of the segment

24
Segment address

• In real mode, a segment is 64K in length and can
  begin only at a 16-byte boundary.
• 16-byte boundary means that least significant
  four bits are 0000b. This 16-byte boundary (such
  an address ends in 0H) is often called a
  paragraph (?).
• Segment address
• is most significant 16 bits of starting address
• Segment number consists of the first four hex
  digits of its physical address.

25
Offset address

• Offset is the distance from the first byte of the
  segment to the byte being addressed.
• A segment is limited to 64K byte (16-bit) in the
  real mode, therefore an offset address can range
  from 0000H to FFFFH.
• The offset address is added to the start of the
  segment to address a memory location (physical
  address) within the memory segment.

Segment address Starting address Offset address Memory location
1000H AB00H 1234H 10000H AB000H 12340H 2000H 3405H 0100H 12000H AE405H 12440H
26
Conversion from logical address to physical
address

• Add the starting address of the segment and the
  offset

logical address segment address offset address physical address
1000H 2000H AB00H 3405H 1234H 0100H 12000H AE405H 12440H

• The physical address is calculated by shifting
  segment value one hex digit and adding the offset
  value.

27
32-bit segmented memory model (from 386)

• segment numbers are 16-bit long and used as an
  index into a table that contains the actual
  32-bit starting addressing of the segment
• add 32-bit offset and starting address to compute
  the actual 32-bit address
• map the 32-bit address into physical addresses by
  paging mechanism

28
segmentation
selector(???)
Logical address
offset(32bit)
segment number(16bit)
Linear address space (??????)
Global descriptor table (GDT)
segment

line address



global descriptor (???)

segment base address (????)
29
Paging is optional. If paging is not used, the
linear address can be directly mapped into
physical address.
paging
Linear address space (??????)
physical address space
Line address
page

physical address


segment

line address


Dir. table offset
page table

Entry

page directory

Entry

page
30
paging mechanism

• Layer of memory management performed by the
  operating system and the Intel 80x86 CPU
• Paging mechanism is transparent to programmer
• Useful when logical address generated by the
  program exceeds the physical memory address

31
for programmer

• assigns different memory segments to code ,data
  and a system stack.

32
Flat memory model

• Programs will actually encode 32-bit addresses to
  logically reference locations in a single memory
  space where data and instructions are stored.
• Is really a 32-bit segmented model with all
  segment registers containing the same value.

33
2.2 PC Hardware CPU

• The X86 CPUs contain 16 program-visible
  registers.
• Registers is internal storage location that can
  be accessed much more rapidly than a locations in
  RAM.
• They are used during application programming and
  are specified by the instructions using their
  names.They are used to store information
  temporarily.

34
Application registers

• Multipurpose (or general-purpose)
  registers(?????)
• Special-purpose registers(?????)
• Segment registers(????)

35
IA-32 operating modes(????)

• Protected mode(????)
• Real address mode(?????)
• System management mode SMM(??????)

36
Protected mode

• Native state of IA-32.
• Cab directly execute 16-bit software in
  protected, multitasking environment.
• Virtual 8086 mode(??8086??)

37
Real address mode

• Implementing the programming environment of 8086
  CPU with extension.
• Can switch to protected mode
• Original mode following power-up or reset.

38
System management mode SMM

• This mode provides an operating system or
  executive with a transparent mechanism for
  implementing platform-specific functions such as
  power management and system security.

39
Data registers / general registers

• EAX (AX) accumulator ???
• EBX (BX) base index ?????
• ECX (CX) count ???
• EDX (DX) data ?????

40
8-, 16- and 32-bit registers

• Eight 8-bit general-purpose registers
• AH, AL, BH, BL, CH, CL, DH, DL
• H means high byte in the 16-bit register
• L means low byte in the 16-bit register
• AH and AL form AX,
• Eight 16-bit general-purpose registers
• AX, BX, CX, DX, BP, DI, SI, SP
• Eight 32-bit general-purpose registers
• EAX, EBX, ECX, EDX, EBP, EDI, ESI, ESP
• E means 32-bit extended

41
Special purpose registers

• EIP (IP) instruction pointer ????
• ESP (SP) stack pointer ????
• EDI (DI) destination index ???????
• ESI (SI) source index ??????
• EBP (BP) base pointer ????

42
EIP (IP)

• EIP addresses the next instruction to be fetched
  in a section of memory defined as a code segment
  (???).
• EIP points to the next instruction, but can be
  modified with a jump (??) or call (??)
  instruction.
• Cannot be directly accessed by programmer
• This register is IP (16 bits) in the real mode
  (???) and EIP (32 bits) in the protected mode
  (????).

43
Pipelining mechanism(?????)

• Prefetching(??) instruction
• Starting execution of an instruction before it
  finishes execution of prior instructions
• Increase effective processor speed

44
ESP (SP)

• ESP addresses an area of memory called stack.
• The stack (??) memory is accessed using a LIFO
  (last-in, first-out ????) method.
• ESP points to the top of the stack, but will be
  modified with a push or pop instruction.
• This register is SP (16 bits) in the real mode
  and ESP (32 bits) in the protected mode.

45
EBP(BP)

• Mark a fixed slot in the stack
• This register is BP (16 bits) in the real mode
  and EBP (32 bits) in the protected mode.

46
EFLAGS (?????)

• EFLAGS indicate the condition of the
  microprocessor and control its operation.
• The 16-bit CPU only contain a 16-bit FLAG
  register, which has nine flags
• CF, PF, AF, ZF, SF and OF are called conditional
  flags (???????)
• indicate condition that resulted after an
  instruction was executed.
• TF, DF, and IF are called control flags (????)
• control the operation of instructions before they
  are executed.

47
CF (carry flag ????)

• Carry holds the carry after addition or the
  borrow after subtraction.
• The carry flag also indicates error conditions as
  dictated by some programs and procedures.

48
PF (parity flag ????)

• Parity is a count of ones in a number expressed
  as even (??) or odd (??).
• Parity is a logic 0 for odd parity and a logic 1
  for even parity.
• If a number contains odd binary one bits, it has
  odd parity. If a number contains zero or even
  binary one bits, it has even parity.

49
ZF (zero flag ???)

• The zero flag shows that the result of an
  arithmetic (??) or logic (??) operation is zero.
• If the result is zero, ZF1 If the result is not
  zero, ZF0.

50
SF (sign flag ????)

• The sign flag holds the arithmetic sign of the
  result after an arithmetic or logic instruction
  executes.
• If SF1, the sign bit (leftmost bit of a number)
  is set (??) or negative (?) If SF0, the sign
  bit is cleared (?????) or positive (?) .

51
OF (overflow flag ????)

• Overflow occurs when signed numbers are added or
  subtracted. For unsigned operation, the overflow
  flag is ignored.
• An overflow indicates that the result has
  exceeded the capacity of the machine.

52
Segment registers

• A segment register (16-bit) defines the starting
  address of a segment.
• CS code segment
• DS data segment
• SS stack segment
• ES extra segment (an additional data segment
  ???)
• FS and GS supplemental segment registers
  available in the 80386 and above

53
Numbers in segment registers

• Real address memory mode
• Number in segment registers are segment address.
• Segmented memory mode
• Number in segment registers are selectors
• Flat memory mode
• Irreverent to programmer
• All segment register have the same number.

54
2.3 PC Hardware Input/Output Devices

• separate port address
• port address are distinct from ordinary memory
  addresses, use instruction to output data or read
  data from these ports.
• Memory-mapped input/output
• Use addresses in the regular memory address space
  for I/O device access.

55
80x86 architecture

• separate port address
• 64K port addresses
• a typical I/O device uses three or eight ports

56
2.4 PC Software

• Software refers to the programs or procedures
  executed by the hardware.
• System software(????)
• Operating system(????)
• Application software (????)
• Text Editors (?????)
• Language Translators and Linker

57
Operating system

• Software to run other programs.
• DOS
• Command line interface, prompt
• Windows
• Graphical user interface
• Linux
• Open codes

58
Text Editors (?????)

• Software to create or modify text files that are
  stored on the disk
• Text file is a collection of ASCII codes.
• Source code files are text file
• Notepad, Word processor,Edit
• The extension name of assembly source file is
  .ASM
• Example test.asm

59
Language Translators

• Language translators are programs that translate
  a programmers source code into a form that can
  be executed by the computer.
• Interpreters(???)
• Compliers(???)

60
Interpreters

• Interpretersdirectly decipher(??) a source
  program
• Interpreter looks at a line of source code and
  follows the instructions of that line
• Slowly

61
Compliers(???)

• Compliers starts with source code and produce
  object code that consists mostly of instructions
  to be executed by the intended CPU.
• Assembler(????) like a complier, translates
  assembly language into machine code.
• ML.exe

62
How to use ML.EXE
63
LINKER(????)

• LINKER link object code to make a program that
  can be executed.
• Link.exe
• 16-bit
• 32-bit

64
How to use link
65
Debugger(???,????)

• Debugger allows a programmer to control
  execution of a program, pausing after each
  instruction or at a preset breakpoint.
• Debug.exe
• Windbg.exe
• SoftIce.exe

66
Integrated Development Environments IDE(??????)

• Use a single interface to access an editor, a
  complier, and a linker.
• MASM32

67
MASM32
68
BUILDbuildc.bat 1
_at_echo off if exist "1.obj" del "1.obj" if
exist "1.exe" del "1.exe" REM
?? \masm32\bin\ml /c /coff "1.asm" if errorlevel
1 goto errasm
69
BUILDbuildc.bat 2
REM ?? \masm32\bin\Link /SUBSYSTEMCONSOLE
/OPTNOREF "1.obj" if errorlevel 1 goto
errlink dir "1." goto TheEnd
70
BUILDbuildc.bat 3
errlink echo Link error goto TheEnd errasm echo
Assembly Error goto TheEnd TheEnd pause
71
After build
72
Run program
73
Exercises

• P30. Exercises 2.1-- 2,3
• P34. Exercises 2.2--1, 2, 3
• P34 Exercises 2.3--1, 2
