Wi300 MIMO LTE antenne int

1

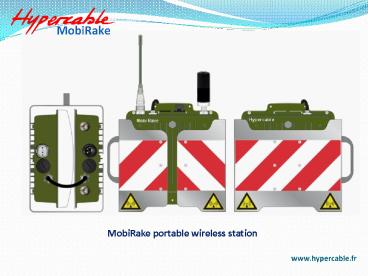

MobiRake portable wireless station
2
PWS configuration for an emergency back-up mode.
Base Station MobiRake portable wireless station
PMPT Wirelesss or Copper connected to
Internet Provide up to 20 CPE PWS
3
Frontline HD MobiRake IP radio repeater system
Hypercable MobiRake Combi
3G/4G LTE
3G/4G up to few km
MobiRake PTP PMPT High indoor penetration Long
distance Backhaul
WiFi 2 up to 200 meters
WiFi 1 up to 50 meters
MobiRake PTMP UHF Long Range High penetration
Audisoft Expert Frontline HD
WiFi 802.11 Up to 1 km
4
Portable Wireless Station 15 Hours Autonomous
time

• System specifications
• PTMP 400 MHz 5W OFDM Radio (16 Mbps throughput
  in 10 MHz BW 8 Mbps throughput in 5 MHz BW).
• IEEE 802.11 bgn Access Point.
• Battery cell built-in
• 15 hours autonomous time.
• IP 68

PTMP 400 MHz OFDM
IEEE 802.11 bgn
IEEE 802.11 bgn
15 hours stand alone
IEEE 802.11 bgn
IEEE 802.11 bgn

• Ordering information
• PWE0424 400 MHz PTMP 2.4 GHz AP
• Customized Frequency range 300 MHz 7 GHz

5
Portable Wireless Station 38 Hours Autonomous
time
PTMP 2.3/4.9/5 GHz OFDM TDMA

• System specifications
• PTMP 2.3/4.9/5 GHz 200mW OFDM Radio
• IEEE 802.11 bgn Access Point.
• Battery cell built-in
• 38 hours autonomous time.
• IP 68

IEEE 802.11 bgn
IEEE 802.11 bgn
38 hours stand alone
38 hours stand alone
IEEE 802.11 bgn
IEEE 802.11 bgn

• Ordering information
• PWE2324 2.3 GHz PTMP 2.4 GHz AP
• PWE4924 4.9 GHz PTMP 2.4 GHz AP
• PWE5024 5 GHz PTMP 2.4 GHz AP
