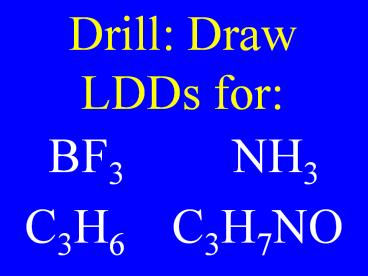

Drill: Draw LDDs for:

1
Drill Draw LDDs for

• BF3 NH3
• C3H6 C3H7NO

2
Solutions
3
Solution

• Homogeneous mixture made up of at least one
  solute dissolved in the solvent

4
Solute

• Substance being dissolved
• Portion in lesser molar amount

5
Solvent

• Substance doing the dissolving
• Portion in greatest molar amount

6
Colloid

• Slightly larger particles
• Light passes particles stay suspended

7
Suspension

• Even larger particles
• Particles block or reflect light

8
Tyndall Effect

• Because light reflects off suspended particles,
  the light ray can be seen from the side

9
Size Comparison

• Solution lt Colloid
• Colloid lt Suspension

10
Soluble

• When one substance (solute) dissolves in another
  (solvent)

11
Solubility

• The max amount of one substance (solute)
  dissolved in another (solvent)

12
Concentration

• The amount of solute dissolved into solution

13
ConcentratedSolution

• A solution with a relatively large amount of
  solute dissolved

14
Dilute Solution

• A solution with a relatively small amount of
  solute dissolved

15
Saturated Solution

• A solution with the maximum amount of solute
  dissolved in the solution

16
Unsaturated Solution

• A solution with less than the maximum amount of
  solute dissolved in solution

17
Supersaturated Solution

• A solution with greater than the maximum amount
  of solute dissolved in solution

18
Drill Draw LDDs for
C4H8 HNO3 C4H6O
19
Solution Chemistry
20
Solution Measures

• Concentration soln
• Molarity
• Molality
• Mole Fraction

21
Percent Solution

• Mass of one portion per the total mass, all times
  100
• soln ma/mtotal x 100

22
Molarity

• Moles of solute per liter of solution
• M molessolute/Lsoln

23
Molality

• Moles of solute per kilogram of solvent
• mo molessolute/kgsolvent

24
Mole Fraction

• Moles of one portion per total number of moles in
  the solution
• X molesa/molessoln

25
Calculate the molarity of a 250 mL solution
containing 5.0 g NaOH dissolved in water
26
Calculate the molality of 69 g of C2H5OH
dissolved in 500.0 mL of water
27
Calculate the mole fraction of each portion when
92 g of C2H5OH dissolved in 144 mL of water
28
Calculate the molality mole fraction of a
solution containing 46 g of C2H5OH dissolved in
1782 mL of water
29
Drill

• Calculate the mass of KI required to make 250 mL
  of 0.500 M KI.

30
Colligative Properties

• Properties dependent only on the concentration of
  particles in solution

31
Examples

• Vapor pressure
• Boiling Freezing points
• Osmotic pressure

32
(No Transcript)
33
Vapor Pressure

• VPsolution (VPsolvent)(Xsolvent)
• X mole fraction
• VP vapor pressure

34
Boiling Freezing
DT imoK DT change in BP or FP i ionic
activity K BP or FP constant
35
Osmotic Pressure
p iMRT p osmotic pressure i ionic
activity M Molarity
36
Calculate the vapor pressure of a solution
containing 150 g C5H10O5 in 162 mL of water at
30oC
37
Calculate BP FP of 60.0 g of NaOH in 250 mL
waterKBP 0.512oC/moKFP -1.86oC/mo
38
Calculate the osmotic pressure of a solution
containing 12 g of NaOH dissolved in 250 mL
solution at 27oC
39
Drill

• Calculate the VP of a solution containing 36
  m/m glucose (C6H12O6) in water at 29oC
• (VPwater 30.0 mm Hg)

40
Drill Draw LDDs for

• BF3 NH3
• C3H6 C3H7NO

41
Are there any questions on previous material?
42
Solutions
43
Solution

• Homogeneous mixture made up of at least one
  solute dissolved in the solvent

44
Solute

• Substance being dissolved
• Portion in lesser molar amount

45
Solvent

• Substance doing the dissolving
• Portion in greatest molar amount

46
Colloid

• Slightly larger particles
• Light passes particles stay suspended

47
Suspension

• Even larger particles
• Particles block or reflect light

48
Tyndall Effect

• Because light reflects off suspended particles,
  the light ray can be seen from the side

49
Size Comparison

• Solution lt Colloid
• Colloid lt Suspension

50
Soluble

• When one substance (solute) dissolves in another
  (solvent)

51
Solubility

• The max amount of one substance (solute)
  dissolved in another (solvent)

52
Concentration

• The amount of solute dissolved into solution

53
ConcentratedSolution

• A solution with a relatively large amount of
  solute dissolved

54
Dilute Solution

• A solution with a relatively small amount of
  solute dissolved

55
Saturated Solution

• A solution with the maximum amount of solute
  dissolved in the solution

56
Unsaturated Solution

• A solution with less than the maximum amount of
  solute dissolved in solution

57
Supersaturated Solution

• A solution with greater than the maximum amount
  of solute dissolved in solution

58
Drill Draw LDDs for
C4H8 HNO3 C4H6O
59
Solution Chemistry
60
Solution Measures

• Concentration soln
• Molarity
• Molality
• Mole Fraction

61
Percent Solution

• Mass of one portion per the total mass, all times
  100
• soln ma/mtotal x 100

62
Molarity

• Moles of solute per liter of solution
• M molessolute/Lsoln

63
Molality

• Moles of solute per kilogram of solvent
• mo molessolute/kgsolvent

64
Mole Fraction

• Moles of one portion per total number of moles in
  the solution
• X molesa/molessoln

65
Calculate the molarity of a 250 mL solution
containing 5.0 g NaOH dissolved in water
66
Calculate the molality of 69 g of C2H5OH
dissolved in 500.0 mL of water
67
Calculate the mole fraction of each portion when
92 g of C2H5OH dissolved in 144 mL of water
68
Calculate the molality mole fraction of a
solution containing 46 g of C2H5OH dissolved in
1782 mL of water
69
Drill

• Calculate the mass of KI required to make 250 mL
  of 0.500 M KI.

70
Are there any questions on previous material?
71
Colligative Properties

• Properties dependent only on the concentration of
  particles in solution

72
Examples

• Vapor pressure
• Boiling Freezing points
• Osmotic pressure

73
(No Transcript)
74
Vapor Pressure

• VPsolution (VPsolvent)(Xsolvent)
• X mole fraction
• VP vapor pressure

75
Boiling Freezing
DT imoK DT change in BP or FP i ionic
activity K BP or FP constant
76
Osmotic Pressure
p iMRT p osmotic pressure i ionic
activity M Molarity
77
Calculate the vapor pressure of a solution
containing 150 g C5H10O5 in 162 mL of water at
30oC
78
Calculate BP FP of 60.0 g of NaOH in 250 mL
waterKBP 0.512oC/moKFP -1.86oC/mo
79
Calculate the osmotic pressure of a solution
containing 12 g of NaOH dissolved in 250 mL
solution at 27oC
80
Drill

• Calculate the VP of a solution containing 36.0
  m/m glucose (C6H12O6) in water at 29oC
• (VPwater 30.0 mm Hg)

81
Test Review
82
Classify the type of Bonding

• Fe-Cl Fe-Cr
• C-Cl H-Br
• S-O K-I

83
Classify the type of IM Force
H2 Cl2 HF HF H2 HBr HBr HI CH4 C2H6
84
Draw LDDs for

• BH3 NCl3
• CF4 C3H6
• IF3 CO3-2

85
Calculate the BP of a solution containing 120 g
C3H7OH in 250 mL of water at its BP. KBP
0.512oC/mo KFP -1.86oC/mo
86
Calculate the osmotic pressure of a solution
containing 12 gof NaOH dissolved in 50.0 mL
solution at 27oC
87
Calculate the vapor pressure of a solution
containing 12.0 g C3H8O in 14.4 mL of water at
its BP. VPsolvent 120 kPa
88
Calculate the molarity of 33.1 g of Pb(NO3)2
dissolved in 250 mL of solution.
89
Draw LDDs for
PCl3 C3H7NO NO3-1
90
Calculate the mass of lead(II)nitrate required to
make 250 mL of 0.40 M Pb(NO3)2
91
Calculate the BP of a solution containing 29.9 g
of CoBr3 dissolved in 75 mL of water. KBP
0.512oC/mo
92
Calculate the molality of a solution that is 33.1
by mass Pb(NO3)2 in water
93
Drill Calculate the osmotic pressure of 0.88 g
of CO2 in 750 mL of soln at 27oC
94
30.0 g C3H6NF was dissolved in 50.0 g C6H12O (VP
20.0 kPa) at 27oC making a 0.800 g/mL solution.
Calculate X, mo, M, p, VP.
95
180 g C3H8O was dissolved in 180 mL H2O at 27oC
making a 1.5 g/mL solution. Calculate X, mo, M,
p, VP, BP, FP.
96
A 1.2 g/cm3 aqueous solution is 20.0 by mass
NaOH at 27oC. Calculate X, mo, M, p, MP
97
Calculate the molecular mass of a covalent
compound dissolved in an aqueous solution to make
it 25 by mass when it boils at 102.048oC
98
Are there any questions on previous material?
99
Test Review
100
Classify the type of Bonding

• Fe-Cl Fe-Cr
• C-Cl H-Br
• S-O K-I

101
Classify the type of IM Force
H2 Cl2 HF HF H2 HCl HBr HI CH4 C2H6
102
Draw LDDs for

• BH3 NCl3
• CF4 C3H6
• IF3 CO3-2

103
Calculate the FP BP of a solution containing
120 g C3H7OH in 250 mL of water at its BP. KBP
0.512oC/mo KFP -1.86oC/mo
104
Drill Calculate the molarity of 33.1 g of
Pb(NO3)2 dissolved in 250 mL of solution.
105
Calculate the BP of a solution containing 29.9 g
of CoBr3 dissolved in 75 mL of water. KBP
0.512oC/mo
106
Calculate the molality of a solution that is 33.1
by mass Pb(NO3)2 in water
107
Drill Calculate the osmotic pressure of 0.88 g
of CO2 in 750 mL of soln at 27oC
108
30.0 g C3H6NF was dissolved in 50.0 g C6H12O (VP
20.0 kPa) at 27oC making a 0.800 g/mL solution.
Calculate X, mo, M, p, VP.
109
180 g C3H8O was dissolved in 180 mL H2O at 27oC
making a 1.5 g/mL solution. Calculate X, mo, M,
p, VP, BP, FP.
110
A 1.2 g/cm3 aqueous solution is 20.0 by mass
NaOH at 27oC. Calculate X, mo, M, p, MP
111
Calculate the molecular mass of a covalent
compound dissolved in an aqueous solution to make
it 25 by mass when it boils at 102.048oC
