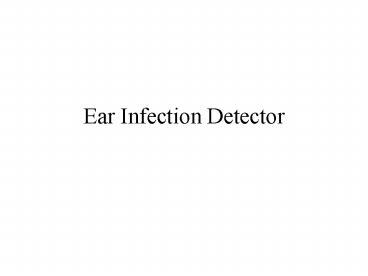

Ear Infection Detector

1
Ear Infection Detector
2
Ear Anatomy
3
Ear Infections Detectable Symptoms
Normal
Infected Redness Stiffer Ear Drum
4
Our Detection Approach

• Use optical sensor to detect redness.
• Use acoustic sensor to detect stiffened ear drum.
• Use infrared sensor to measure temperature.
• Use electronics to correlate three different
  measurements and determine likelihood of
  infection.

5
Competition EarCheck checks for ear infections
EarCheck works by injecting small jet of air and
analyzing response Only one sensor
6
(No Transcript)
7
Competition II Braun Thermoscan Thermometer
only, not ear infection detector. Probably works
with infrared detector.
8
Our Product

• Approach I
• Combine our new optical technology
• With existing acoustic sensor and ear thermometer
• Perform correlation electronically
• Obtain more accurate reading
• Approach II
• Use optical technology only for a simple
  non-invasive approach (no air jet)
• Requires simple photo-diode red-light detector
• Less expensive
• House both approaches in otoscope-like instrument.
