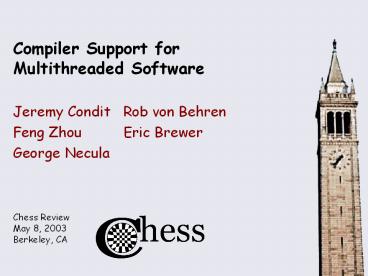

Compiler Support for Multithreaded Software

1
Compiler Support forMultithreaded Software

• Jeremy Condit Rob von Behren
• Feng Zhou Eric Brewer
• George Necula

2
Designing Concurrent Systems

• The great debate threads vs. events
• Thread model
• Each logically concurrent task is represented by
  a thread
• Modules communicate via call/return
• Each thread gets its own stack
• Event model
• Each logically concurrent task is represented by
  an event
• Modules communicate via event passing
• Event handlers unwind stack after each event

3
Conventional Wisdom

• Recent research favors event-based model
• Event handlers execute atomically
• Lower overhead for managing state
• Better scheduling and locality
• More flexible control flow
• TinyOS, SEDA, Flash,
• We argue that all of these benefits can be
  achieved in thread-based systems
• Thread systems and event systems are duals
• Duality proposed by Lauer and Needham in 1978
  (message passing vs. process-based systems)

4
The Stack Problem

• How do we limit stack space?
• Event systems stacks are empty at end of handler
• Thread systems stacks can be arbitrarily large
  at (or between) blocking points
• Old solution preallocate large stacks
• Inappropriate when memory available to each
  thread is limited
• New solution linked stack frames
• This talk!

5
Linked Stack Goals

• Limit amount of preallocated memory
• Enable stacks of arbitrary size
• Recursive functions
• Temporary buffers
• Short-lived spikes in stack size
• Provide development tools
• Existing debuggers
• Profiling tools to tune stack allocation

6
Our Options
preallocated whole stack
never preallocate
7
Instrumenting Call Sites

• Add instrumentation to some call sites
• Check for sufficient stack space
• Allocate and link new chunk if necessary
• How much space is sufficient?
• Largest amount of stack space used until another
  instrumented call site is reached
• How do we get this information?
• Analyze call graph at compile time
• Dynamic programming
• Instrumenting call site removing graph edge

8
Call Graph Analysis

• Input
• Call graph
• MaxPath parameter
• Output
• Set of edges to instrument
• Stack bound for each node
• Instrument all back edges
• Process each node in call graph, bottom-up
• For each successor
• Let bound successors bound current nodes
  stack
• If bound gt MaxPath, instrument edge
• Set nodes stack bound

9
Call Graph Example
5k
9k
2k
8k
4k
10k
1k
2k
2k
2k
2k
1k
MaxPath 10k
10
Wasted Space

• Two kinds of wasted space
• Internal unused space at the end of interior
  chunks
• External unused space at the end of the final
  chunk

11
Tuning

• Two parameters
• MaxPath maximum desired path length
• MinChunk minimum allowable chunk size
• Tradeoffs

amount of instrumentation
internal wasted space
external wasted space
MaxPath
MinChunk
12
Results Apache 2.0.44

• MaxPath 4 KB, MinChunk 8 KB
• Compile-time statistics
• 7500 call sites
• 17 instrumented external calls
• 5 instrumented internal calls
• Run-time statistics (one request)
• 1300 function calls
• 25 instrumented external calls
• instrumentation can be eliminated in 95 of cases
• 8 instrumented internal calls
• new chunk linked in 25 of cases
• 1000 instructions per request

13
Conclusions

• Threads and events are duals
• With proper compiler support, threads can perform
  just as well as events
• Threads provide a more appropriate abstraction
  for many concurrent applications
• Linked stacks can reduce stack waste
• One example of compiler support for threads
