Title: Logistics 1

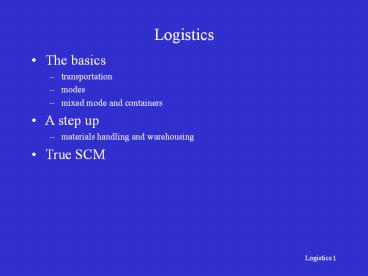

1
Logistics
  • The basics
  • transportation
  • modes
  • mixed mode and containers
  • A step up
  • materials handling and warehousing
  • True SCM

2
Step back
  • So far we have examined
  • trust
  • what we do internally
  • some of the processes related to managing our
    suppliers of materials and information
  • Logistics is then managing these flows of goods
    and information. Not only the inbound side (from
    our suppliers) but the outbound side (to our
    customers)

3
Logistics as a Source of competitive advantage
  • Sharing the load 10 million plus employees
  • What did the CEO of WalMart do before he took
    over the company?
  • Delivering the goods
  • Globalization is not possible without changes in
    logistics
  • North American companies need to expand globally
    to grow
  • UPS, Fed-EX and Yellow are logistics providers-
    doing this well is their competitive advantage
  • So what are they doing?

4
Some other key issues from articles
  • US cost of logistics 1998- 898 billion or 10.6
    of GDP / 2002 1,027 billion
  • Mixed modes and containers change shipping
    tremendously
  • Move to 3rd parties

5
Stepping forward
  • Some people look at inbound logistics separately
    from outbound logistics.
  • This often leads to treating purchasing as a cost
    center
  • This assumes that managing the flows is
    significantly different. What is contained in the
    flows may differ greatly but the flows themselves
    are similar
  • Transportation - usually defined as movement of
    goods. This is the foundation of logistics so we
    will build off of basic transportation

6
How goods actually move (modes)
  • There are five basic modes of transportation
    what are their pluses and minuses
  • Motor - basically trucks
  • Air - planes
  • Water - boats/ barges and the like
  • Rail
  • Pipeline
  • Intermodal (mixed mode) transportation is a major
    issue as well

7
Mixed mode
  • The container has significantly changed
    transportation
  • containers are 8 foot high, 8 foot wide metal
    boxes than range in length from 20 feet to 53
    feet
  • a good can be loaded into a container at a plant
    in Corvallis, taken by truck to a rail terminal
    in Eugene, placed on a train that goes to Los
    Angles, placed on a boat to Japan, unloaded from
    the boat and placed on a truck to be delivered to
    the customer.
  • never unloaded
  • time to change modes of transport is minimal
  • Why does this matter so much ?

8
Mixed mode continued
  • Containers, piggy back and other innovations have
    enabled mixed mode transport which makes
    transportation a more strategic function
  • can have the access of trucks and the cost of
    trains
  • can reduce costs of long hauls increases range
    of possible suppliers
  • if we use a single logistics provider can get
    from the middle of Africa to the Middle of
    America using a single relationship
  • By improving time and place utility (usually at
    lower costs) transport starts to become more than
    a cost center

9
Transportation in a Post 9/11 world
  • Transportation safety is not just an airline
    industry issue
  • You might have noticed trucks with special
    license plates (trusted carrier) or plastic seals
    on their doors.
  • Containers are both easier to control (only
    opened once) and harder to control (out of sight
    for longer periods of time- arrive in bunches
    large volume).
  • Food safety is the probably the area we will deal
    with next the lettuce story

10
Mixed modes have lead to the rise of 3PL
  • As we move away from using inventory logistics
    must be much more precise
  • Moving stuff 10 of costs
  • Transportation has traditionally been very
    fragmented but why should a company spend lots
    of time coordinating various shippers when they
    can outsource this?
  • How many companies get their competitive
    advantage from logistics?
  • How many put their competitive advantage at risk
    if logistics is not done well?

11
Description of typical 3Pl relationship
  • Penske, Yellow Freight, and dozens of other large
    transport companies offer these services.
  • This also occurs in the movement of information
  • Though at this point most of the companies
    providing integrated data management are trying
    to perform all services

12
Physical functions of transportation beyond
movement
  • All of the following are done to provide time and
    place utility.
  • Sorting out Physically separating a homogeneous
    subgroup from a heterogeneous population of items
  • ( e.g. grading, separating by sizes, or other
    physical characteristics)
  • lumber / paper / beef
  • Accumulating Combining homogeneous stocks of
    products or materials into larger quantities
  • Allocating (breaking bulk) Dividing up stocks of
    homogeneous items into smaller quantities
  • break truckloads or carload shipments into
    smaller local shipments
  • Assorting Mixing heterogeneous items into
    assortments needed by customers and end users

13
What are we basically trying to achieve ?
  • Efficient flow of goods
  • Small shipments travel short distances
  • Largest shipment possible over long distances
  • Minimal number of touches
  • Minimal amount of materials stored
  • Effective flow of goods
  • On time delivery
  • Deliver in the quantities the customer wants
  • Right materials stored

14
Looking ahead
  • Our discussion to this point is about
    transportation. One of the key notions of
    logistics is that it adds value. Containers and
    mixed mode transport are part of moving toward a
    view of logistics.
  • note US bombers in Afghanistan taking off without
    targets
  • Reexamining how we store goods is the next step.
  • Much like transportation , warehousing has become
    much more sophisticated and is now seen as part
    of the potential for logistics to add value.

15
Warehouses
  • Go back to our physical functions of logistics.
    In general the processes of sorting,
    accumulating, allocating and assorting occur in a
    warehouse.
  • A warehouse is anyplace where goods are stored.
  • Note that we can have virtual warehouses (data
    bases)
  • Services tend to store all sorts of facilitating
    goods
  • Distribution centers are generally warehouses
    where stuff sits for very little time and other
    value adding activities occur.
  • All DCs are warehouses but not all warehouses
    are DCs

16
There are a wide range of warehousing issues
  • First is where in the supply chain do we wish to
    hold materials (or data).
  • We do not want to duplicate these activities (in
    general)
  • In addition, we need to consider the physical
    location of the facility.
  • There are also issue of size, ownership,
    management and the like to consider.
  • In fact this is a major issue for any supply
    chain that needs to handle a flow of goods.
  • However, our focus is at a more basic level

17
Basic purposes of warehouses storage
  • This is the most traditional view of a warehouse
    - a place to store stuff
  • Temporary storage
  • waiting for a full truckload (accumulating)
  • waiting for other items in customer order
    (assorting)
  • Semi-permanent storage
  • buffers or safety stock
  • just in case inventory
  • often results from achieving economies of scale
  • most supply chains try and limit this as much as
    possible (preferable eliminate)
  • Abbot Aluminum?

18
Basic purposes of warehouses movement
  • Types of movement
  • receiving of goods from other chain members
  • inspection, pricing, assembling, ect.
  • transfer - moving goods through the warehouse to
    storage or some value adding activity
  • order picking - retrieving goods from the
    warehouse
  • shipping
  • cross docking
  • discuss if needed
  • movement has been the focus of many improvement
    efforts - think of JIT and unnecessary movement
    or storage

19
Basic purposes of warehouses information transfer
  • Warehouses tended to equal paper
  • Paper tends to indicate what?
  • The first use of information in warehousing was
    automation
  • AS/RS systems
  • faster / cheaper (fewer people) / more accurate /
    better service etc.
  • But they are expensive
  • There is also an old rule about automating a bad
    process
  • Steelcases warehouses
  • Bar coding and now RFID
  • if we can do it in the warehouse can we do it for
    the entire supply chain ?

20
Logistics and information
  • When we look at our supply chain models there are
    two sets of flows- the physical flows we have
    mainly focused on and equally important
    information flows.
  • It is often the management of this second set of
    flows that separates the well run supply chains
    from the rest of the pack
  • The computer has made this much easier
  • possible to eliminate paper
  • eliminate transit time for paper
  • eliminate redundant entry
  • so we are faster and more accurate at a lower
    cost

21
Types of info in a supply chain
  • EDI for purchasing
  • Demand, order quantities, due dates, deliveries,
    and so on.
  • Truck information linkages
  • Bar coding and scanning for tracking in
    warehouses and production next RFID
  • CAD / CAM systems linking design and production
  • End customer information
  • Hondas web site collects info on colors, models,
    options and the like
  • What else ?

22
Key point on Information
  • Entire supply chain needs to be working off the
    same information
  • Would bullwhips occur if third tier suppliers had
    end customer forecasts ?
  • If the company at the end of the chain is
    planning a marketing promotion their suppliers
    will perform better if given enough lead time
    (Volvo example)
  • If a supplier develops a new process that might
    be useful to others there needs to be a way to
    share this information
  • If customers desires change the entire chain
    needs to react (preferably be ahead of the change)

23
More information
  • There are many experts who can design an
    information system for you (we even train them
    here)
  • But it is the managerial decisions that determine
    how well the system will work
  • What information do we include?
  • What form is that information in?
  • Who has access?
  • Really it all comes down to the first thing we
    talked about - trust and relationships

24
Information sharing
  • Every person who researches supply chain
    management finds the following
  • there are many tactical issue that effect success
    but it is the relationships that make or break a
    chain
  • this is mainly trust
  • there are also personality issues here - some
    mangers have all by themselves screwed up a
    supply chain
  • Boyds boss
  • With all of the information we have covered the
    companies who excel are those that understand the
    issues of trust and information sharing.

25
Logistics conclusions
  • There are many physical elements to consider in
    the design of a logistical system (flows through
    supply chain)
  • It is the intangible flows of information that
    are the real make or break issues.
  • Do not ignore flows back from end customer
  • Transportation become logistics when we start to
    include information flows. Logistics becomes SCM
    when we understand the need for these flows to be
    available to the entire chain.
  • For most supply chains this is all conjecture-
    they are still getting internal chains sorted
    out.
  • Recent HBR article notes that suppliers are often
    better partners than members of your own
    organization - less fighting over resources
    (trust / global view / etc.)
Write a Comment
User Comments (0)
About PowerShow.com
