Intro

1

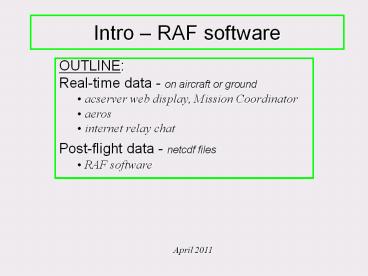

Intro RAF software

• OUTLINE
• Real-time data - on aircraft or ground
• acserver web display, Mission Coordinator
• aeros
• internet relay chat
• Post-flight data - netcdf files
• RAF software

April 2011
2
Mission Coordinator display on ground
3
http//www.eol.ucar.edu/cgi-bin/flight_data/platfo
rm.pl
4
Mission Coordinator display web browser on
aircraft
Avoid browsing to sites off the airplane! ?
Satcom is expensive
5
PREDICT project, dropsonde pattern
IR satellite image -50C blue-60C green-70C
red
triangle waypoint flight track lightning ATC
boundaries
6
Video forward, left right
7
internet relay chat aircraft ?? satcom ?? ground
run from web page
8
internet relay chat aircraft ?? satcom ??
ground
or download install xchat client Password
connect to GV
9
/nick yourName-locationyou need server ident and
password use care with messages because text is
logged
10
front of aircraft
Display laptop on network at each station
11
Data display on GV or C-130, aerosplot and list
gt 250 variables
demo will be shown at end of presentation
12
Data display on the ground, aeros
13
using satcom relay to ground, aeros can plot
list gt 20 variables
14
aeros - configuration files
15
Data files - netcdf

• netcdf self-documenting, multi-variable format.
  Analysis software IDL, MatLab, Origin, ..
• Data files will be available after each flight
  archived by EOL for project investigators
• RAF provides free software for display to
  convert between ASCII and netcdf

16
More?http//www.eol.ucar.edu/

• aeros linux, Mac, Windows
• free distribution other RAF software
• http//www.eol.ucar.edu/data/software/downloadcent
  er
• HIAPER Investigators Handbook

17
(No Transcript)
18
aeros demo
19
front of aircraft
Display laptops at each station
20
CDP 2D-C wing mounted probes
21
photos
right wing
left wing

• uhsas

MTP
RICE
Fast 2D-C
King hot-wire
CDP
