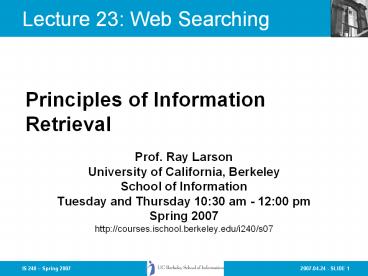

Lecture 23 Web Searching
Principles of Information Retrieval

• Prof. Ray Larson
• University of California, Berkeley
• School of Information
• Tuesday and Thursday 1030 am - 1200 pm
• Spring 2007
• http//courses.ischool.berkeley.edu/i240/s07

2
Mini-TREC

• Proposed Schedule
• February 15 Database and previous Queries
• February 27 report on system acquisition and
  setup
• March 8, New Queries for testing
• April 19, Results due (Next Thursday)
• April 24 or 26, Results and system rankings
• May 8 Group reports and discussion

3
All Minitrec Runs
4
All Groups Best Runs
5
All Groups Best Runs RRL
6
Results Data

• trec_eval runs for each submitted file have been
  put into a new directory called RESULTS in your
  group directories
• The trec_eval parameters used for these runs are
  -o for the .res files and -o q for the
  .resq files. The .dat files contain the
  recall level and precision values used for the
  preceding plots
• The qrels for the Mini-TREC queries are available
  now in the /projects/i240 directory as
  MINI_TREC_QRELS

7
Mini-TREC Reports

• In-Class Presentations May 8th
• Written report due May 8th (Last day of Class)
  4-5 pages
• Content
• System description
• What approach/modifications were taken?
• results of official submissions (see RESULTS)
• results of post-runs new runs with results
  using MINI_TREC_QRELS and trec_eval

8
Term Paper

• Should be about 8-15 pages on
• some area of IR research (or practice) that you
  are interested in and want to study further
• Experimental tests of systems or IR algorithms
• Build an IR system, test it, and describe the
  system and its performance
• Due May 8th (Last day of class)

9
Today

• Review
• Web Crawling and Search Issues
• Web Search Engines and Algorithms
• Web Search Processing
• Parallel Architectures (Inktomi - Brewer)
• Cheshire III Design

Credit for some of the slides in this lecture
goes to Marti Hearst and Eric Brewer
10
Web Crawlers

• How do the web search engines get all of the
  items they index?
• More precisely
• Put a set of known sites on a queue
• Repeat the following until the queue is empty
• Take the first page off of the queue
• If this page has not yet been processed
• Record the information found on this page
• Positions of words, links going out, etc
• Add each link on the current page to the queue
• Record that this page has been processed
• In what order should the links be followed?

11
Page Visit Order

• Animated examples of breadth-first vs depth-first
  search on trees
• http//www.rci.rutgers.edu/cfs/472_html/AI_SEARCH
  /ExhaustiveSearch.html

12
Sites Are Complex Graphs, Not Just Trees
13
Web Crawling Issues

• Keep out signs
• A file called robots.txt tells the crawler which
  directories are off limits
• Freshness
• Figure out which pages change often
• Recrawl these often
• Duplicates, virtual hosts, etc
• Convert page contents with a hash function
• Compare new pages to the hash table
• Lots of problems
• Server unavailable
• Incorrect html
• Missing links
• Infinite loops
• Web crawling is difficult to do robustly!

14
Search Engines

• Crawling
• Indexing
• Querying

15
Web Search Engine Layers
From description of the FAST search engine, by
Knut Risvikhttp//www.infonortics.com/searchengin
es/sh00/risvik_files/frame.htm
16
Standard Web Search Engine Architecture
Check for duplicates, store the documents
DocIds
crawl the web
user query
create an inverted index
Inverted index
Search engine servers
Show results To user
17
More detailed architecture,from Brin Page
98.Only covers the preprocessing in detail, not
the query serving.
18
Indexes for Web Search Engines

• Inverted indexes are still used, even though the
  web is so huge
• Most current web search systems partition the
  indexes across different machines
• Each machine handles different parts of the data
  (Google uses thousands of PC-class processors and
  keeps most things in main memory)
• Other systems duplicate the data across many
  machines
• Queries are distributed among the machines
• Most do a combination of these

19
Search Engine Querying
In this example, the data for the pages is
partitioned across machines. Additionally, each
partition is allocated multiple machines to
handle the queries. Each row can handle 120
queries per second Each column can handle 7M
pages To handle more queries, add another row.
From description of the FAST search engine, by
Knut Risvikhttp//www.infonortics.com/searchengin
es/sh00/risvik_files/frame.htm
20
Querying Cascading Allocation of CPUs

• A variation on this that produces a cost-savings
• Put high-quality/common pages on many machines
• Put lower quality/less common pages on fewer
  machines
• Query goes to high quality machines first
• If no hits found there, go to other machines

21
Google

• Google maintains (probably) the worlds largest
  Linux cluster (over 15,000 servers)
• These are partitioned between index servers and
  page servers
• Index servers resolve the queries (massively
  parallel processing)
• Page servers deliver the results of the queries
• Over 8 Billion web pages are indexed and served
  by Google

22
Search Engine Indexes

• Starting Points for Users include
• Manually compiled lists
• Directories
• Page popularity
• Frequently visited pages (in general)
• Frequently visited pages as a result of a query
• Link co-citation
• Which sites are linked to by other sites?

23
Starting Points What is Really Being Used?

• Todays search engines combine these methods in
  various ways
• Integration of Directories
• Today most web search engines integrate
  categories into the results listings
• Lycos, MSN, Google
• Link analysis
• Google uses it others are also using it
• Words on the links seems to be especially useful
• Page popularity
• Many use DirectHits popularity rankings

24
Web Page Ranking

• Varies by search engine
• Pretty messy in many cases
• Details usually proprietary and fluctuating
• Combining subsets of
• Term frequencies
• Term proximities
• Term position (title, top of page, etc)
• Term characteristics (boldface, capitalized, etc)
• Link analysis information
• Category information
• Popularity information

25
Ranking Hearst 96

• Proximity search can help get high-precision
  results if gt1 term
• Combine Boolean and passage-level proximity
• Proves significant improvements when retrieving
  top 5, 10, 20, 30 documents
• Results reproduced by Mitra et al. 98
• Google uses something similar

26
Ranking Link Analysis

• Assumptions
• If the pages pointing to this page are good, then
  this is also a good page
• The words on the links pointing to this page are
  useful indicators of what this page is about
• References Page et al. 98, Kleinberg 98

27
Ranking Link Analysis

• Why does this work?
• The official Toyota site will be linked to by
  lots of other official (or high-quality) sites
• The best Toyota fan-club site probably also has
  many links pointing to it
• Less high-quality sites do not have as many
  high-quality sites linking to them

28
Ranking PageRank

• Google uses the PageRank
• We assume page A has pages T1...Tn which point to
  it (i.e., are citations). The parameter d is a
  damping factor which can be set between 0 and 1.
  d is usually set to 0.85. C(A) is defined as the
  number of links going out of page A. The PageRank
  of a page A is given as follows
• PR(A) (1-d) d (PR(T1)/C(T1) ...
  PR(Tn)/C(Tn))
• Note that the PageRanks form a probability
  distribution over web pages, so the sum of all
  web pages' PageRanks will be one

29
PageRank
Note these are not real PageRanks, since they
include values gt 1
T3 Pr1
X2
X1
T1 Pr.725
T4 Pr1
A Pr4.2544375
T2 Pr1
T5 Pr1
T8 Pr2.46625
T7 Pr1
T6 Pr1
30
PageRank

• Similar to calculations used in scientific
  citation analysis (e.g., Garfield et al.) and
  social network analysis (e.g., Waserman et al.)
• Similar to other work on ranking (e.g., the hubs
  and authorities of Kleinberg et al.)
• How is Amazon similar to Google in terms of the
  basic insights and techniques of PageRank?
• How could PageRank be applied to other problems
  and domains?

31
Today

• Review
• Web Crawling and Search Issues
• Web Search Engines and Algorithms
• Web Search Processing
• Parallel Architectures (Inktomi Eric Brewer)
• Cheshire III Design

Credit for some of the slides in this lecture
goes to Marti Hearst and Eric Brewer
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
Grid-based Search and Data Mining Using Cheshire3
Presented by Ray R. Larson University of
California, Berkeley School of Information

• In collaboration with
• Robert Sanderson
• University of Liverpool
• Department of Computer Science

53
Overview

• The Grid, Text Mining and Digital Libraries
• Grid Architecture
• Grid IR Issues
• Cheshire3 Bringing Search to Grid-Based Digital
  Libraries
• Overview
• Grid Experiments
• Cheshire3 Architecture
• Distributed Workflows

54
Grid Architecture -- (Dr. Eric Yen, Academia
Sinica, Taiwan.)
..
High energy physics
Chemical Engineering
Climate
Astrophysics
Cosmology
Combustion
Applications Application Toolkits Grid Service
s Grid Fabric
..
Remote Computing
Remote Visualization
Collaboratories
Remote sensors
Data Grid
Portals
Grid middleware
Protocols, authentication, policy,
instrumentation, Resource management, discovery,
events, etc.
Storage, networks, computers, display devices,
etc. and their associated local services
55
Grid Architecture (ECAI/AS Grid Digital Library
Workshop)
Digital Libraries
High energy physics
Humanities computing
Bio-Medical
Chemical Engineering
Astrophysics
Climate
Cosmology
Combustion

Applications Application Toolkits Grid Service
s Grid Fabric

Text Mining
Remote Computing
Remote Visualization
Metadata management
Search Retrieval
Collaboratories
Remote sensors
Data Grid
Portals
Grid middleware
Protocols, authentication, policy,
instrumentation, Resource management, discovery,
events, etc.
Storage, networks, computers, display devices,
etc. and their associated local services
56
Grid-Based Digital Libraries

• Large-scale distributed storage requirements and
  technologies
• Organizing distributed digital collections
• Shared Metadata standards and requirements
• Managing distributed digital collections
• Security and access control
• Collection Replication and backup
• Distributed Information Retrieval issues and
  algorithms

57
Grid IR Issues

• Want to preserve the same retrieval performance
  (precision/recall) while hopefully increasing
  efficiency (I.e. speed)
• Very large-scale distribution of resources is a
  challenge for sub-second retrieval
• Different from most other typical Grid processes,
  IR is potentially less computing intensive and
  more data intensive
• In many ways Grid IR replicates the process (and
  problems) of metasearch or distributed search

58
Introduction

• Cheshire History
• Developed at UC Berkeley originally
• Solution for library data (C1), then SGML (C2),
  then XML
• Monolithic applications for indexing and
  retrieval server in C TCL scripting
• Cheshire3
• Developed at Liverpool, plus Berkeley
• XML, Unicode, Grid scalable Standards based
• Object Oriented Framework
• Easy to develop and extend in Python

59
Introduction

• Today
• Version 0.9.4
• Mostly stable, but needs thorough QA and docs
• Grid, NLP and Classification algorithms
  integrated
• Near Future
• June Version 1.0
• Further DM/TM integration, docs, unit tests,
  stability
• December Version 1.1
• Grid out-of-the-box, configuration GUI

60
Context

• Environmental Requirements
• Very Large scale information systems
• Terabyte scale (Data Grid)
• Computationally expensive processes (Comp. Grid)
• Digital Preservation
• Analysis of data, not just retrieval (Data/Text
  Mining)
• Ease of Extensibility, Customizability (Python)
• Open Source
• Integrate not Re-implement
• "Web 2.0" interactivity and dynamic interfaces

61
Context
62
Cheshire3 Object Model
Protocol Handler
Record
63
Object Configuration

• One XML 'record' per non-data object
• Very simple base schema, with extensions as
  needed
• Identifiers for objects unique within a
  context(e.g., unique at individual database
  level, but not necessarily between all databases)
• Allows workflows to reference by identifier but
  act appropriately within different contexts.
• Allows multiple administrators to define objects
  without reference to each other

64
Grid

• Focus on ingest, not discovery (yet)
• Instantiate architecture on every node
• Assign one node as master, rest as slaves. Master
  then divides the processing as appropriate.
• Calls between slaves possible
• Calls as small, simple as possible (objectIdenti
  fier, functionName, arguments)
• Typically('workflow-id', 'process',
  'document-id')

65
Grid Architecture
Master Task
(workflow, process, document)
(workflow, process, document)
fetch document
fetch document
Data Grid
document
document
Slave Task 1
Slave Task N
extracted data
extracted data
GPFS Temporary Storage
66
Grid Architecture - Phase 2
Master Task
(index, load)
(index, load)
store index
store index
Data Grid
Slave Task 1
Slave Task N
fetch extracted data
fetch extracted data
GPFS Temporary Storage
67
Workflow Objects

• Written as XML within the configuration record.
• Rewrites and compiles to Python code on object
  instantiation
• Current instructions
• object
• assign
• fork
• for-each
• break/continue
• try/except/raise
• return
• log ( send text to default logger object)
• Yes, no if!

68
Workflow example
ltsubConfig idbuildSingleWorkflowgt ltobjectTypegt
workflow.SimpleWorkflowlt/objectTypegt ltworkflowgt
ltobject typeworkflow refPreParserWorkflow/gt
lttrygt ltobject typeparser
refNsSaxParser/gt lt/trygt ltexceptgt
ltloggtUnparsable Recordlt/loggt ltraise/gt
lt/exceptgt ltobject typerecordStore
functioncreate_record/gt ltobject
typedatabase functionadd_record/gt ltobject
typedatabase functionindex_record/gt
ltloggtLoaded Record input.idlt/loggt lt/workflowgt
lt/subConfiggt
69
Text Mining

• Integration of Natural Language Processing tools
• Including
• Part of Speech taggers (noun, verb,
  adjective,...)
• Phrase Extraction
• Deep Parsing (subject, verb, object,
  preposition,...)
• Linguistic Stemming (is/be fairy/fairy vs is/is
  fairy/fairi)
• Planned Information Extraction tools

70
Data Mining

• Integration of toolkits difficult unless they
  support sparse vectors as input - text is high
  dimensional, but has lots of zeroes
• Focus on automatic classification for predefined
  categories rather than clustering
• Algorithms integrated/implemented
• Perceptron, Neural Network (pure python)
• Naïve Bayes (pure python)
• SVM (libsvm integrated with python wrapper)
• Classification Association Rule Mining (Java)

71
Data Mining

• Modelled as multi-stage PreParser object
  (training phase, prediction phase)
• Plus need for AccumulatingDocumentFactory to
  merge document vectors together into single
  output for training some algorithms (e.g., SVM)
• Prediction phase attaches metadata (predicted
  class) to document object, which can be stored in
  DocumentStore
• Document vectors generated per index per
  document, so integrated NLP document
  normalization for free

72
Data Mining Text Mining

• Testing integrated environment with 500,000
  medline abstracts, using various NLP tools,
  classification algorithms, and evaluation
  strategies.
• Computational grid for distributing expensive NLP
  analysis
• Results show better accuracy with fewer
  attributes

73
Applications (1)

• Automated Collection Strength Analysis
• Primary aim Test if data mining techniques
  could be used to develop a coverage map of items
  available in the London libraries.
• The strengths within the library collections were
  automatically determined through enrichment and
  analysis of bibliographic level metadata records.

• This involved very large scale processing of
  records to
• Deduplicate millions of records
• Enrich deduplicated records against database of
  45 million
• Automatically reclassify enriched records using
  machine learning processes (Naïve Bayes)

74
Applications (1)

• Data mining enhances collection mapping
  strategies by making a larger proportion of the
  data usable, by discovering hidden relationships
  between textual subjects and hierarchically based
  classification systems.
• The graph shows the comparison of numbers of
  books classified in the domain of Psychology
  originally and after enhancement using data
  mining

75
Applications (2)

• Assessing the Grade Level of NSDL Education
  Material
• The National Science Digital Library has
  assembled a collection of URLs that point to
  educational material for scientific disciplines
  for all grade levels. These are harvested into
  the SRB data grid.
• Working with SDSC we assessed the grade-level
  relevance by examining the vocabulary used in the
  material present at each registered URL.
• We determined the vocabulary-based grade-level
  with the Flesch-Kincaid grade level assessment.
  The domain of each website was then determined
  using data mining techniques (TF-IDF derived fast
  domain classifier).
• This processing was done on the Teragrid cluster
  at SDSC.

76
Cheshire3 Grid Tests

• Running on an 30 processor cluster in Liverpool
  using PVM (parallel virtual machine)
• Using 16 processors with one master and 22
  slave processes we were able to parse and index
  MARC data at about 13000 records per second
• On a similar setup 610 Mb of TEI data can be
  parsed and indexed in seconds

77
SRB and SDSC Experiments

• We are working with SDSC to include SRB support
• We are planning to continue working with SDSC and
  to run further evaluations using the TeraGrid
  server(s) through a small grant for 30000 CPU
  hours
• SDSC's TeraGrid cluster currently consists of
  256 IBM cluster nodes, each with dual 1.5 GHz
  Intel Itanium 2 processors, for a peak
  performance of 3.1 teraflops. The nodes are
  equipped with four gigabytes (GBs) of physical
  memory per node. The cluster is running SuSE
  Linux and is using Myricom's Myrinet cluster
  interconnect network.
• Planned large-scale test collections include
  NSDL, the NARA repository, CiteSeer and the
  million books collections of the Internet
  Archive

78
Conclusions

• Scalable Grid-Based digital library services can
  be created and provide support for very large
  collections with improved efficiency
• The Cheshire3 IR and DL architecture can provide
  Grid (or single processor) services for
  next-generation DLs
• Available as open source via
• http//cheshire3.sourceforge.net or
• http//www.cheshire3.org/
