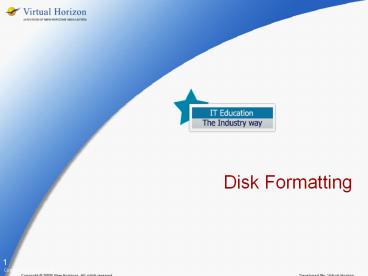

Disk Formatting

1
Disk Formatting
2
Disk Formatting

• Two formatting procedures required before you can
  write user data to a disk
• Physical or low-level formatting
• Logical or high-level formatting

3
Steps for storing data

• 1. Low-Level Formatting Manufacturer
• Low-level formatting is the process of
  outlining the positions of the tracks and sectors
  on the hard disk, and writing the control
  structures that define where the tracks and
  sectors are. This is often called a "true"
  formatting operation, because it really creates
  the physical format that defines where the data
  is stored on the disk.

4
Low-Level Formatting

• This is the basic setup of the disk layout
• Dividing the disks tracks into a specific amount
  of sectors
• Creating header trailer information
• Lays basic ground work of the formatting

5
High-Level Formatting

• High-level formatting is the process of writing
  the file system structures on the disk that let
  the disk be used for storing programs and data.
• OS writes the structures necessary for managing
  files data on the disk

6
Partitioning

• Creating a partition on a hard drive enables it
  to support separate file systems, each in its own
  partition
• Each file system can then use its own method to
  allocate file space in logical units called
  clusters or allocation units

7
Common file systems used by OS

• FAT 16 (File Allocation table 16-bit)
• FAT 32 (File Allocation Table 32-bit)
• NTFS (NT File System)

8
Data structures

• Enable OS to
• Manage the space on the disk
• Keep track of files
• Manage defective areas so they dont cause
  problems

9
High-level formatting

• Creating of the table of contents
• Low-level formatting is the physical formatting
  of the drive

10
File systems

• In this section, it is important to differentiate
  between the FAT file system and the file
  allocation table (FAT).
• FAT is the name of the file system used by DOS
  operating systems (DOS and Windows 95, as well as
  Windows NT and OS/2 which support it).
• Operating system Associated file system DOS
  FAT16Windows XPNTFS Windows 98 FAT32Windows
  95FAT16 - FAT32 (for version OSR2)Windows
  NTNTFSOS/2HPFSLinuxLinux Ext2, Linux Ext3

11
Master Boot Record or MBR

• The boot sector (called the Master Boot Record or
  MBR) is the first sector of a hard drive
  (cylinder 0, head 0, sector 1), it contains the
  main partition table and the code, called the
  boot loader, which, when loaded into memory, will
  allow the system to boot up.

12
The Expanding Windows Family
Windows 2000 series
Windows 9x
Windows XP
13
Microsoft Windows 98

• Introduced in 1998
• The first version of Windows to take advantage of
  Plug and Play technology ( H/W meeting the plug
  and play requirements is automatically detected
  and configured by the O.S after installation)
• Introduced a new generation of support tools
  (maintenance wizard that allows users to schedule
  automatic execution of disk defragmentation and
  other routine)
• Closely integrated the browser for the Internet
  with the operating system (OS)

14
Microsoft Windows Millennium Edition (Me)

• Introduced in the third quarter of 2000
• Designed for home and general office use
• It continuous the trend in windows development
  toward improved ease of use, ease of maintenance,
  and support for the newest PC H/W.
• Closely linked to the Internet
• Includes several new features and improvements ,

• Hardware requirements geared to the typical home
  PC
• Can be installed by the average end user.

15
Microsoft Windows NT

• OS designed for power users ( using computers for
  scientific and technical applications)
• Has a completely different OS than Windows 9x (
  faster performance, advanced security, ability to
  operate with a number of different processor
  families).
• Available in Workstation and several Server
  editions
• Microsoft Windows NT 3.1 released in 1993 and
  Microsoft Windows NT 3.51 in 1995
• Microsoft Windows NT 4.0 released in 1996
  incorporated an interface very similar to that of
  Windows 95

16
Microsoft Windows 2000

• successor to Windows NT
• Windows 2000 combines the best of windows 98 and
  windows NT.
• It offers and extends the multiprocessor support
  , advanced security and administration tools,
  NTFS file system.
• Family of four products
• Windows 2000 Professional
• Windows 2000 Server
• Windows 2000 Advanced Server
• Windows 2000 Datacenter Server

17
- the desktop version of the this O.S- designed
for the single user.- It Supports dual CPU.-
NTFS5 support.
Windows 2000 Professional
NTFS5
Windows 2000 server - replacing windows NT
server.- it extends SMP (symmetric
multiprocessing) to 4 CPUs per machine.- It
adds support for active directory service.(check
the website)- It offers file, print and web
services in networks.
18
Windows 2000 Datacenter server
- The most advanced networking platform offered
by Microsoft.- designed for large data
warehouse, advanced scientific and engineering
applications .
19
System Requirements Compared
20
System Configuration Considerations

• The amount of random access memory (RAM) and
  processing power needed depend on the system
  usage.
• A graphics adapter and RAM improves the display
  performance.
• You need sufficient hard disk drive space for the
  OS, applications, and upgrades.

21
Plan the Installation

• Windows 98 and Windows 2000 have automated setup
  programs.
• You should follow a checklist during setup for
  optimal results.
• Installation is complete when the system is tune
  (song), all hardware is working, and applications
  are ready to use.

22
Installation Planning Overview

1. Decide on the boot methods.
2. Confirm hardware requirements and compatibility.
3. Choose between an upgrade or a clean install.
4. Back up data and key files.
5. Remove or disable conflicts and verify existing
   settings.
6. Prepare the hard disk drive and file system.
7. Partition the hard disk drive with fdisk.

23
Decide on the Boot Methods

• More than one OS can be installed on the same
  computer.
• Dual boot installations require you to complete
  all setup steps for each OS.
• Ensure that one installation doesnt damage the
  other, that file systems are compatible, and that
  all hardware devices and software required by
  each O.S are properly accessible.
• You should draw up a compatibility list and note
  special requirements.
• Installation of Windows over existing Linux
  corrupt the Linux Boot Loader

24
Windows 2000 Dual Boot Considerations

• Each OS must reside on a different partition.
• Applications must be installed on each OS.
• When setting up either an MS-DOS or Windows 95
  and Windows 2000 Professional dual boot system,
  Windows 2000 Professional must be installed last.
• If you are using a dual boot machine in a windows
  NT domain or windows 2000 Active directory
  network, each OS must have its own machine name
  in a domain environment.

25
Windows 98 Dual Boot Considerations

• Drive C must be a FAT16 partition and include
  enough free space for the Windows 98
  installation.
• The two OSs must reside in different partitions
  or on different hard disks.
• Dual boot systems combining Windows 98 and
  Windows NT are not recommended because the two
  O.Ss do not use the same registry settings or
  device drivers .
• Dual booting Windows 98 and Windows 95 is not
  possible because both O.S use the same boot file
  and the second installation will overwrite the
  first.
• Windows 98 cannot access files on NT file system
  (NTFS) partitions, and Windows NT cannot access
  files on FAT32 drives.

26
Confirm Hardware Requirements and Compatibility

• Ensure that system components meet or exceed
  system requirements.
• Choose hardware from the hardware compatibility
  list for Windows 2000.
• http//support.microsoft.com/kb/131303 (2000)
• http//www.microsoft.com/whdc/hcl/default.mspx
  (XP)
• Choose hardware that is certified to work with
  Windows 98 and Windows Me.

27
Update Firmware or Components

• Check the system basic input/output system (BIOS)
  and update it if necessary before installation.
• BIOS updates can reduce problems and increase
  performance.
• http//h18023.www1.hp.com/support/files/server/us/
  romflash.html

28
Choose Between an Upgrade or a Clean Install

• A clean install is done on a new or newly
  formatted hard disk.
• An upgrade adds new components and updates
  existing ones.
• The /CHECKUPGRADEONLY option performs a dry run
  install and reports any possible conflicts.
  (window 2000)

29
Record Information and Back Up Data and Key Files

• Create a written record of system configuration
  and network settings.
• Back up all configuration files and custom
  Registry entries.
• When performing an upgrade from Windows 95, use
  Device Manager or Windows NT Diagnostics to print
  a report of all device and system configurations.
• How to print the system settings in Window XP?
• Back up all data files, batch files, and user
  profile files.

30
Remove or Disable Conflicts and Verify Existing
Settings

• Antivirus programs, third-party memory managers,
  terminate-and-stay-resident programs (TSRs), and
  legacy 16-bit drivers could interfere with the
  setup program.
• You should ensure that third-party disk
  partitioning software can be used with the
  version of Microsoft Windows you are installing.
• When upgrading an OS with CONFIG.SYS and
  AUTOEXEC.BAT, you should remove any unwanted
  16-bit or legacy entries.
• Upgrades work best when you upgrade in the same
  product series.

31
Prepare the Hard Disk Drive and File System

• If the primary drive is already partitioned using
  the desired file system, you can proceed to the
  OS setup.
• If you will use FAT16 or FAT32 and need to create
  or change partitions, you must use the fdisk
  utility to prepare the drive.
• Fdisk can delete all data on the disk, so back up
  data first.
• No third-party disk management utilities should
  have been used to partition the drive.

32
Partition the Hard Disk Drive with Fdisk

• Windows 98, Windows 95, and all versions of
  MS-DOS provide fdisk.
• You should use the same fdisk version as the OS
  you are installing.
• FDISK is the command you use to run the fdisk
  utility.
• To enable FAT32, you must answer Yes to enabling
  large drive support.
• Fdisk options include creating and deleting a
  partition, setting the active partition,
  displaying partition information, and choosing a
  drive.

33
Using FdiskStep-By-Step

• Display partition information to verify that you
  are on the proper drive.
• Delete any nonDOS partition.
• Delete extraneous logical drives in the extended
  MS-DOS partition.
• Delete the extended partition.
• Delete the primary DOS partition.
• Mark a partition as the primary partition and set
  it as active.
• Reboot the system, and then format the partition.


34
Introduction to Windows XPProfessional

• Prerequisites for installing Windows XP
  Professional.
• Installing Windows XP Professional.

35
Prerequisites for Installing Windows XP
Professional

• Check hardware requirements.
• Check hardware compatibility.
• Check hardware configuration.
• Test workstation hardware.

36
Check Hardware Requirements

• The minimum requirements for installing Windows
  XP Professional include
• An Intel Pentium/Celeron family or AMD
  K6/Athalon/Duron family 233 MHz processor.
• 64 MB of RAM.
• At least one hard disk where the systemroot
  (usually C\WINNT) can be located on a partition.
• At least 1.5 GB of hard disk space.

37
Check Hardware Requirements

• The recommended requirements for installing
  Windows XP Professional include
• A PC with a 300 MHz (single or dual) processor.
• 128 MB of RAM.

38
Check Hardware Compatibility

• The Windows XP Professional installation CD,
  running on an upgradeable Windows version,
  includes options to check for system
  compatibility.
• It is essential that the service packs for
  Windows NT 4.0 Workstation or Windows 2000
  Professional are installed, if XP is upgraded
  from either of these operating systems.

Service pack is an update to the operating system
made available by a Microsoft
39
Check Hardware Compatibility
Windows XP compatibility verification option
40
Check Hardware Compatibility
Windows XP automatic compatibility verification
option
41
Check Hardware Compatibility

• Compatibility check using Web site
• The Microsoft Web site provides users with a
  Hardware Compatibility List (HCL) for the system.
• It is essential to check all the hardware in the
  system prior to installing Windows XP
  Professional.

42
Check Hardware Configuration

• Microsoft recommends a CD-ROM or DVD drive for
  installations.
• A super VGA display adapter that supports an
  800x600 resolution, and the most recent version
  of the workstation operating system software is
  also required.

43
Check Hardware Configuration

• Microsoft also recommends a mouse or any other
  pointing device.
• A high-density 3-½ inch floppy drive is required
  if floppy disks are used for installation.

44
Test Workstation Hardware

• The DOS FDISK command is used to rebuild the hard
  disk drive prior to the installation.
• The hard disk can be re-built while installing
  Windows XP from the CD.

45
Installing Windows XP Professional

• Windows XP can be installed over a network using
  either a shared network drive or a set of
  bootable floppy disks.

Windows XP Professional Setup
46
Installing Windows XP Professional
List of existing partitions and unpartitioned
space on the computer
47
Installing Windows XP Professional
Formatting the new partition
48
Installing Windows XP Professional

• Windows XP requires the following inputs
• The users name and the organizations name.
• The 25-character product key code.
• The computer name and the password for the
  workstation administrator account.

49
Installing Windows XP Professional
Networking Settings
50
Installing Windows XP Professional

• Windows XP requires the following inputs
  (continued)
• The workgroup or the domain name.
• The user name and password of the user who is
  authorized to join the computer to the domain.

51
Installing Windows XP Professional
Windows XP Professional desktop
52
NTFS5

• NTFS 5 is more robust and the one you want to
  deploy whenever planning for Active Directory.
  Strongly consider using only NTFS partitions on
  production server machines! NTFS 5 brings new
  benefits to Windows Server systems, including
  disk quotas, file system encryption, dynamic
  volumes and remote storage capabilities.

53
NTFS Features

• Disk quotas are used to restrict the amount of
  space that network and system users are allowed
  to save to disk.
• file system encryption, which allows systems
  administrators to encrypt data in case it is
  stolen or intercepted by an unauthorized user.
• Dynamic volumes are also specific to NTFS 5.
  Dynamic volumes are used to add protection for
  your Windows Server 2003 system.
• Remote storage features supported by NTFS 5 to
  automatically off-load rarely used data to tape
  or other devices , but the files remain available
  to users because they haven't been removed from
  the machine -- it's seamless. As you can see,
  NTFS 5 brings a greater level of flexibility,
  security, data protection, increased scalability,
  and increased uptime.

GO BACK
54
Chapter Summary

• The Windows family of OSs includes a variety of
  products tailored for different environments.
• Windows 2000 is the most robust version of
  Windows.
• Proper planning and system preparation are
  critical.
• Windows 2000 installation requires more careful
  planning than does Windows 98.
• The Windows 98 and Windows 2000 installation
  processes are somewhat similar.
• Windows provides tools for troubleshooting
  installation problems.
• Additional tasks are required after installation
  is complete.
